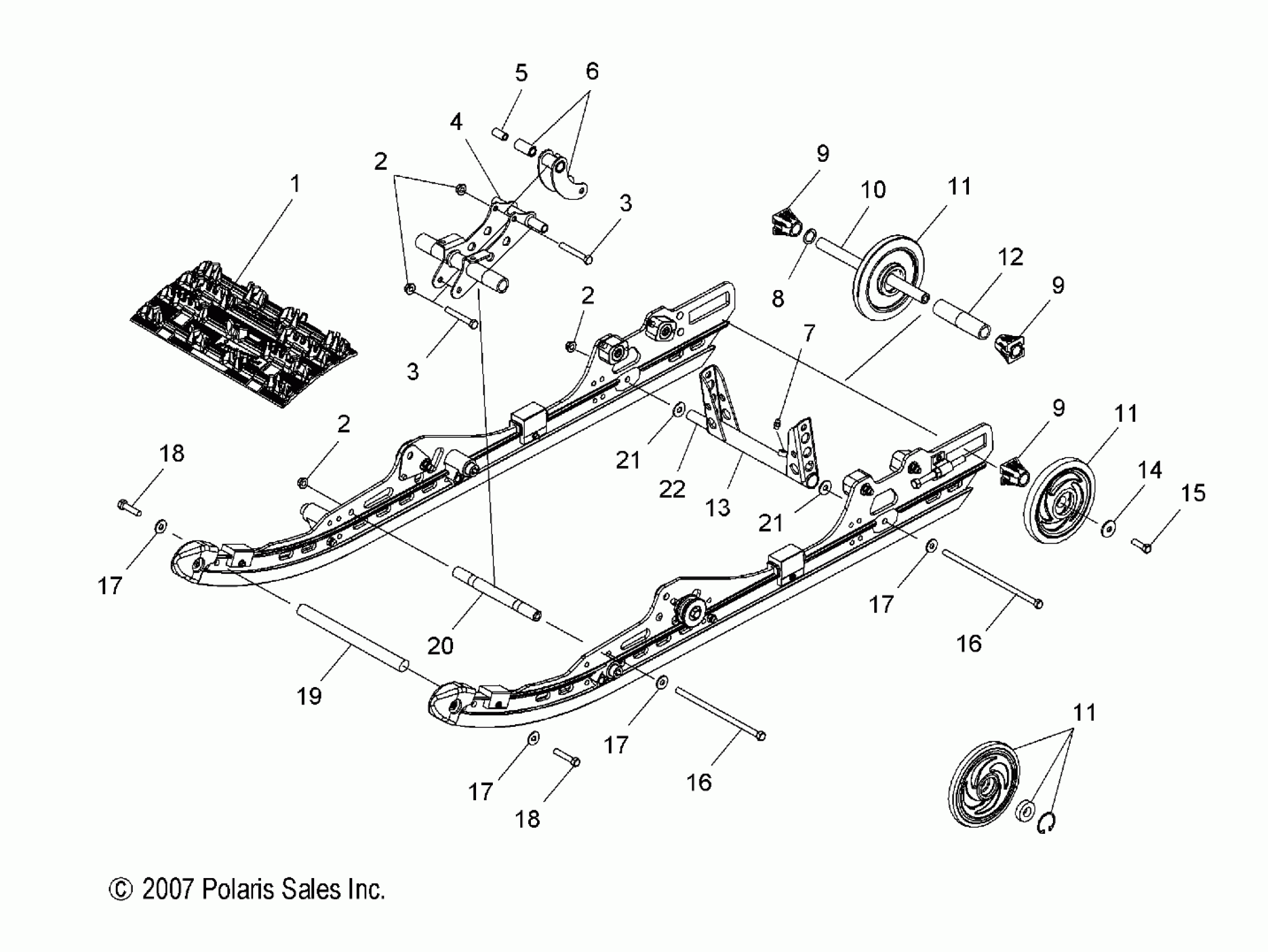

Polaris TURBO IQ - S11PP7FSL SUSPENSION, REAR - S11PP7FSL (49SNOWSUSPRR08IQTRBO) Diagram

#

Description
Price

1

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

1

CLIP-TRACK, FLAT

5251273

Unavailable

1

Kit, Track, 1.21, 1.25, Rip Saw

2875512

$699.00

2

NUT-3/8-24 FLG LOC

7547263

$3.17

2

NUT-3/8-24 FLG LOC

7547263

$3.17

2

NUT-3/8-24 FLG LOC

7547263

$3.17

3

SCREW

7515417

$4.76

3

SCREW

7515417

$4.76

4

Bracket, H, Black

1542465-329

Unavailable

5

SLEEVE

5333906

$15.87

6

Bushing

5134600

Unavailable

6

Asm., Pivot, Shock [Incl. Bushing]

1542095

Unavailable

7

FITTING-LUBRICATION 1/4-28

7080424

$4.76

8

BUSHING

7555918

$1.59

9

SPACER-IDLER

5432535

$11.90

9

SPACER-IDLER

5432535

$11.90

9

SPACER-IDLER

5432535

$11.90

10

SHAFT, IDLER

5020744

Unavailable

11

ASM., WHEEL, SCROLLED, BLACK

1590388-070

$72.60

11

BEARING

3514384

$19.84

11

RING-RETAINING

7710444

$8.73

11

ASM., WHEEL, SCROLLED, BLACK

1590388-070

$72.60

11

BEARING

3514384

$19.84

11

RING-RETAINING

7710444

$8.73

11

ASM., WHEEL, SCROLLED, BLACK

1590388-070

$72.60

11

BEARING

3514384

$19.84

11

RING-RETAINING

7710444

$8.73

12

SPACER-IDLER, LONG

5333285

$11.90

13

ARM, PIVOT, REAR, BLACK

1541928-067

$48.87

14

WASHER

7556130

$6.35

15

BOLT

7517731

$1.19

16

SCREW

7517921

$23.81

16

SCREW

7517921

$23.81

17

WASHER, FLAT

7556188

$3.17

17

WASHER, FLAT

7556188

$3.17

17

WASHER, FLAT

7556188

$3.17

17

WASHER, FLAT

7556188

$3.17

18

SCREW

7518005

$3.17

18

SCREW

7518005

$3.17

19

SHAFT

5134078

$38.71

20

SHAFT

5134517

$28.32

21

Washer, Flat

7555893

$0.79

21

Washer, Flat

7555893

$0.79

22

SHAFT

5333404

$24.27
