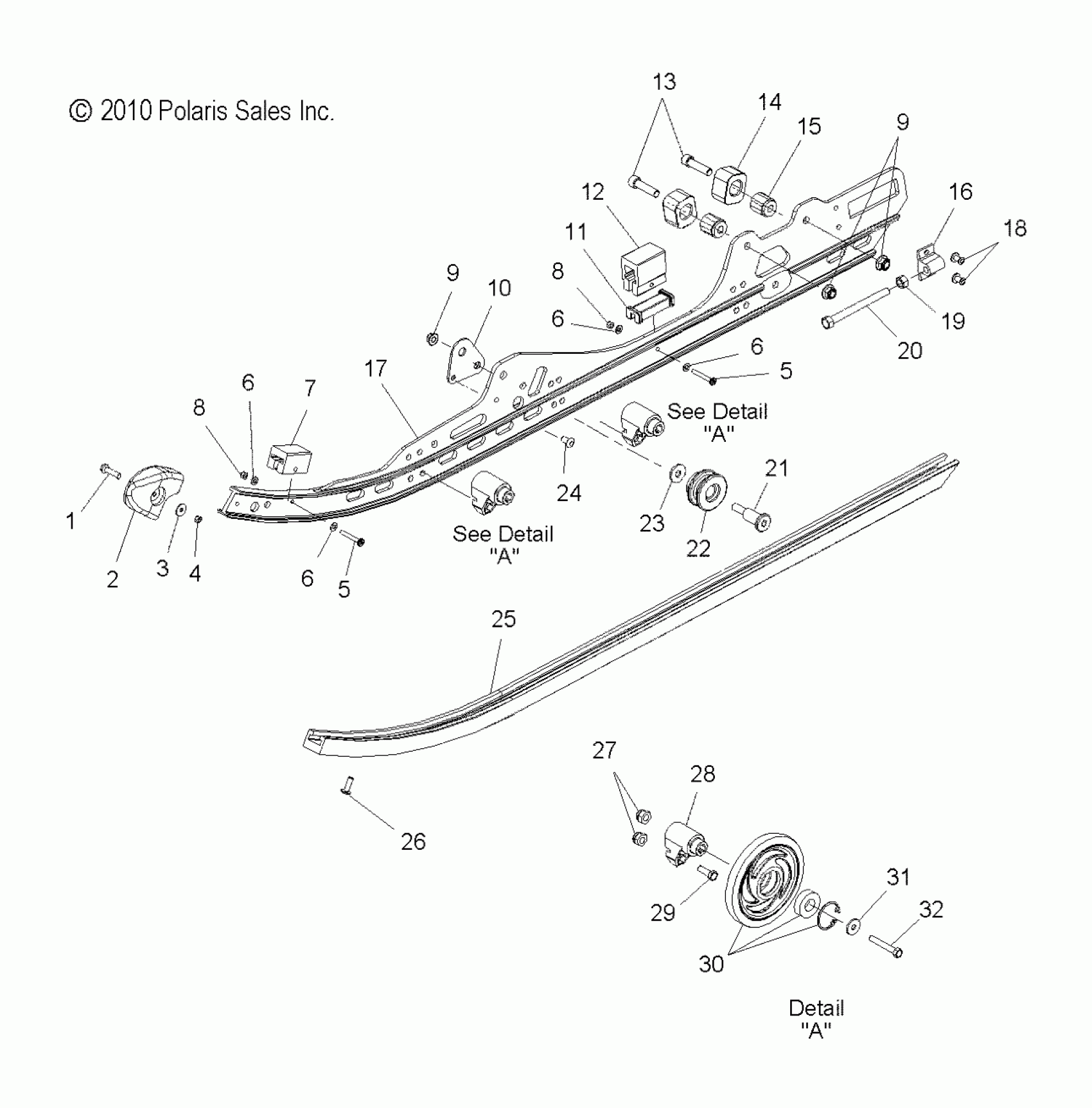

Polaris TURBO IQ - S11PP7FSL SUSPENSION, RAIL MOUNTING - S11PP7FSL (49SNOWSUSPRAIL11FSTIQ) Diagram

#

Description
Price

1

SCREW

7518993

$2.38

2

Cap, Rail Tip

5435527

Unavailable

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

5

Screw

7510504

$6.76

5

Screw

7510504

$6.76

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

7

BUMPER, JOUNCE, FRONT

5521499

$8.89

8

Nut, Nylok

7541925

$0.79

8

Nut, Nylok

7541925

$0.79

9

NUT-3/8-24 FLG LOC

7547263

$3.17

9

NUT-3/8-24 FLG LOC

7547263

$3.17

10

BRACKET, RAIL REINFORCEMENT

5248414

$36.41

11

LINER-BUMPER

5432946

$10.51

12

BUMPER, JOUNCE, REAR

5521498

$8.89

13

BOLT

7515537

$6.04

14

BUMPER, PIVOT ARM

5410925

$12.94

15

MOUNT, BUMPER

5131113

$28.32

16

BLOCK, IDLER BOLT ADJUSTING

5130530

$32.37

17

Asm., Rail, 121, RH [Incl. 1-8,11,12,16,18]

1542791

$554.99

17

Asm., Rail, 121, LH [Incl. 1-8,11,12,16,18]

1542790

$609.99

18

RIVET

7621501

$2.38

19

NUT

7542404

$1.59

20

SCREW

7517227

$7.14

21

Screw

7518359

$5.99

22

ROLLER, SPRING

5432982

$10.51

23

WASHER

7555983

$0.79

24

RIVET

7661845

$0.82

25

SLIDER

5521632

$39.98

26

Screw

7515199

$1.19

27

NUT-5/16-18 NYLOK-Y

7542324

$0.79

28

BLOCK, MOUNT, WHEEL

5631446

$24.27

29

BOLT

7515317

$4.76

30

ASM., WHEEL, SCROLLED, BLACK

1590387-070

$56.65

30

BEARING [1 PER WHEEL]

3514384

$19.84

30

RING-RETAINING [1 PER WHEEL]

7710444

$8.73

31

Washer, Spring

7556179

$7.99

32

Screw

7515346

$5.56
