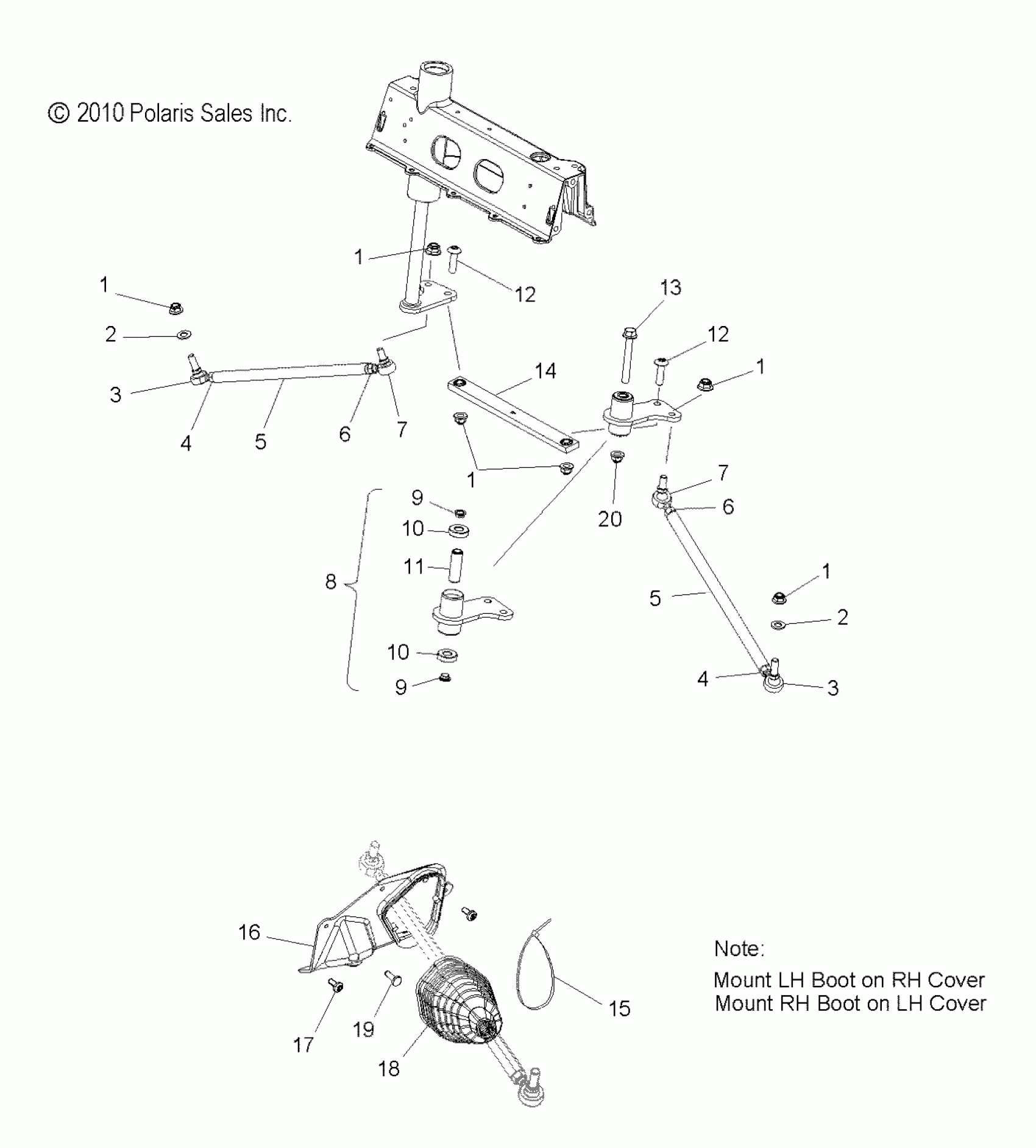

Polaris TURBO IQ - S11PP7FSL STEERING, LOWER and TIE RODS - S11PP7FSL (49SNOWSTEERINGLWR11FSTSBLX) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.17

1

NUT-3/8-24 FLG LOC

7547263

$3.17

1

NUT-3/8-24 FLG LOC

7547263

$3.17

1

NUT-3/8-24 FLG LOC

7547263

$3.17

1

NUT-3/8-24 FLG LOC

7547263

$3.17

2

Washer, Flat

7555806

$0.79

2

Washer, Flat

7555806

$0.79

3

ROD END, RH

7061164

$52.60

3

ROD END, RH

7061164

$52.60

4

NUT

7542401

$2.38

4

NUT

7542401

$2.38

5

TIE ROD

5334667

$40.46

5

TIE ROD

5334667

$40.46

6

NUT, LH

7542424

$0.79

6

NUT, LH

7542424

$0.79

7

ROD END, LH

7061163

$52.60

7

ROD END, LH

7061163

$52.60

8

ASM., IDLER ARM

1821419

Unavailable

9

BUSHING, REDUCER

5132106

$7.94

9

BUSHING, REDUCER

5132106

$7.94

10

Bearing, Ball

3514320

$15.87

10

Bearing, Ball

3514320

$15.87

11

SPACER, TUBE

5135452

$34.99

12

SCREW

7518372

$2.99

12

SCREW

7518372

$2.99

13

SCREW

7518277

$19.99

14

LINK, FIXED

7061152

$60.70

15

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

16

COVER, TIE ROD BOOT, LH

5436574

$11.32

16

COVER, TIE ROD BOOT, RH

5436575

$11.32

17

SCREW

7518176

$4.76

18

BOOT, TIE ROD, RH

5413794

$33.87

18

BOOT, TIE ROD, LH

5413793

$33.87

19

Fastener, Clip, Push-On

7670125

$7.99

20

Nut, Flange

7547180

$2.38
