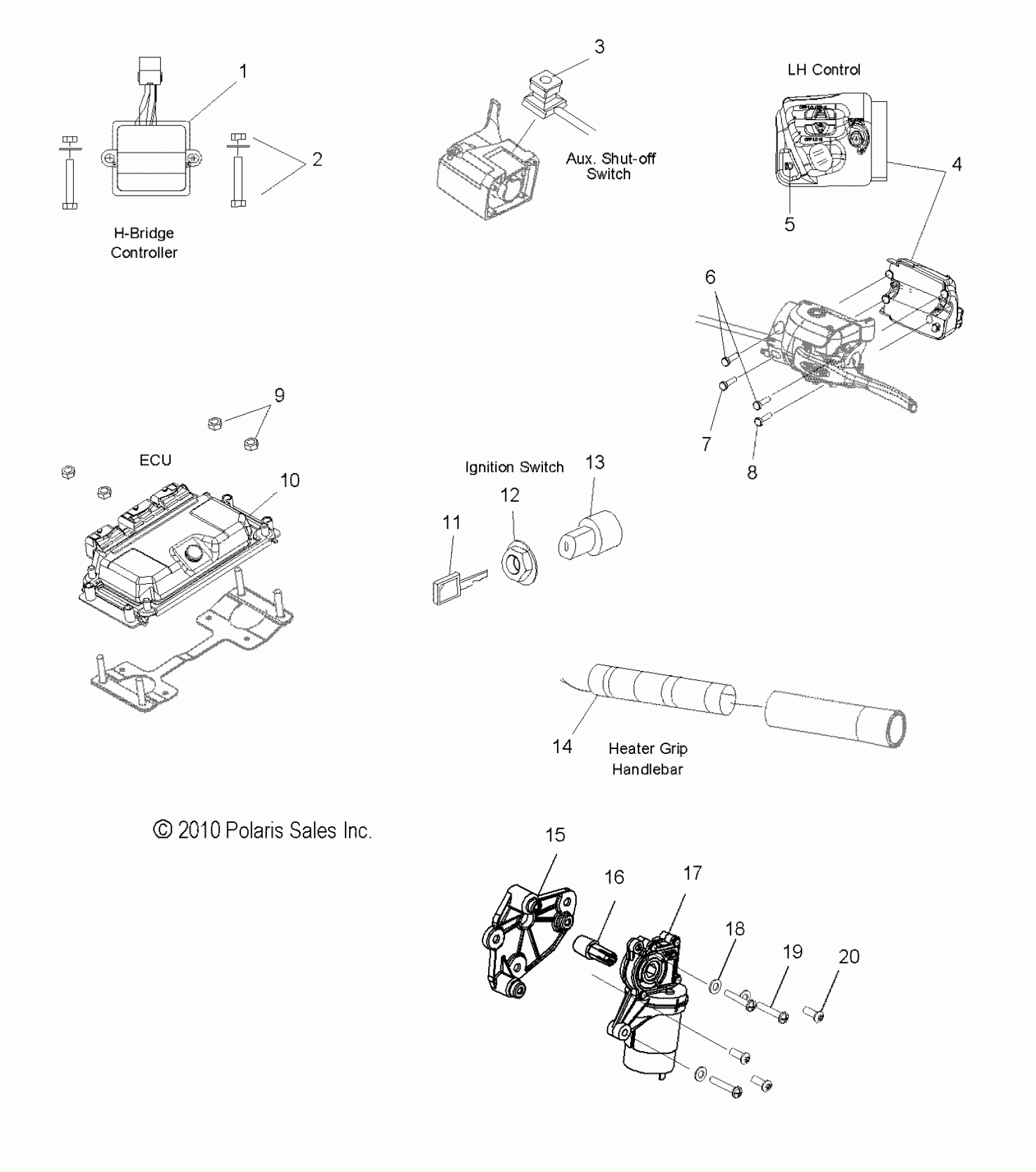

Polaris TURBO IQ - S11PP7FSL ELECTRICAL, SWITCHES and CONTROLS - S11PP7FSL (49SNOWELECT11FSTIQ) Diagram

KIT, H-BRIDGE CONTROLLER

2203639

$150.06

Nut, Nylok

7541925

$0.79

WSHR-.194X.475X.049 ZTB

7555746

$0.79

Screw

7517263

$3.97

Switch, Auxillary Shut-Off/Power

4011280

$105.22

Asm., Control, LH

2010290

$80.94

Button, Switch, HI/LO, LH Control

5433291

$34.99

Screw

7517441

$2.38

Screw

7512078

$1.19

Screw

7517566

$3.97

Nut, Nylok

7542122

$1.19

ECU

4012259

Unavailable

KEY W/CAP NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A,B,C,D, OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O

5410611

Unavailable

Nut, Ignition

7547035

$8.73

Kit, Ignition Switch

2200358

$76.89

Heater, Grip, Lo/Med/Hi, Short

2410836

$44.51

BRACKET, REVERSE ACTUATOR MOUNT

5436152

$32.37

COUPLER, REVERSE ACTUATOR

5436807

$314.99

Asm., Actuator [Incl. 15,16]

1332477

$314.99

WASHER

7555727

$0.40

Screw

7518046

Unavailable

SCREW

7512024

$4.76
