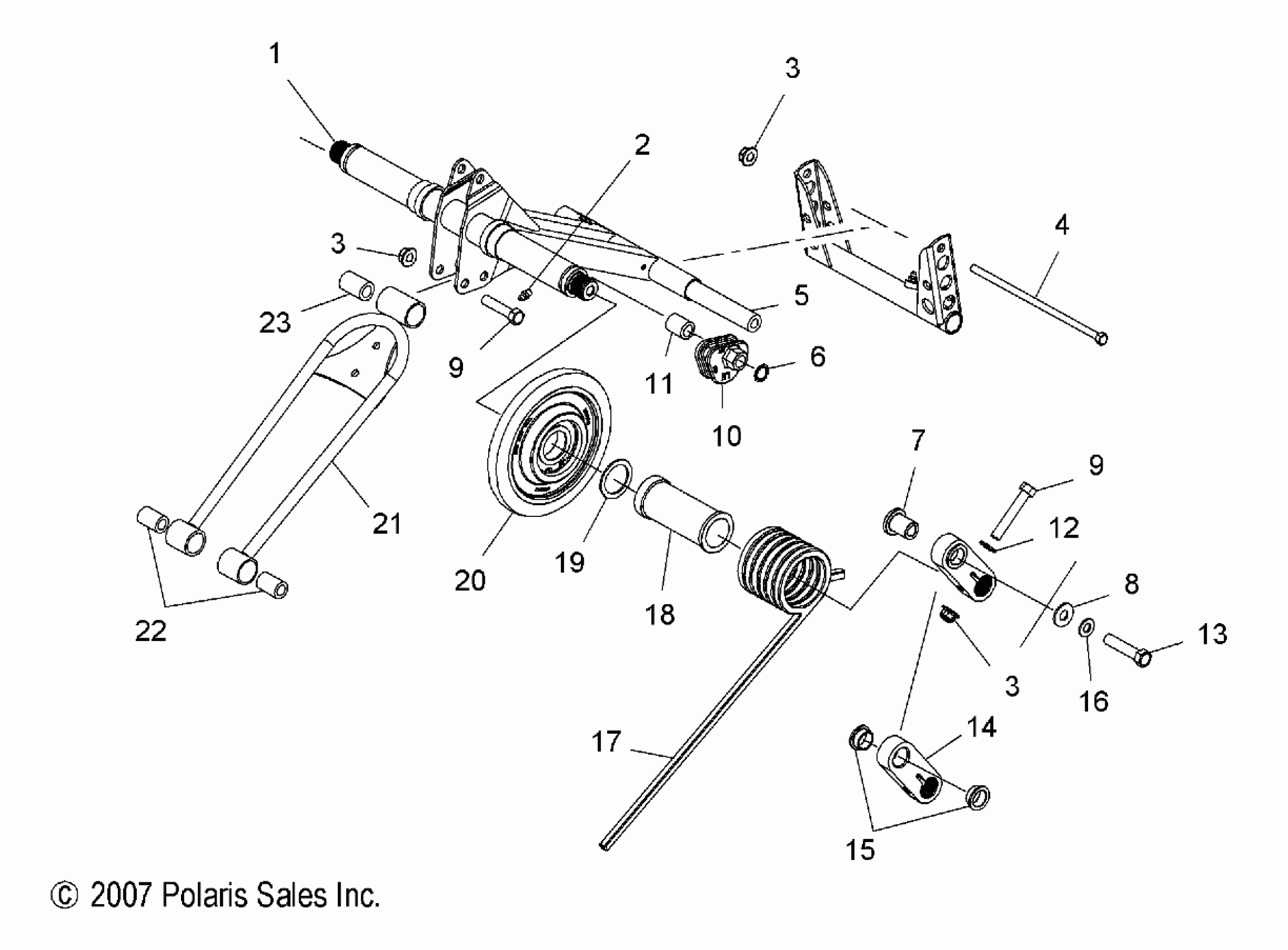

Polaris TURBO IQ LXT - S11PT7FSL SUSPENSION, TORQUE ARM, REAR - S11PT7FSL (49SNOWTORQUEREAR08600TRG) Diagram

#

Description
Price

1

ARM, TORQUE, REAR, BLACK

1542429-329

$474.99

2

Fitting, Lubrication

7081631

$9.70

3

NUT-3/8-24 FLG LOC

7547263

$3.17

3

NUT-3/8-24 FLG LOC

7547263

$3.17

3

NUT-3/8-24 FLG LOC

7547263

$3.17

4

SCREW

7518241

$35.71

5

SHAFT

5133973

$24.27

6

CLIP-PUSH ON

7080394

$2.38

7

SHAFT, RETAINER

5136180

Unavailable

8

Washer, Flat

7555984

$2.38

9

Screw

7515415

$1.19

9

Screw

7515415

$1.19

10

ROLLER-SPRING,TRI-ADJ,RH

5434590

$21.99

10

ROLLER-SPRING,TRI-ADJ,LH

5434589

$36.41

11

SPACER

5334285

$2.38

12

WASHER, FLAT

7556188

$3.17

13

SCREW

7512589

$1.59

14

ASM. ARM [INCL. 15]

1541461

$119.99

15

BUSHING

3514331

$19.84

16

WASHER-LOCK, 7/16-B

7552614

$1.59

17

SPRING, TORSION, .421, 18#, BLACK, LH [OPT]

7043686-329

$284.99

17

SPRING, TORSION, .405, 16#, BLACK, RH [STD]

7043685-329

Unavailable

17

SPRING, TORSION, .421, 18#, BLACK, RH [OPT]

7043687-329

$284.99

17

SPRING, TORSION, .405, 16#, BLACK, LH [STD]

7043684-329

$129.99

18

SLEEVE-TORSION SPRING

5434989

$2.74

19

Washer

7555939

$3.97

20

RING-RETAINING

7710486

$13.75

20

BEARING

3514445

$76.89

20

ASM., WHEEL

1590001

$76.89

21

ROD, SHOCK, BLACK

1542330-329

$106.49

22

BUSHING

5135043

$6.35

23

BUSHING

5134601

$15.87
