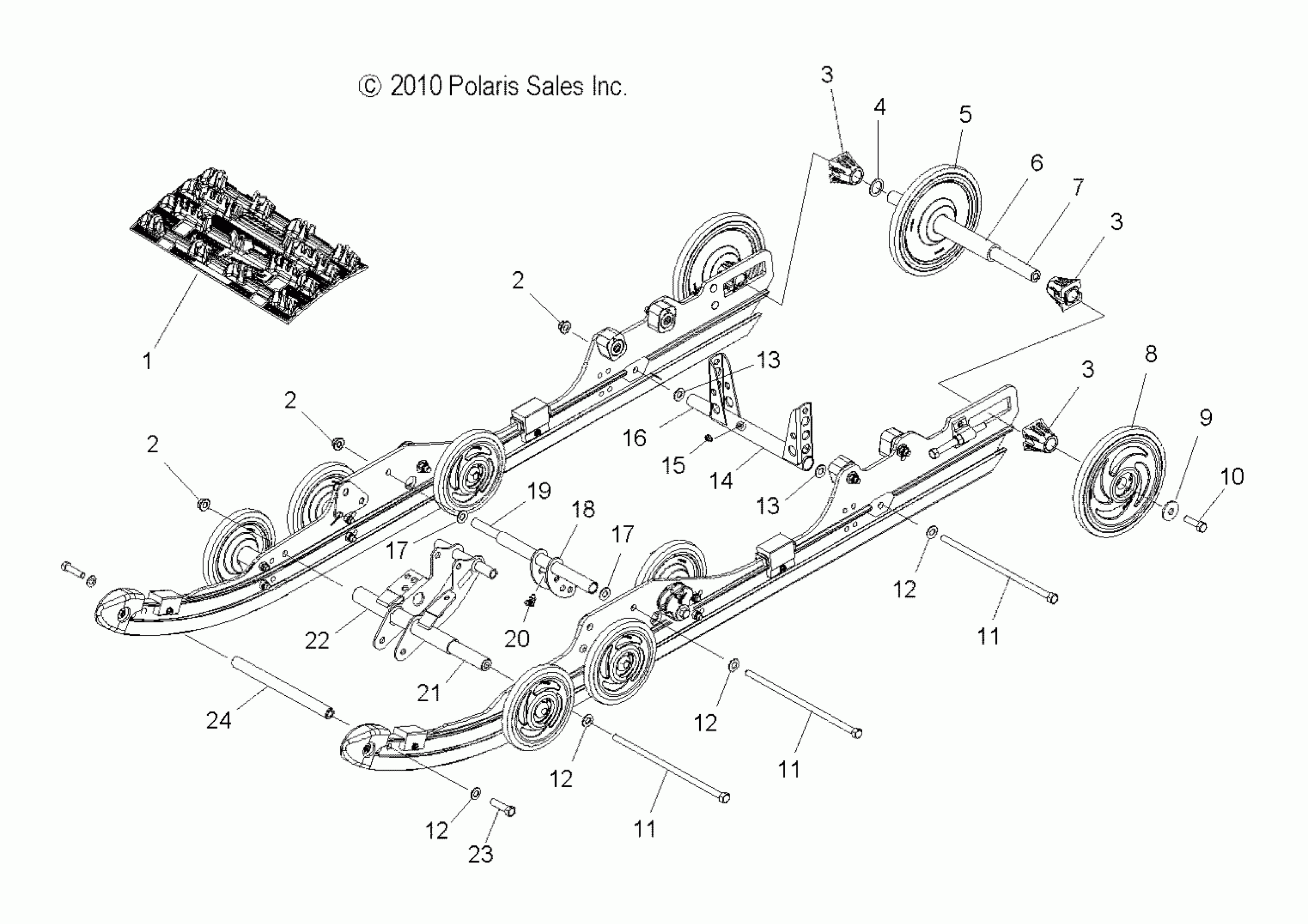

Polaris TURBO IQ LXT - S11PT7FSL SUSPENSION, REAR - S11PT7FSL (49SNOWSUSPRR11FSTTRG) Diagram

#

Description
Price

1

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

1

TRACK, 136, 1 INCH, HACKSAW

5413318

$769.00

2

NUT-3/8-24 FLG LOC

7547263

$3.17

2

NUT-3/8-24 FLG LOC

7547263

$3.17

2

NUT-3/8-24 FLG LOC

7547263

$3.17

3

SPACER-IDLER

5432535

$11.90

3

SPACER-IDLER

5432535

$11.90

3

SPACER-IDLER

5432535

$11.90

4

BUSHING

7555918

$1.59

5

ASM., WHEEL, SCROLLED, BLACK

1590388-070

$72.60

5

BEARING

3514384

$19.84

5

RING-RETAINING

7710444

$8.73

6

SPACER-IDLER, LONG

5333285

$11.90

7

SHAFT, IDLER

5020744

Unavailable

8

BEARING

3514384

$19.84

8

RING-RETAINING

7710444

$8.73

8

ASM., WHEEL, SCROLLED, BRIGHT SILVER

1590388-244

$72.60

9

WASHER, BELLE

7556130

$6.35

10

BOLT

7517731

$1.19

11

SCREW

7517921

$23.81

11

SCREW

7517921

$23.81

11

SCREW

7517921

$23.81

12

WASHER, FLAT

7556188

$3.17

12

WASHER, FLAT

7556188

$3.17

12

WASHER, FLAT

7556188

$3.17

12

WASHER, FLAT

7556188

$3.17

13

Washer, Flat

7555893

$0.79

13

Washer, Flat

7555893

$0.79

14

ARM, PIVOT, REAR, BLACK

1541928-067

$48.87

15

Fitting, Lubrication

7081631

$9.70

16

SHAFT

5333404

$24.27

17

WASHER

7556242

$2.38

17

WASHER

7556242

$2.38

18

ARM, PIVOT, SHOCK, BLACK

1542122-067

Unavailable

19

TUBE

5334162

$28.32

20

FITTING, ZERK

7080510

$5.56

21

SHAFT

5134517

$28.32

22

H-BRACKET, BLACK

1542465-329

Unavailable

23

SCREW

7518005

$3.17

24

SHAFT

5134078

$38.71
