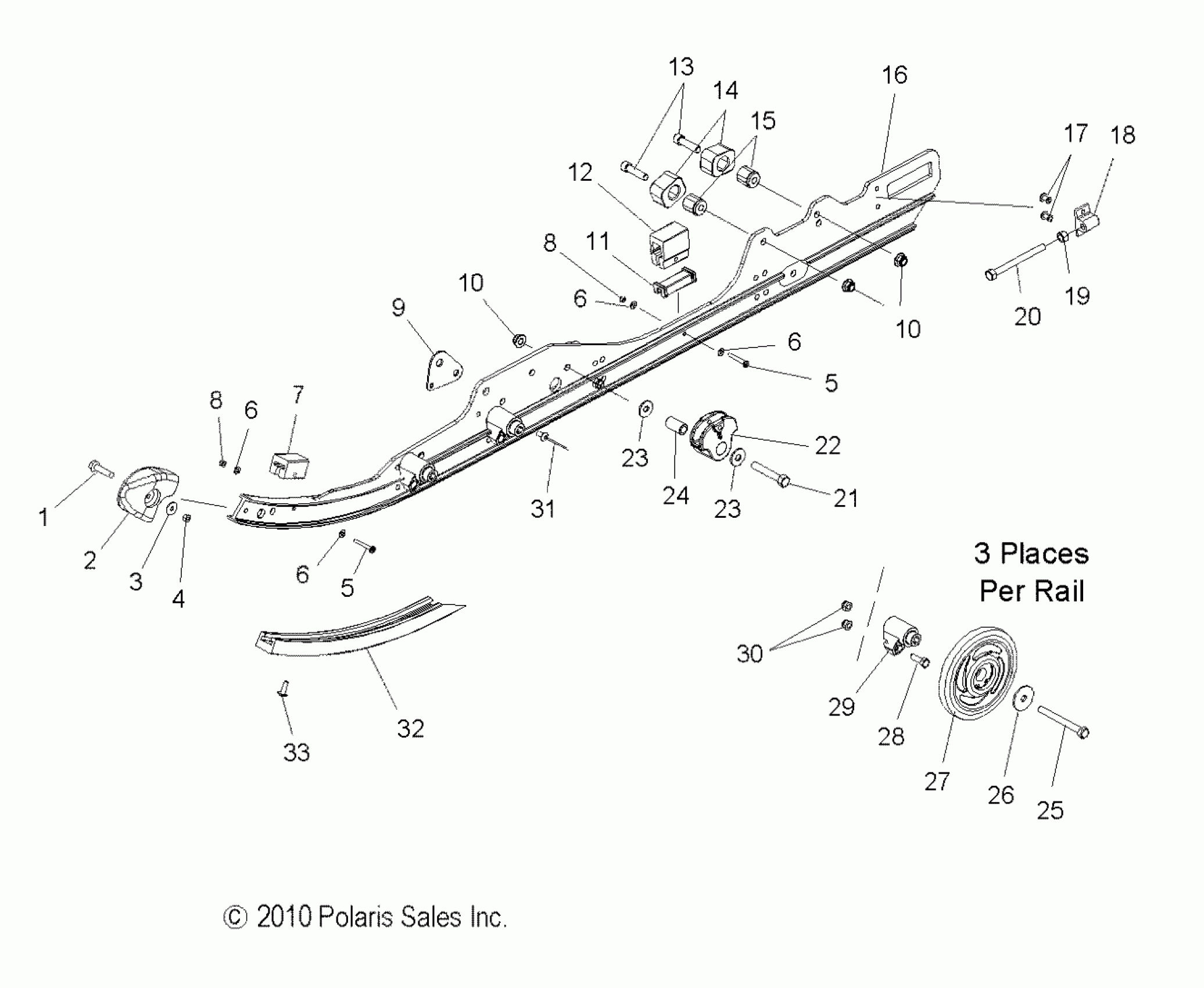

Polaris TURBO IQ LXT - S11PT7FSL SUSPENSION, RAIL MOUNTING - S11PT7FSL (49SNOWSUSPRAIL11FSTTRG) Diagram

#

Description
Price

1

SCREW

7518993

$2.38

2

CAP, RAIL TIP

5438374

$20.22

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

5

Screw

7510504

$6.76

5

Screw

7510504

$6.76

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

7

BUMPER, JOUNCE, FRONT

5521499

$8.89

8

Nut, Nylok

7541925

$0.79

8

Nut, Nylok

7541925

$0.79

9

BRACKET, RAIL REINFORCEMENT

5248414

$36.41

10

NUT-3/8-24 FLG LOC

7547263

$3.17

10

NUT-3/8-24 FLG LOC

7547263

$3.17

11

LINER-BUMPER

5432946

$10.51

12

BUMPER, JOUNCE, REAR

5521498

$8.89

13

BOLT

7515537

$6.04

14

BUMPER, PIVOT ARM

5410925

$12.94

15

MOUNT, BUMPER

5131113

$28.32

16

ASM., RAIL, RH [INCL. 5-8,11,12,17,18]

1542783

Unavailable

16

ASM., RAIL, LH [INCL. 5-8,11,12,17,18]

1542782

Unavailable

17

RIVET

7621501

$2.38

18

BLOCK, IDLER BOLT ADJUSTING

5130530

$32.37

19

NUT

7542404

$1.59

20

SCREW

7517227

$7.14

21

Screw

7515415

$1.19

22

GUIDE, SPRING, SQUARE

5434334

$32.37

23

WASHER

7555983

$0.79

23

WASHER

7555983

$0.79

24

SPACER

5333948

$6.35

25

Screw

7515346

$5.56

26

WASHER, SPRING

7556387

$1.59

27

ASM., WHEEL, SCROLLED, BLACK

1590387-070

$56.65

27

BEARING [1 PER WHEEL]

3514384

$19.84

27

RING-RETAINING [1 PER WHEEL]

7710444

$8.73

28

BOLT

7515317

$4.76

29

BLOCK, MOUNT, WHEEL

5631446

$24.27

30

NUT-5/16-18 NYLOK-Y

7542324

$0.79

31

RIVET

7661845

$0.82

32

SLIDER

5521633

$40.46

33

Screw

7515199

$1.19
