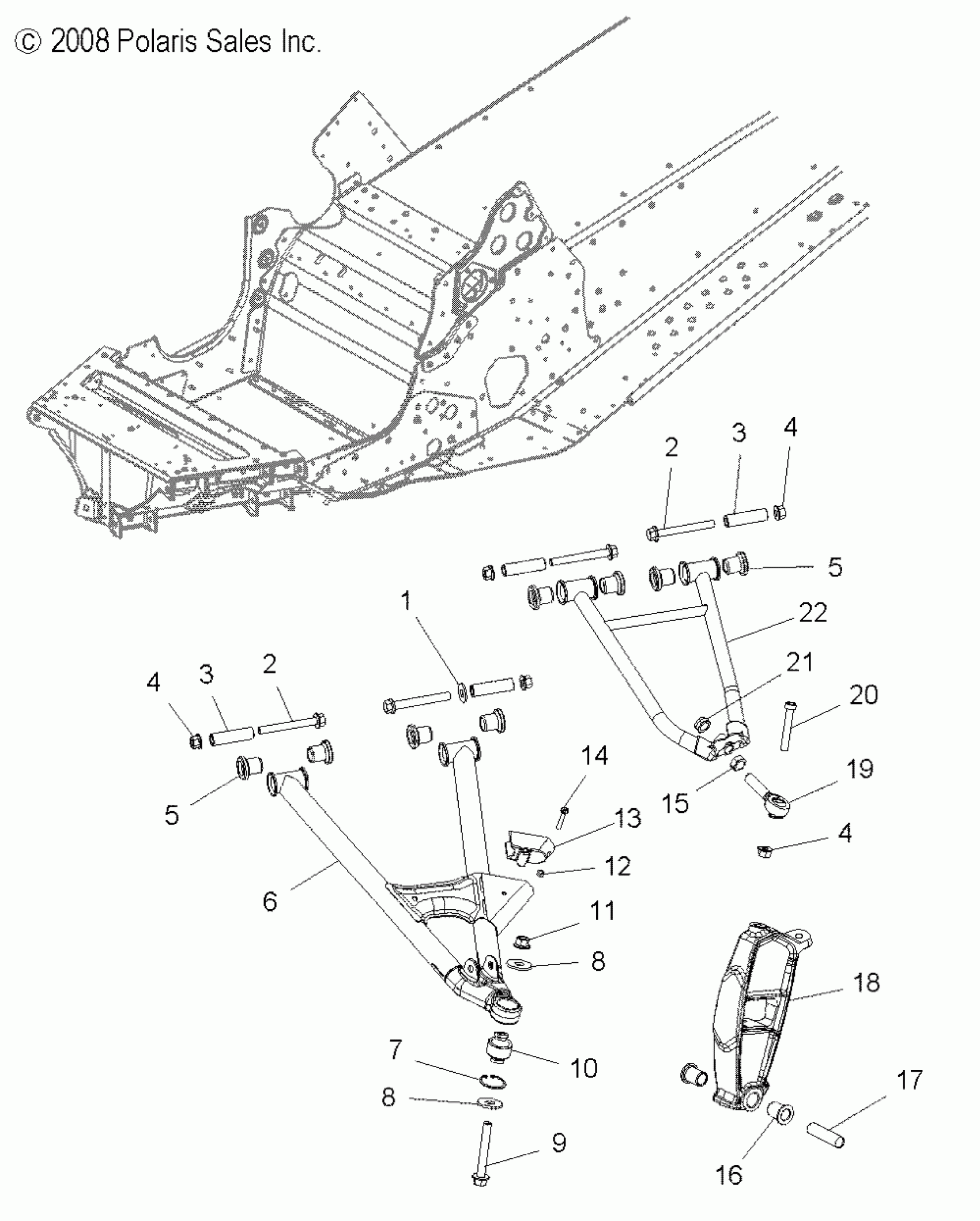

Polaris TURBO IQ LXT - S11PT7FSL SUSPENSION, FRONT ASM. - S11PT7FSL (49SNOWSUSPFRT09FSTRG) Diagram

#

Description
Price

1

Washer, Flat

7555893

$0.79

2

SCREW

7518384

$2.19

2

SCREW

7518384

$2.19

3

SHAFT, PIVOT

5135943

$13.54

3

SHAFT, PIVOT

5135943

$13.54

4

NUT, FLANGED

7547180

$2.38

4

NUT, FLANGED

7547180

$2.38

4

NUT, FLANGED

7547180

$2.38

5

BUSHING, PIVOT

5434932

$6.35

5

BUSHING, PIVOT

5434932

$6.35

6

KIT, LOWER CONTROL ARM, BLACK, RH [INCL. 3-7,10-14]

2203022-067

$309.99

6

KIT, LOWER CONTROL ARM, BLACK, LH [INCL. 3-7,10-14]

2203021-067

$309.99

7

RING, RETAINING

7710539

$2.38

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

9

SCREW

7518478

$4.76

10

KIT, SPHERICAL BEARING, LOWER [INCL. 7]

2203107

$52.37

11

NUT

7547344

$0.79

12

Nut, Nylok

7541925

$0.79

13

SLIDE, SWAY BAR

5435522

$24.27

14

SCREW

7518708

$3.17

15

Nut, Jam

7542711

$2.38

16

BUSHING-SKI PIVOT

5438460

$15.87

17

BUSHING, PIVOT

5010158

$19.99

18

ASM., SPINDLE, LH [INCL. 16]

1823723

Unavailable

18

ASM., SPINDLE, RH [INCL. 16]

1823724

$354.99

19

ROD END

7061145

$52.60

20

SCREW

7518428

$4.76

21

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.19

22

KIT, UPPER CONTROL ARM, BLACK, RH [INCL. 3-5,15,19,21]

2203020-067

$224.99

22

KIT, UPPER CONTROL ARM, BLACK, LH [INCL. 3-5,15,19,21]

2203019-067

$224.99
