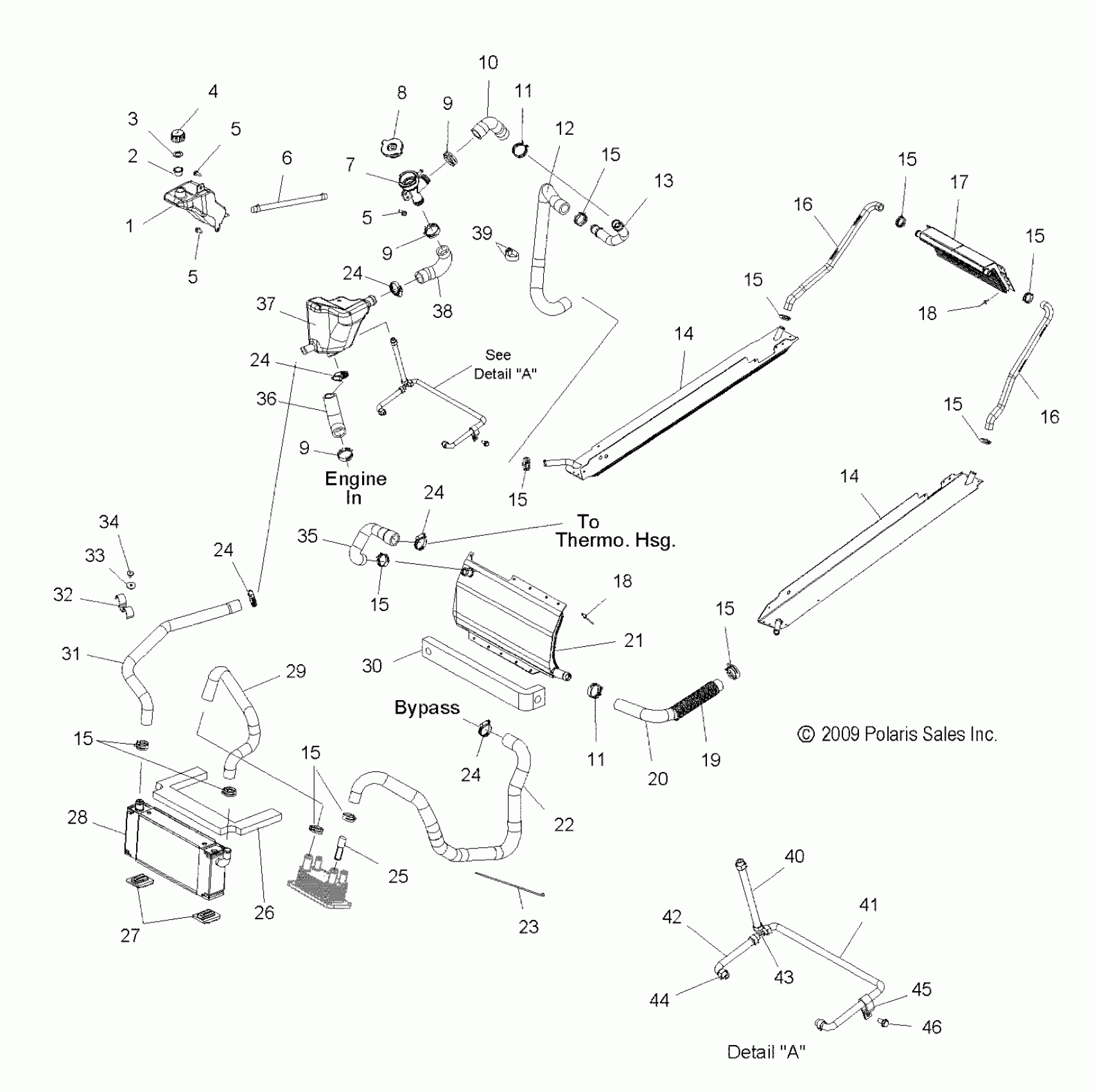

Polaris TURBO IQ LXT - S11PT7FSL ENGINE, COOLING SYSTEM - S11PT7FSL (49SNOWCOOLING10FSTTRG) Diagram

#

Description
Price

1

BOTTLE, COOLANT

5436215

Unavailable

2

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

3

GASKET-OVERFLOW CAP

5810279

$2.41

4

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

5

Screw

7512095

$4.76

5

Screw

7512095

$4.76

5

Screw

7512095

$4.76

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

6

Line, Fuel

8450003-1525

$89.99

7

FILLER, REMOTE

5433364

$48.40

8

DECAL, WATER BOTTLE CAP

7170063

Unavailable

8

Cap, Pressure

1240508

$48.56

9

CLAMP, SPRING BAND

7080844

$10.32

9

CLAMP, SPRING BAND

7080844

$10.32

9

CLAMP, SPRING BAND

7080844

$10.32

10

HOSE, TUBE/FILLER

5413568

Unavailable

11

CLAMP, SPRING BAND

7080843

$3.97

11

CLAMP, SPRING BAND

7080843

$3.97

12

HOSE, GRIPPER/TUBE

5412781

Unavailable

13

TUBE, GRIPPER/FILLER

5335651

Unavailable

14

COOLER, RUNNING BOARD, RH

1240353

Unavailable

14

COOLER, RUNNING BOARD, LH

1240352

Unavailable

14

COOLER, RUNNING BOARD, RH

1240353

Unavailable

14

COOLER, RUNNING BOARD, LH

1240352

Unavailable

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

16

HOSE, RUNNING BOARD/REAR COOLER, LH

5412779

Unavailable

16

HOSE, RUNNING BOARD/REAR COOLER, RH

5412780

Unavailable

16

HOSE, RUNNING BOARD/REAR COOLER, LH

5412779

Unavailable

16

HOSE, RUNNING BOARD/REAR COOLER, RH

5412780

Unavailable

17

COOLER, REAR

1240188

$229.37

18

RIVET-3/16-.090-.290

7661637

Unavailable

18

RIVET-3/16-.090-.290

7661637

Unavailable

19

CONDUIT, FLEX

5521287-15

$10.51

20

HOSE, CENTER COOLER/GRIPPER, LH

5412785

$12.13

21

COOLER, BULKHEAD

2520575

$244.99

22

HOSE, ENGINE OUT/OIL COOLER

5413539

Unavailable

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

25

RESTRICTOR, COOLANT

5136216

Unavailable

26

MOUNT, RADIATOR, FOAM

5812496

$9.70

27

MOUNT, RADIATOR

5412513

$8.08

28

ASM., RADIATOR

1240580

$534.99

29

HOSE, OIL COOLER/RADIATOR

5414050

Unavailable

30

SEAL, FRONT CLOSEOFF COOLER

5812845

$12.13

31

HOSE, RESERVOIR/RADIATOR

5414051

Unavailable

32

CLAMP, DOUBLE HOSE

7080898

Unavailable

33

WASHER

7556044

$3.97

34

RIVET

7621467

$1.19

35

HOSE, ENGINE OUT/CENTER COOLER

5412984

Unavailable

36

HOSE, RESERVOIR/ENGINE IN

5413567

$32.37

37

FOIL, COOLANT RESERVOIR

5813414

$29.99

37

RESERVOIR, COOLANT

5437634

Unavailable

38

HOSE, FILLER/RESERVOIR

5413534

$64.99

39

CLAMP-HOSE

7080807

$9.52

39

Nut

7542153

$1.59

40

Line, Fuel

8450040-600

$72.84

41

HOSE, HEAD BLEED, PTO

5413817

$28.32

42

HOSE, HEAD BLEED, MAG

5413816

$3.99

43

FITTING, TEE

7052468

Unavailable

44

HOSE CLAMP, RED

7080003

$1.19

45

CLAMP, DOUBLE TUBE

7081364

$1.40

46

Screw

7517915

$7.14
