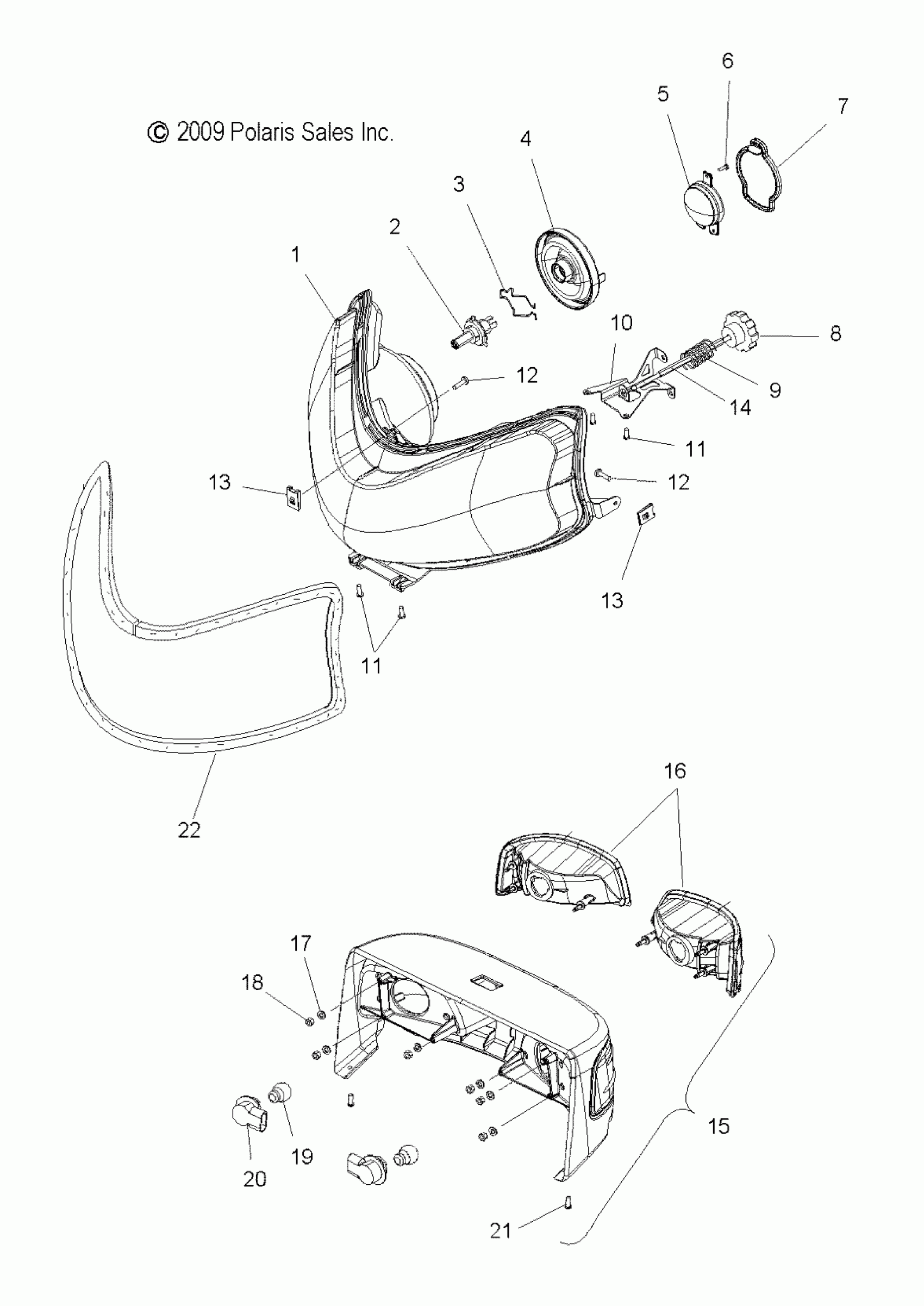

Polaris TURBO IQ LXT - S11PT7FSL ELECTRICAL, HEADLIGHT and TAILLIGHT - S11PT7FSL (49SNOWHEADLGHT10600TRG) Diagram

#

Description
Price

1

ASM., HEADLIGHT [INCL. 2-11,14]

2410397

$219.99

2

BULB, HEADLIGHT

2870448

$24.99

3

BAIL, WIRE

5247526

$19.84

4

BOOT, LARGE

5412479

$11.11

5

DOME, HEADLIGHT, CHROME

5435560

Unavailable

6

SCREW

7518350

Unavailable

7

COVER, DOME

5412611

$28.32

8

KNOB

5435247

Unavailable

9

SPRING, COMPRESSION

7042323

$24.27

10

RETAINER, HEADLIGHT ADJUSTER

5248391

$8.73

11

Screw

7518577

$2.38

11

Screw

7518577

$2.38

12

SCREW

7512068

$1.64

12

SCREW

7512068

$1.64

13

NUT, U-TYPE

7670112

$2.38

13

NUT, U-TYPE

7670112

$2.38

14

ROD, HEADLIGHT ADJUST

5136116

Unavailable

15

ASM., TAILLIGHT, BLACK [INCL. 16-20, HOUSING]

2410324-070

$223.79

16

ASM., REFLECTOR, LH

2410327

Unavailable

16

ASM., REFLECTOR, RH

2410328

$53.17

17

Washer, Flat

7556088

$4.76

18

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

19

BULB, TAILLIGHT

4010764

$20.22

20

Socket, Bulb

4010767

$36.41

21

FASTENER, PUSH-ON CLIP

7670125

$7.99

22

FOAM, HEADLIGHT SEAL

5813420

$28.32
