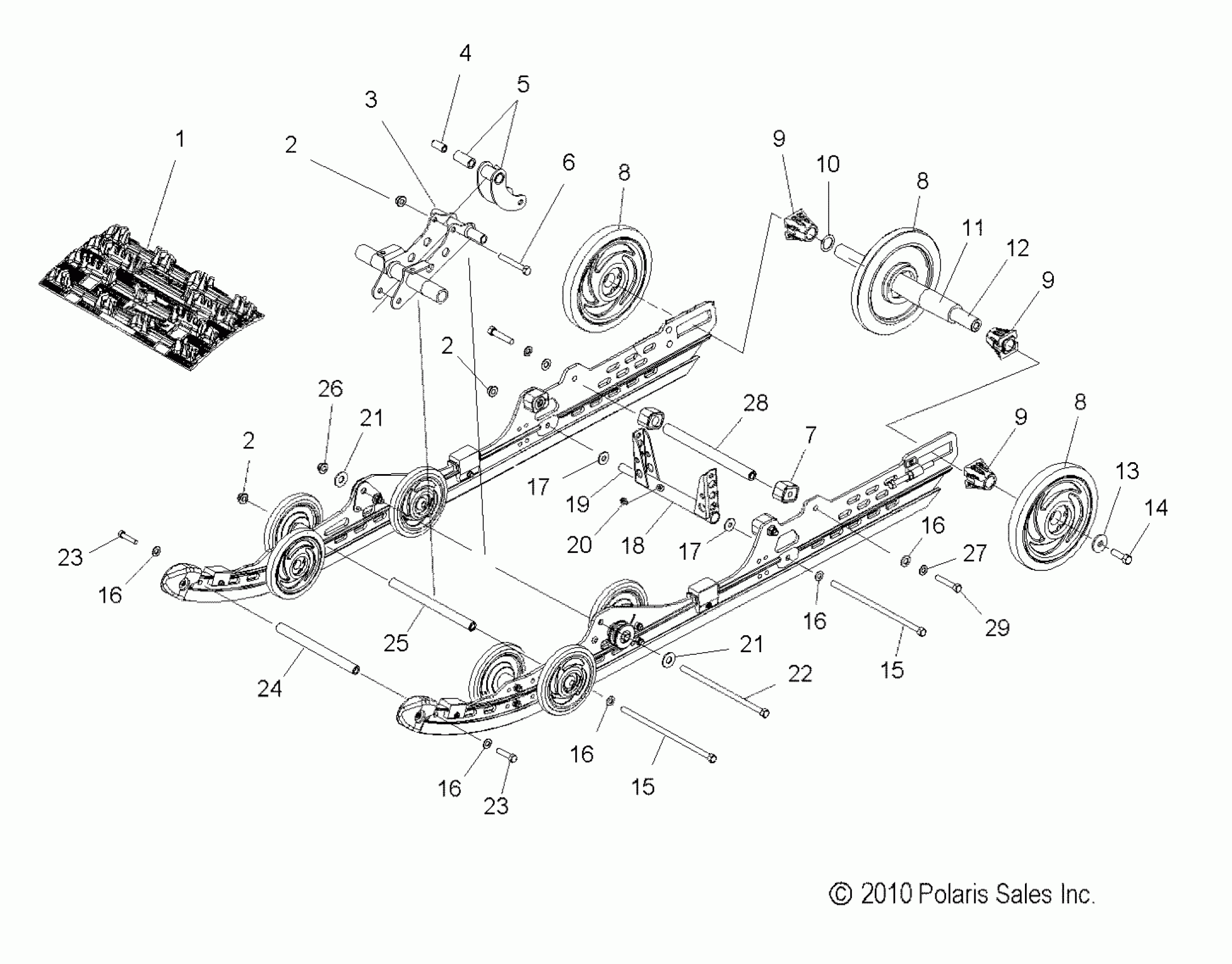

Polaris TURBO IQ LX - S11PD7FSL SUSPENSION, REAR - S11PD7FSL (49SNOWSUSPRR11FSTSBLX) Diagram

#

Description
Price

1

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

1

Track, 136 Inch, 1.00, Hacksaw

5413318

$769.00

2

NUT-3/8-24 FLG LOC

7547263

$3.17

2

NUT-3/8-24 FLG LOC

7547263

$3.17

2

NUT-3/8-24 FLG LOC

7547263

$3.17

3

H-BRACKET, BLACK

1542465-329

Unavailable

4

SLEEVE

5333906

$15.87

5

Bushing

5134600

Unavailable

5

Asm., Shock Pivot

1542095

Unavailable

6

SCREW

7515417

$4.76

7

Bumper, Pivot, Laminate

5413387

$31.75

8

Asm., Wheel, Black

1590388-070

$72.60

8

BEARING [1 PER WHEEL]

3514384

$19.84

8

RING-RETAINING [1 PER WHEEL]

7710444

$8.73

8

Asm., Wheel, Black

1590388-070

$72.60

8

BEARING [1 PER WHEEL]

3514384

$19.84

8

RING-RETAINING [1 PER WHEEL]

7710444

$8.73

8

Asm., Wheel, Black

1590388-070

$72.60

8

BEARING [1 PER WHEEL]

3514384

$19.84

8

RING-RETAINING [1 PER WHEEL]

7710444

$8.73

9

SPACER-IDLER

5432535

$11.90

9

SPACER-IDLER

5432535

$11.90

9

SPACER-IDLER

5432535

$11.90

10

BUSHING

7555918

$1.59

11

SPACER-IDLER, LONG

5333285

$11.90

12

SHAFT, IDLER

5020744

Unavailable

13

WASHER, BELLE

7556130

$6.35

14

BOLT

7517731

$1.19

15

SCREW

7517921

$23.81

15

SCREW

7517921

$23.81

16

WASHER, FLAT

7556188

$3.17

16

WASHER, FLAT

7556188

$3.17

16

WASHER, FLAT

7556188

$3.17

16

WASHER, FLAT

7556188

$3.17

16

WASHER, FLAT

7556188

$3.17

17

Washer, Flat

7555893

$0.79

17

Washer, Flat

7555893

$0.79

18

Arm, Rear Pivot, Black

1541928-067

$48.87

19

SHAFT

5333404

$24.27

20

FITTING-LUBRICATION 1/4-28

7080424

$4.76

21

WASHER

7556156

$4.76

21

WASHER

7556156

$4.76

22

SCREW

7518339

$10.99

23

SCREW

7518005

$3.17

23

SCREW

7518005

$3.17

24

SHAFT

5134078

$38.71

25

SHAFT

5134517

$28.32

26

NUT, FLANGE LOCK

7542522

$3.84

27

Washer, Spring Lock

7552603

$0.79

28

Shaft, Coupler Block

5134796

$17.46

29

Screw

7515551

$6.35
