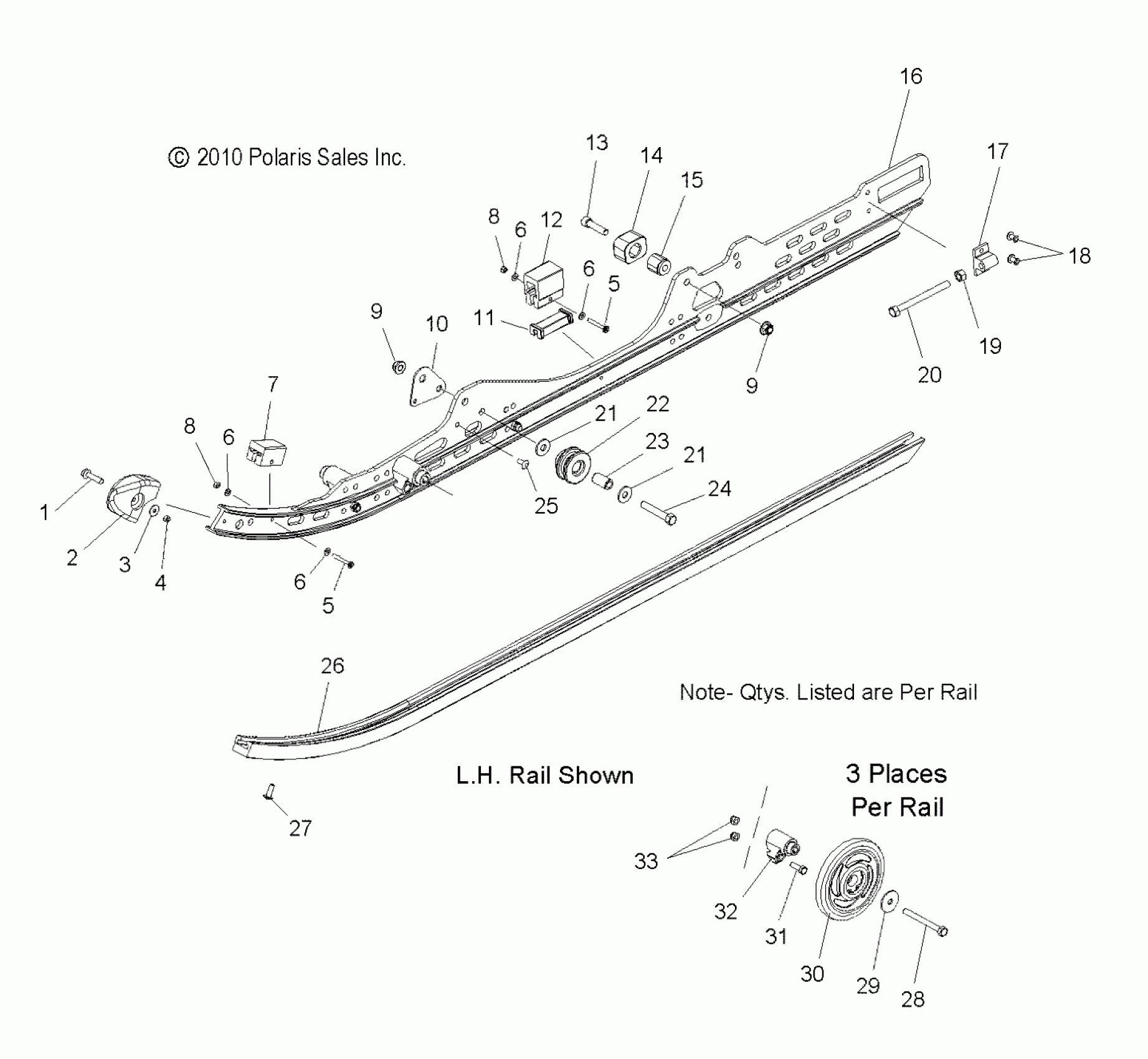

Polaris TURBO IQ LX - S11PD7FSL SUSPENSION, RAIL MOUNTING - S11PD7FSL (49SNOWSUSPRAIL11FSTSBLX) Diagram

#

Description
Price

1

SCREW

7518993

$2.38

2

CAP, RAIL TIP

5438374

$20.22

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

5

Screw

7510504

$6.76

5

Screw

7510504

$6.76

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

6

Washer, Flat

7555783

$3.97

7

BUMPER, JOUNCE, FRONT

5521499

$8.89

8

Nut, Nylok

7541925

$0.79

8

Nut, Nylok

7541925

$0.79

9

NUT-3/8-24 FLG LOC

7547263

$3.17

9

NUT-3/8-24 FLG LOC

7547263

$3.17

10

BRACKET, RAIL REINFORCEMENT

5248414

$36.41

11

LINER-BUMPER

5432946

$10.51

12

BUMPER, JOUNCE, REAR

5521498

$8.89

13

BOLT

7515537

$6.04

14

BUMPER, PIVOT ARM

5410925

$12.94

15

MOUNT, BUMPER

5131113

$28.32

16

Asm., Rail, 136, LH [Incl., 1-8,11,12,17,18]

1542788

Unavailable

16

Asm., Rail, 136, RH [Incl., 1-8,11,12,17,18]

1542789

Unavailable

17

BLOCK, IDLER BOLT ADJUSTABLE

5130530

$32.37

18

RIVET

7621501

$2.38

19

NUT

7542404

$1.59

20

SCREW

7517227

$7.14

21

WASHER

7555983

$0.79

21

WASHER

7555983

$0.79

22

Roller, Spring Square

5432982

$10.51

23

BUSHING

5135933

$3.97

24

Screw

7515415

$1.19

25

RIVET

7661845

$0.82

26

SLIDER

5521633

$40.46

27

Screw

7515199

$1.19

28

Screw

7515346

$5.56

29

WASHER, SPRING

7556387

$1.59

30

ASM., WHEEL, SCROLLED, BLACK

1590387-070

$56.65

30

BEARING [1 PER WHEEL]

3514384

$19.84

30

RING-RETAINING [1 PER WHEEL]

7710444

$8.73

31

BOLT

7515317

$4.76

32

BLOCK, WHEEL MOUNT

5631446

$24.27

33

NUT-5/16-18 NYLOK-Y

7542324

$0.79
