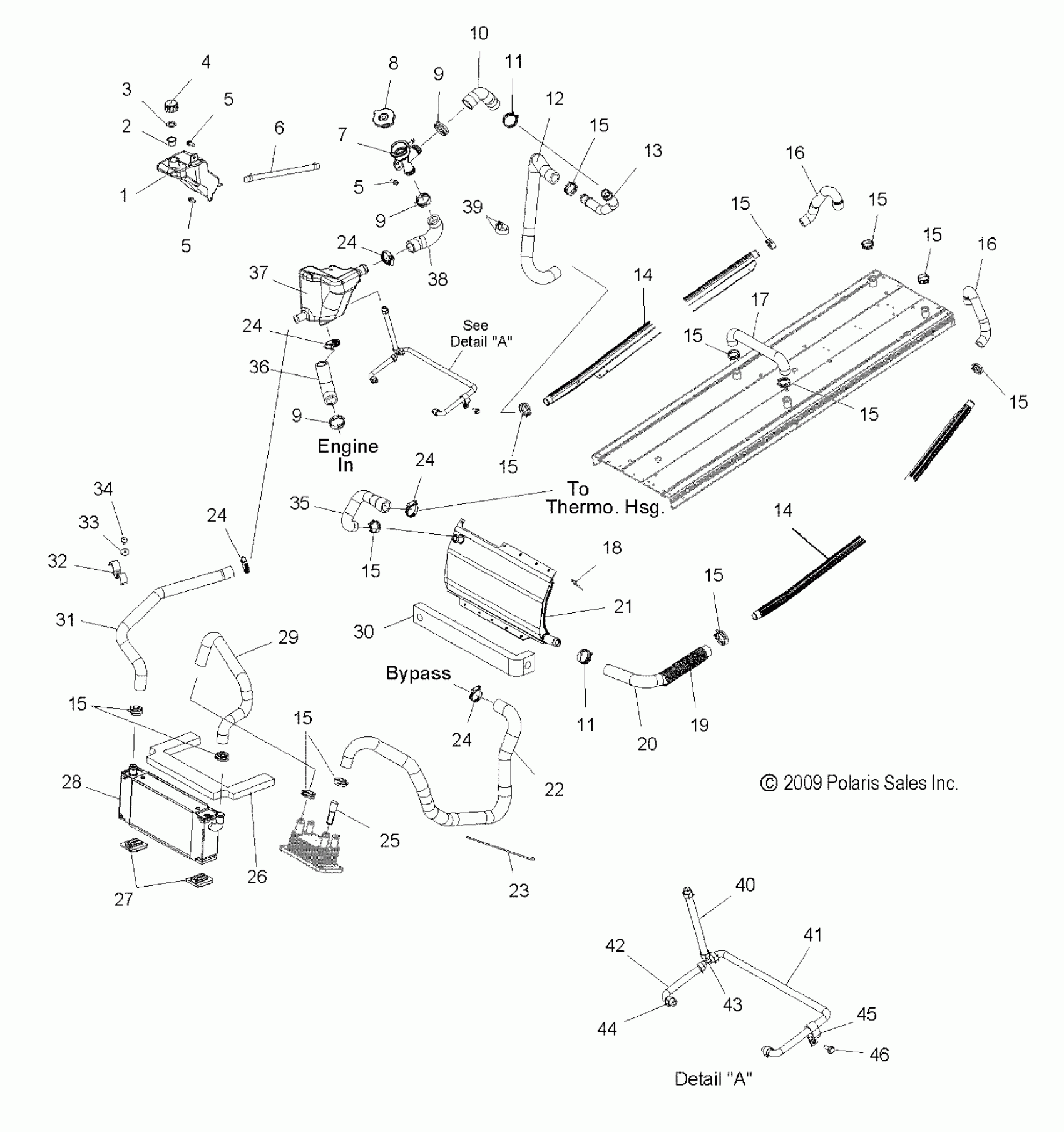

Polaris TURBO IQ LX - S11PD7FSL ENGINE, COOLING SYSTEM - S11PD7FSL (49SNOWCOOLING10TRBOLX) Diagram

#

Description
Price

1

BOTTLE, COOLANT

5436215

Unavailable

2

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

3

GASKET-OVERFLOW CAP

5810279

$2.41

4

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

5

Screw

7512095

$4.76

5

Screw

7512095

$4.76

5

Screw

7512095

$4.76

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

6

Line, Fuel

8450003-1525

$89.99

7

FILLER, REMOTE

5433364

$48.40

8

Cap, Pressure

1240508

$48.56

9

CLAMP, SPRING BAND

7080844

$10.32

9

CLAMP, SPRING BAND

7080844

$10.32

9

CLAMP, SPRING BAND

7080844

$10.32

10

HOSE, TUBE/FILLER

5413568

Unavailable

11

CLAMP, SPRING BAND

7080843

$3.97

11

CLAMP, SPRING BAND

7080843

$3.97

12

Hose, Gripper/Tube

5412851

$21.27

13

TUBE, GRIPPER/FILLER

5335651

Unavailable

14

Exchanger, Cooler, RH

5136131

$139.68

14

Exchanger, Cooler, LH

5136130

Unavailable

14

Exchanger, Cooler, RH

5136131

$139.68

14

Exchanger, Cooler, LH

5136130

Unavailable

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

15

CLAMP, SPRING BAND

7080842

$7.14

16

Hose, Exchanger/Tunnel Cooler, LH

5413228

$14.56

16

Hose, Exchanger/Tunnel Cooler, RH

5413229

Unavailable

16

Hose, Exchanger/Tunnel Cooler, LH

5413228

$14.56

16

Hose, Exchanger/Tunnel Cooler, RH

5413229

Unavailable

17

Hose, Crossover, Tunnel

5413240

Unavailable

18

RIVET-3/16-.090-.290

7661637

Unavailable

19

CONDUIT, FLEX

5521287-15

$10.51

20

Hose, Center Cooler/Gripper, LH

5412766

$28.32

21

COOLER, BULKHEAD

2520575

$244.99

22

HOSE, ENGINE OUT/OIL COOLER

5413539

Unavailable

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

24

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.94

25

RESTRICTOR, COOLANT

5136216

Unavailable

26

MOUNT, RADIATOR, FOAM

5812496

$9.70

27

MOUNT, RADIATOR

5412513

$8.08

28

ASM., RADIATOR

1240580

$534.99

29

HOSE, OIL COOLER/RADIATOR

5414050

Unavailable

30

SEAL, FRONT CLOSEOFF COOLER

5812845

$12.13

31

HOSE, RESERVOIR/RADIATOR

5414051

Unavailable

32

CLAMP, DOUBLE HOSE

7080898

Unavailable

33

WASHER

7556044

$3.97

34

RIVET

7621467

$1.19

35

HOSE, ENGINE OUT/CENTER COOLER

5412984

Unavailable

36

HOSE, RESERVOIR/ENGINE IN

5413567

$32.37

37

FOIL, COOLANT RESERVOIR

5813414

$29.99

37

RESERVOIR, COOLANT

5437634

Unavailable

38

HOSE, FILLER/RESERVOIR

5413534

$64.99

39

CLAMP-HOSE

7080807

$9.52

39

Nut

7542153

$1.59

40

Line, Fuel

8450040-600

$72.84

41

HOSE, HEAD BLEED, PTO

5413817

$28.32

42

HOSE, HEAD BLEED, MAG

5413816

$3.99

43

FITTING, TEE

7052468

Unavailable

44

HOSE CLAMP, RED

7080003

$1.19

45

CLAMP, DOUBLE TUBE

7081364

$1.40

46

Screw

7517915

$7.14
