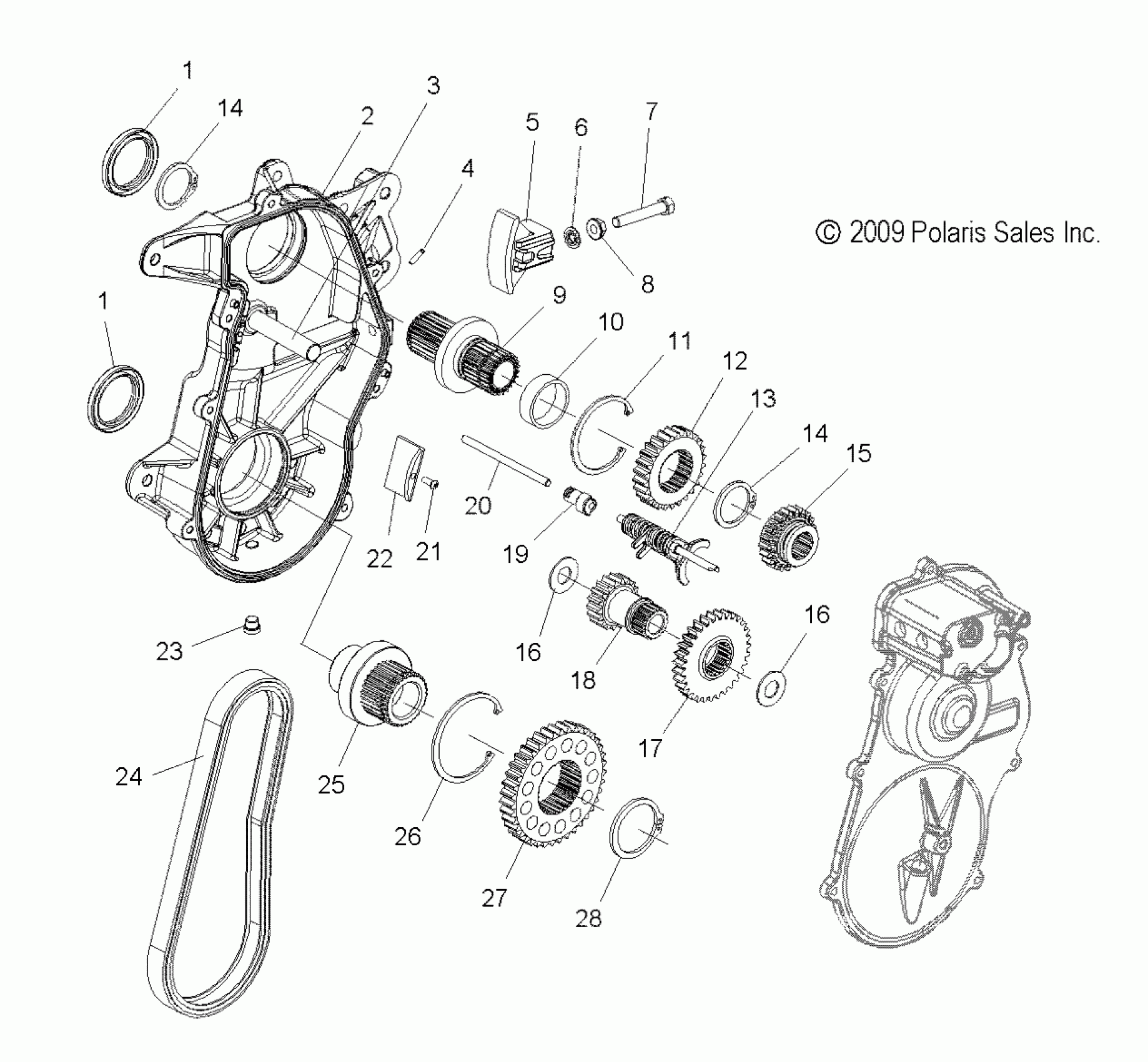

Polaris TURBO IQ LX - S11PD7FSL DRIVE TRAIN, GEARCASE ASM. - S11PD7FSL (49SNOWGEARCASE10FSTTRG) Diagram

#

Description
Price

1

SEAL, OIL

3610108

$12.99

1

SEAL, OIL

3610108

$12.99

2

Asm., Case, Svc [Incl. 1,3,4,6-8]

1332612

Unavailable

3

SHAFT, PINION

5136412

Unavailable

4

TUBE-VENT .155DIAX.75L

5334764

$32.37

5

ASM-TIGHTENER,CHAIN,VESPEL

1332427

$79.37

6

WASHER, THREAD SEAL

7556340

$3.17

7

SCREW

7515511

$2.74

8

NUT

7547304

$3.17

9

BEARING, BALL

3514471

$33.32

9

SEAL, OIL

3610110

$8.89

9

ASM., HUB CARRIER, UPPER

1332485

Unavailable

10

SPACER, SPROCKET, UPPER

5134518

$23.81

11

RING, RETAINING

7710552

$7.14

12

SPROCKET, 24T

3222128

$43.56

13

ASM., SHIFT FORK

1332315

Unavailable

14

RING, RETAINING

7710555

$7.14

14

RING, RETAINING

7710555

$7.14

15

PINION, FWD/REV

5135601

Unavailable

16

WASHER

7556354

$2.74

16

WASHER

7556354

$2.74

17

GEAR, SPUR, 31T

5135059

Unavailable

18

SPROCKET, 18T/18T SPLINE

1332385

$104.99

19

INDICATOR, POSITION, HUB

5435503

$32.37

20

SHAFT, SHIFT

5134327

Unavailable

21

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

22

PLATE, REVERSE BACKING

5250017

$69.99

23

PLUG, HEX

7052115

$5.65

24

CHAIN, 80P

3222134

$106.49

25

O-RING

5412229

$1.60

25

BEARING, BALL

3514496

Unavailable

25

RING, RETAINING

7710553

$7.14

25

ASM., HUB CARRIER, LOWER

1332306

Unavailable

26

RING, RETAINING

7710554

$8.73

27

SPROCKET, 44T

3221186

Unavailable

28

RING, RETAINING

7710558

$7.14
