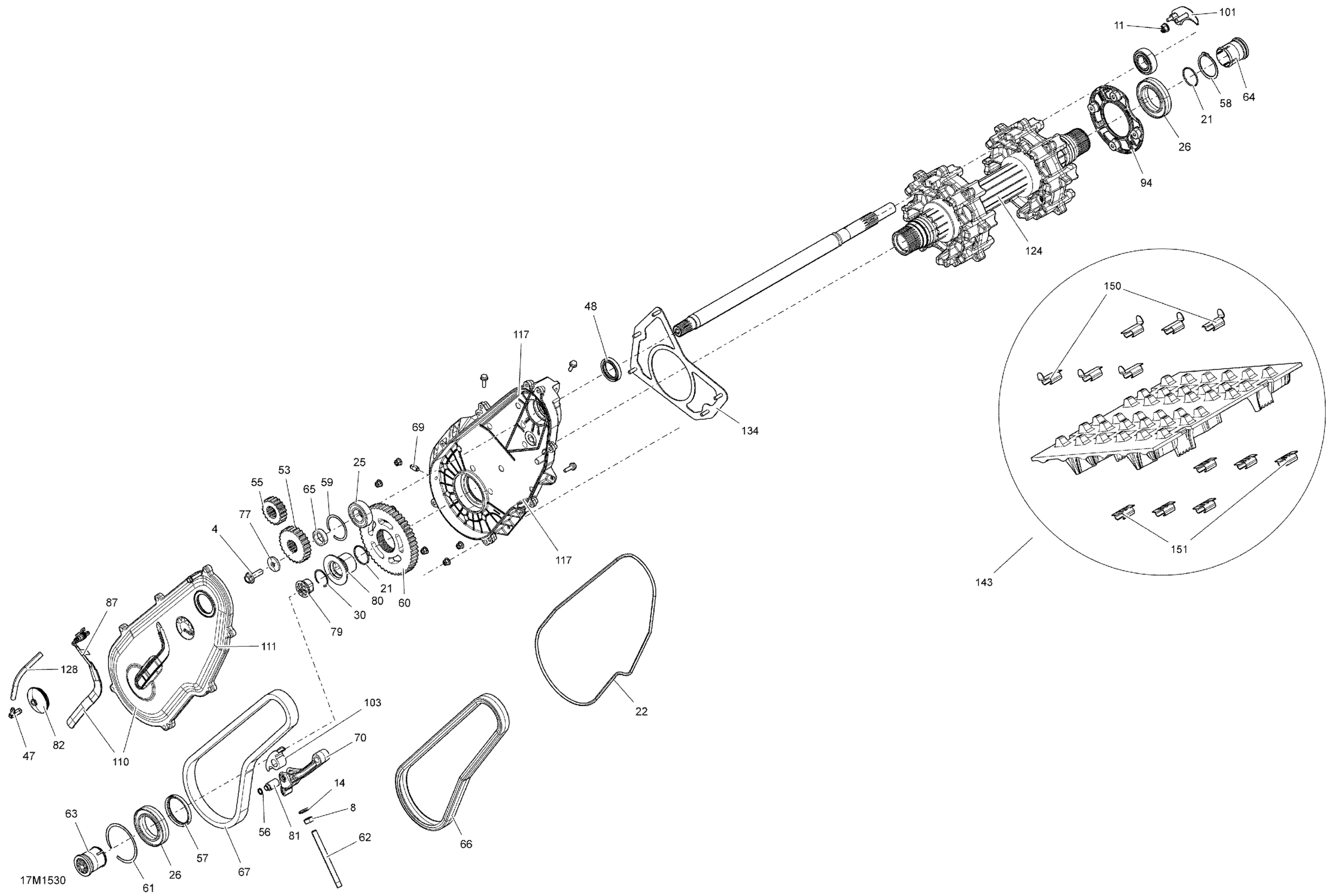

Ski-Doo Tundra Xtreme 600HOETEC XU-154, 2015 Drive System _17M1530 Diagram

#

Description
Price

4

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

8

Hex. Nut M10 X 1.5

232006414

$1.27

11

Hex. Flange Elastic Nut M8

233281414

$1.31

14

Bonded Washer

250200100

$2.00

21

O-Ring

293300122

$2.00

22

Tight Seal

293300130

$7.09

25

Ball Bearing

293350115

$10.82

26

Ball Bearing

293350059

$29.82

47

Male Connector

414580700

$3.88

48

Oil Seal

293200158

$12.15

53

Sprocket, 21 Teeth

504096200

$41.01

55

Sprocket, 19 Teeth

504153783

$105.94

56

Circlip

504152282

$3.01

57

Oil Seal

293200159

$12.73

58

Circlip

504152572

$6.07

59

Circlip

504152576

$8.45

60

Kit Sprocket This part replaces 504152581.

861805539

$145.49

61

Circlip

504152582

$8.45

62

Adjustment Screw

504152602

$9.33

63

Magnetic Cap

504152619

$22.36

64

Magnetic Cap

504152619

$22.36

65

Shim

504152628

$8.15

66

Drive Chain, 104 Links

504152629

$168.63

67

Drive Chain, 106 Links

504152630

$168.63

69

Magnetic Plug 1/8 - 27 NPTF

504152854

$8.69

70

Tensioner chain

504153429

$13.36

77

Spring Washer M10

504152784

$6.07

81

Tensioner Axle

504152841

$14.21

82

Cap

504152860

$18.63

87

Rotation Sensor

504152896

$34.30

94

Retaining Ring

504153886

$17.88

101

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.39

103

Slider Chain

504152739

$65.64

110

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$314.90

111

Casting Cover

504153151

$175.34

117

Chaincase | Includes 10 to 10a

504153405

$311.91

124

Drive Axle Ass'y

504154054

$492.51

128

Polyurethane Hose 10000Mm Long

219704410

$52.96

134

Plate | Not Shown

518325816

$71.61

143

Track Ass'y 16" X 154" X 2.2"P

504153015

$1,239.99

150

Track Guide | Track Width 16''

415129528

$3.03

151

Cleat

504152651

$7.97
