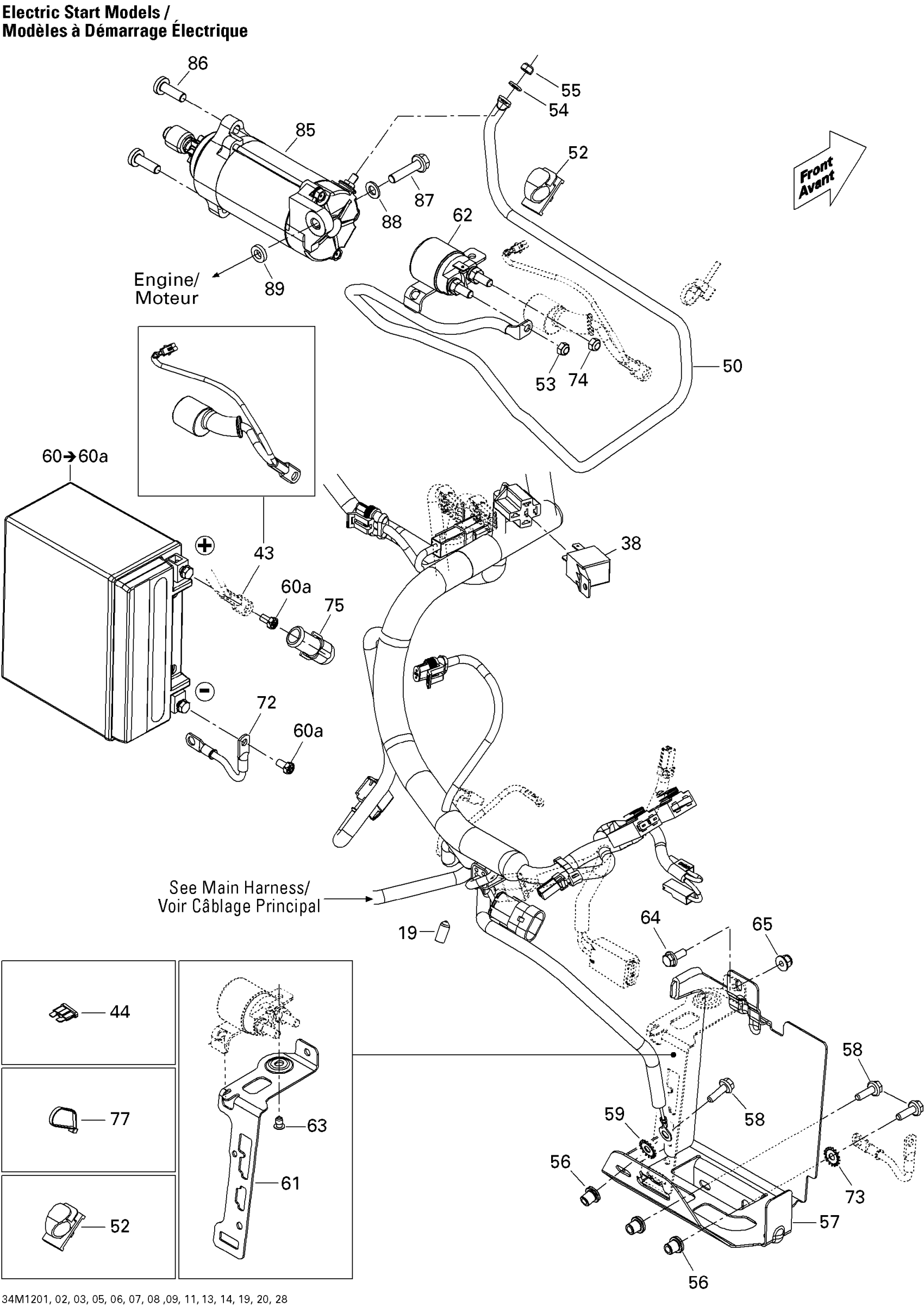

Ski-Doo Tundra Xtreme 600HOETEC XP-LTS, 2012 10- Battery And Starter Diagram

#

Description
Price

19

Cap

515176141

$3.09

43

BATTERY FUSE WIRE - Call your local BRP dealership | DELE

515177200

Unavailable

44

Fuse, 30 Amperes

410917200

$3.28

50

BATTERY WIRE - Call your local BRP dealership

515177067

Unavailable

52

Clip

515177066

$4.29

53

Elastic Stop Nut M6

232561414

$0.55

54

Flat Washer 6 mm

234061410

$1.36

55

Elastic Stop Nut M6

232561414

$0.55

56

Insert

293450275

$12.99

56

Insert

293450275

$12.99

57

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

58

Hex. Flange Screw M6 X 20

207662044

$2.00

58

Hex. Flange Screw M6 X 20

207662044

$2.00

59

Lock Washer Serrated M6

250200041

$1.15

60

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

60a

Not Available As Spare Parts

XXX

Unavailable

61

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

62

Starter Relay

515176501

$96.49

63

Pop Rivet 3/16"

390402200

$0.35

64

Hex. Flange Screw M6 X 16

207661644

$0.74

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Ground Wire

515176358

$27.99

73

Lock Washer Serrated M6

250200041

$1.15

74

Elastic Stop Nut M6

232561414

$0.55

75

Protector Cap

710000495

$10.99

77

Tie-Rap 180 mm

414115200

$0.11

77

Tie Wrap 142 mm

293750002

$1.25

77

Tie Wrap 368 mm

293750008

$1.04

77

Tie-Rap 173 mm

293750009

$1.04

85

Starter

515178473

$319.49

86

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

87

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

88

Flat Washer With Teflon 8 mm

250200008

$3.80

89

Washer

515176500

$11.12
