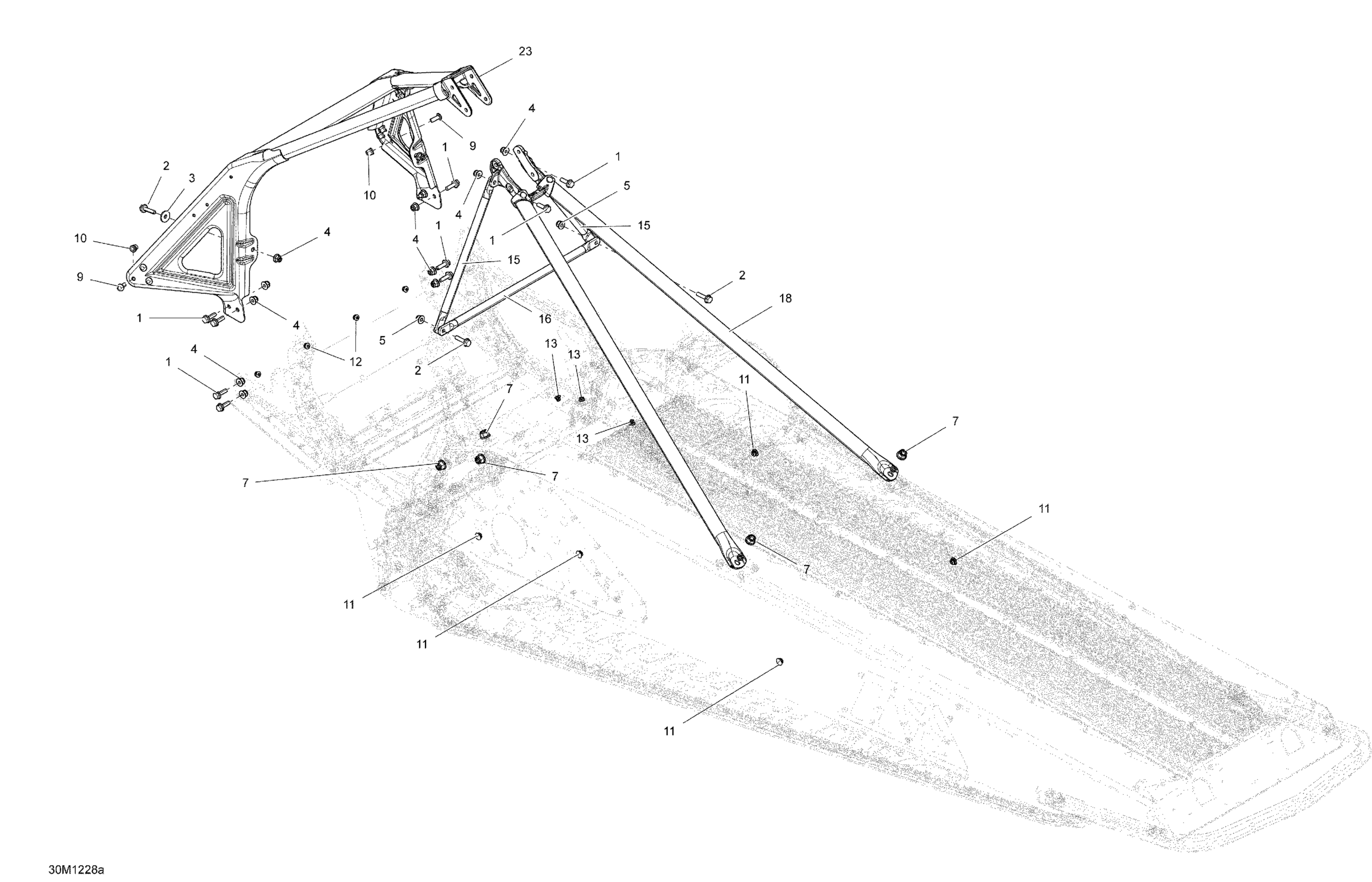

Ski-Doo Tundra Xtreme 600HOETEC XP-LTS, 2012 Frame Common Parts Diagram

#

Description

Price

1

Hex. Flange Screw M6 X 20

207662044

$1.91

2

Hex. Flange Screw M6 X 25

207662544

$0.61

3

Flat Washer

224061201

$1.27

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

5

Elastic Flange Nut M6 X 1.0

233261416

$2.00

7

Hex. Flange Elastic Nut M8

233281414

$1.31

9

Hex. Flange Screw M6 X 20

207662044

$1.91

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Black, Dart 8 mm

293730047

$2.07

12

Pop Rivet 3/16"

390402200

$0.30

13

Pop Rivet 3/16"

390402400

$0.28

15

Upper Lateral Column Support

518325114

$20.12

16

Center Column Support

518325115

$20.12

18

Rear Member

518326559

$237.28

23

Front Member, S Module

518326558

$225.34
