Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

2

Elastic Stop Nut M6

232561414

$0.55

3

Hex. Flange Nut M6

233061414

$1.68

4

Panel Nut M5 X 0.8

250000958

$4.23

5

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

6

Tork Screw M6 X 16

250000534

$2.11

7

Torx Screw M8 X 55

250000535

$3.17

8

Tork Screw M6 X 18

250000536

$2.11

10

Flat Washer

250200039

$0.74

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

32

Ornit Rivet 6,5 X 14.5

293150266

$2.40

36

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Hemlock Rivet, 6.4 mm

293150174

$7.86

42

Interlock Rivet 3/16''

293150194

$1.04

44

Full Moon Dart 5 mm

293730042

$2.21

45

Black, Plug

293730052

$9.19

46

Pop Rivet 3/16"

390402300

$0.75

67

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

67

LH Roller | Includes 10bd to 10be

518325160

$78.99

69

RH Reinforcement

518324874

$27.99

69

LH Reinforcement

518324875

$27.99

71

RH Slide Bracket

518325955

$45.99

71

LH Slide Bracket

518325956

$49.99

72

Black Rear Bumper, 154"

518326611

$111.99

73

Rear Cap

518327105

$22.49

75

Front Radiator | Includes 10b to 10b2

518326485

$444.99

79

RH Deflector, Black Polypropylene

518325782

$13.99

79

LH Deflector, Black Polypropylene

518325783

$13.99

83

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

85

RH Rear Base

518325973

$21.99

85

LH Rear Base | Includes 10v to 10x

518325974

$21.99

88

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

95

Reinforcement Plate

518326647

$4.69

96

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

97

Seal

518326656

$9.19

99

LH Stirup

518326820

$37.99

102

Support

518326960

$12.99

103

U-Attach

518326961

$10.99

106

Attach | Includes 10n to 10p

518326986

$12.99

108a

Black RH Cap

520000965

$11.49

108b

Black LH Cap

520000964

$11.49

5a

Flat Washer

224061201

$1.37

A

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

415130261

$3.00

C

Avex Rivet

390909200

$0.30

D

Avex Rivet

390909100

$0.30

E

Stavex Rivet

293150144

$0.82

F

Henrob Rivet

293150146

$2.09

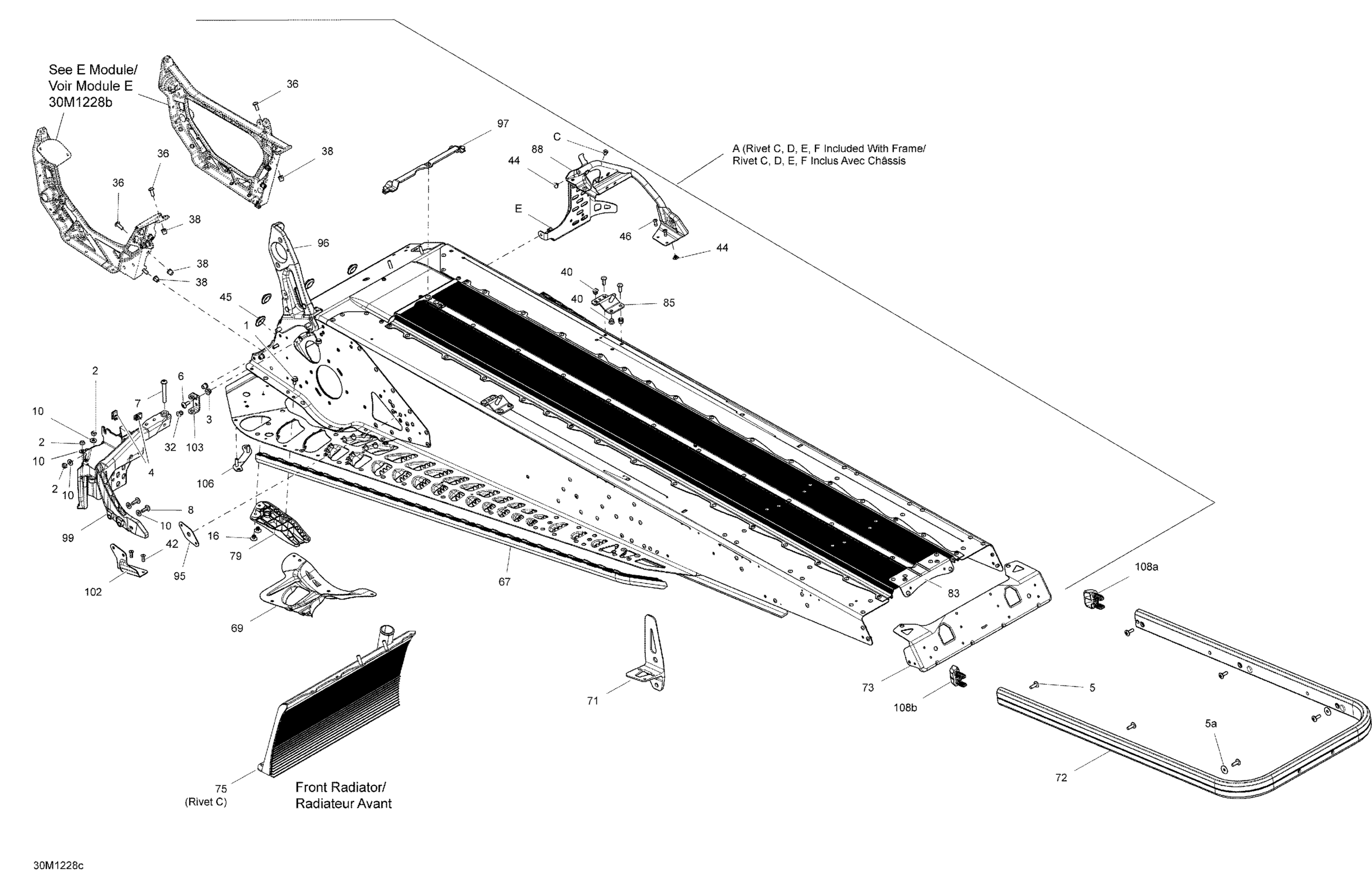

Ski-Doo Tundra Xtreme 600HOETEC XP-LTS, 2012 09- Frame 154" Diagram
