Description

Price

1a

Not Available As Spare Parts

XXX

Unavailable

1b

Black, Bottom Pan

502007361

$144.99

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3

RH Upper Bottom Pan Foam

502007204

$19.99

4

LH Upper Bottom Pan Foam

502007205

$19.99

5

RH Lower Bottom Pan Foam

502007206

$18.99

6

LH Lower Bottom Pan Foam

502007207

$18.99

7

Botton Pan Grille

502006887

$27.99

8

Black RH Bottom Pan

502006965

$77.99

9

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

11

Washer

517124300

$0.19

12

Torx Screw M6 X 20

250000722

$1.68

13a

Torx Screw M6 X 20

250000722

$1.68

13b

Not Available As Spare Parts

XXX

Unavailable

14

Insert

293450275

$12.99

15

Panel Nut M6 X 1.0

250100198

$2.11

16

Black LH Bottom Pan

502006966

$65.99

17

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

19

Washer

517124300

$0.19

20

Torx Screw M6 X 20

250000722

$1.68

21

Torx Truss Screw M6 X 12

250000767

$2.00

22

Panel Nut M6 X 1.0

250100198

$2.11

23

LH Bottom Pan Foam

502007208

$18.99

24

Foam On Plate

502007209

$37.99

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

26

Washer

250200016

$0.74

27

Black Front Bumper

502007121

$142.99

28

Hex. Flange Screw M6 X 16

207661644

$0.74

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

Black Bottom Pan Door

502006970

$19.99

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

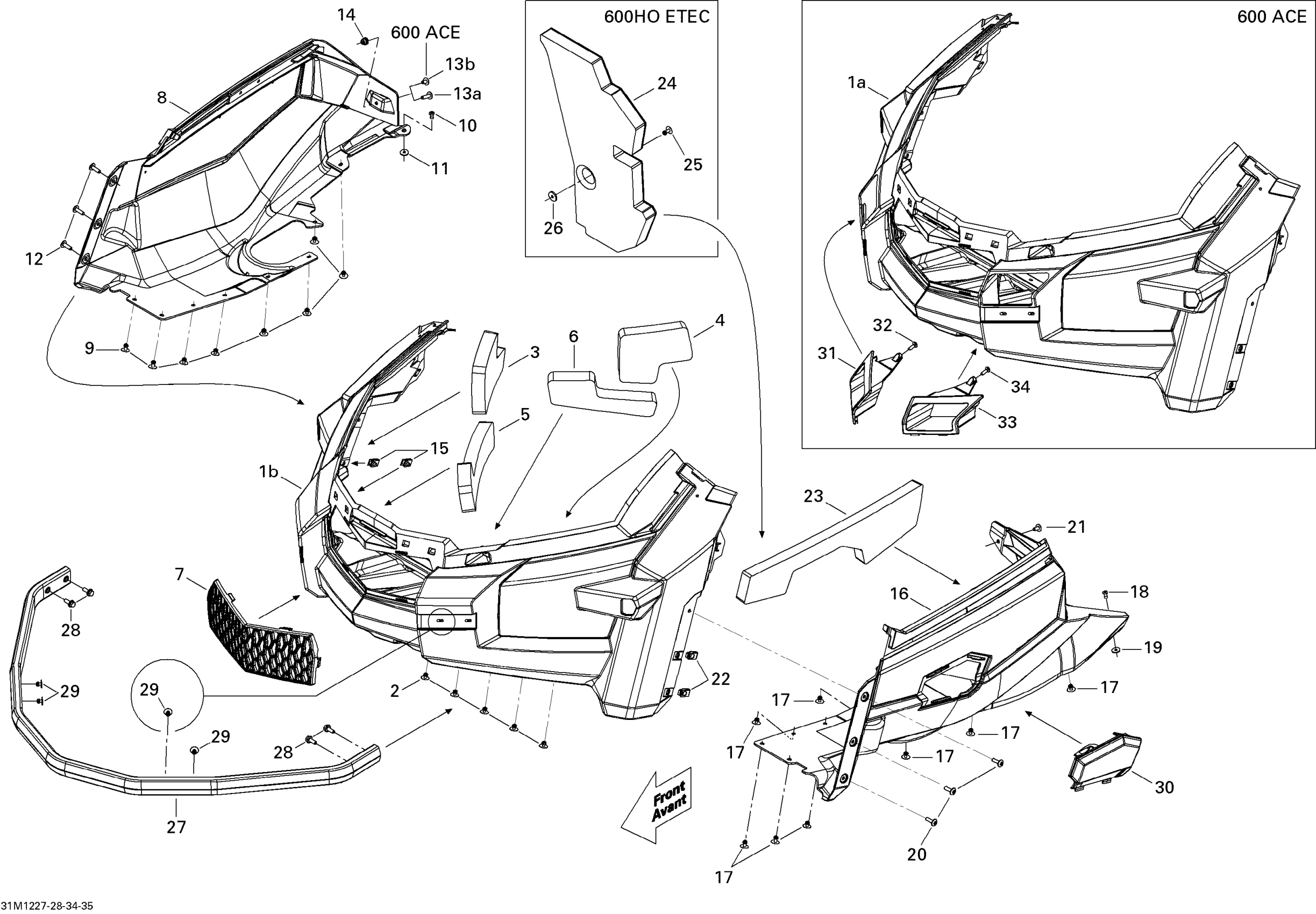

Ski-Doo Tundra Xtreme 600HOETEC XP-LTS, 2012 09- Bottom Pan Diagram

Not Available As Spare Parts

Black, Bottom Pan

Pop Rivet 3/16" | DS 650 X

RH Upper Bottom Pan Foam

LH Upper Bottom Pan Foam

RH Lower Bottom Pan Foam

LH Lower Bottom Pan Foam

Botton Pan Grille

Black RH Bottom Pan

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16" | DS 650 X

Washer

Torx Screw M6 X 20

Torx Screw M6 X 20

Not Available As Spare Parts

Insert

Panel Nut M6 X 1.0

Black LH Bottom Pan

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16" | DS 650 X

Washer

Torx Screw M6 X 20

Torx Truss Screw M6 X 12

Panel Nut M6 X 1.0

LH Bottom Pan Foam

Foam On Plate

Pop Rivet 3/16" | DS 650 X

Washer

Black Front Bumper

Hex. Flange Screw M6 X 16

Pop Rivet 3/16" | DS 650 X

Black Bottom Pan Door

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
