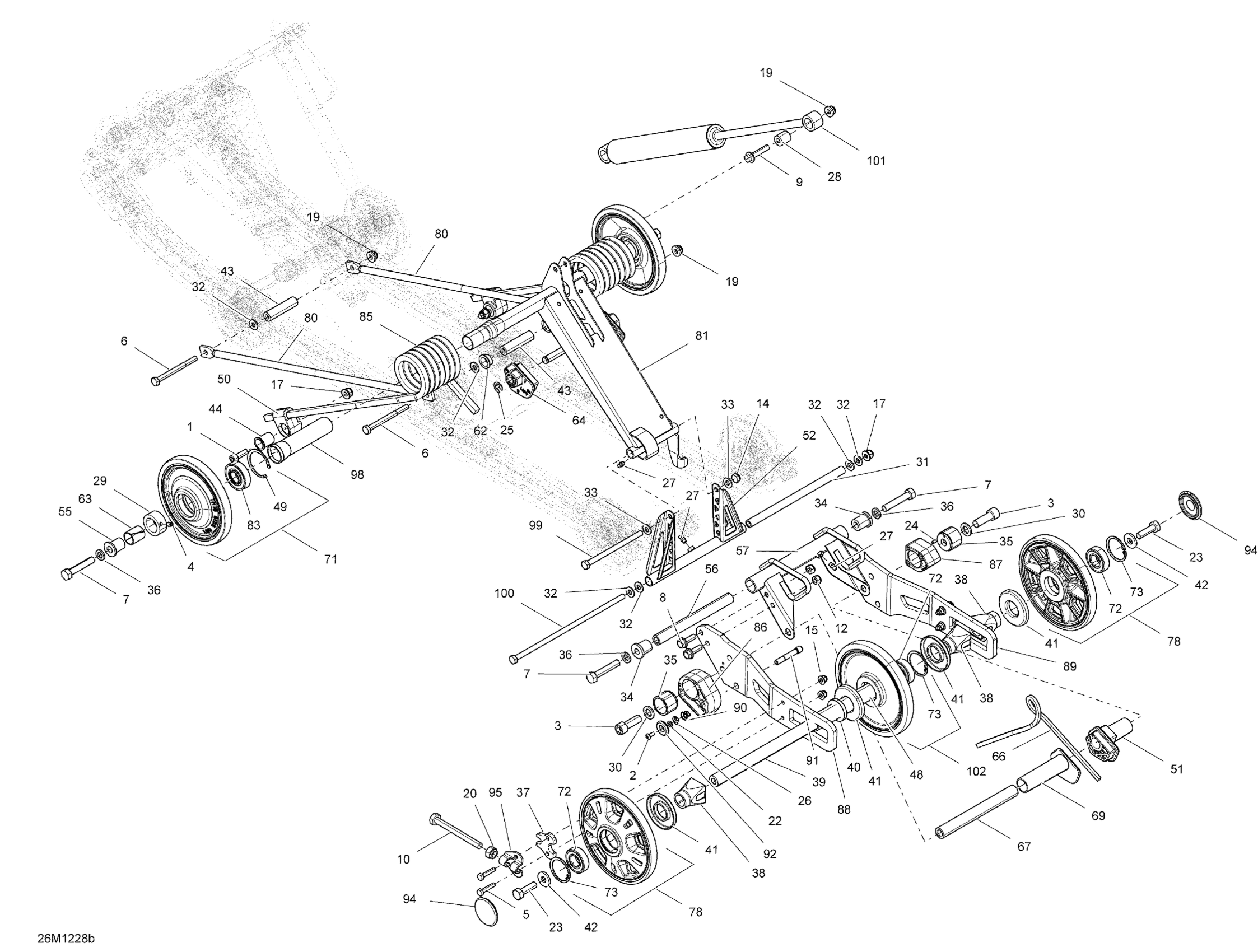

Ski-Doo Tundra Xtreme 600HOETEC XP-LTS, 2012 Rear Suspension Rear Arm And Shock Diagram

#

Description
Price

1

Socket Head Screw M8 X 25

205082544

$1.06

2

Torx Screw M5 X 14

250000742

$1.37

3

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

4

Socket Set Screw M6 X 8

206260844

$1.43

5

Hex Cap Screw DIN.931

250000480

$5.06

6

Hex. Screw M8 X 90

207089044

$3.24

7

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

8

Hex. Flange Screw M8 X 25

207682544

$1.03

9

Hex. Flange Screw M8 X 40

207684044

$1.43

10

Hex Screw M10 x 100

230100054

$6.07

12

Hex. Elastic Stop Nut M8

232581414

$0.54

14

Hex. Elastic Stop Nut M8

232581414

$0.54

15

Elastic Flange Nut M6 X 1.0

233261416

$2.00

17

Elastic Flange Nut M8

250100131

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.31

20

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

22

Flat Washer M5

234051410

$0.51

23

Hex. Screw With Nylon

250000019

$1.63

24

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

25

E-Circlip

293370013

$0.60

26

Circlip

293370068

$0.90

27

Grease Fitting

408200700

$3.21

28

Bushing

414936000

$11.21

29

Retaining Ring

503168800

$12.27

30

Washer | 7415/7416. 7417/7418.

503189148

$2.64

31

Pivot Arm Axle

503189156

$20.12

32

Washer

503192494

$3.01

32

Washer

503189157

$3.10

33

Washer

503189157

$3.10

34

Bushing

503189324

$10.84

35

Block Guide

503189488

$36.54

36

Washer

503189564

$0.70

37

Spacer

503193250

$13.54

38

Rear Wheel Spacer

503190428

$5.88

39

Rear Axle

503190429

$58.18

40

Washer

503190432

$12.15

41

Labyrinth Seal

503190434

$4.16

42

Washer

503190439

$5.64

43

Axle Bar (Long)

503190643

$14.90

44

Spring Support Kit

861805547

$7.90

48

Spacer

503193052

$14.90

49

Retaining Ring

415129371

$8.66

50

Spring Support Kit

861805547

$7.90

51

RH Spring Cam

503191190

$13.37

52

Pivot Arm | Includes 3000j to 3000j3

503191209

$114.90

55

Bushing

503191262

$13.19

56

Lower Shaft

503191279

$26.84

57

Runner Pivot | Includes 100c to 100c3

503192647

$50.72

62

Swivel Bushing

503191555

$5.54

63

Extended Bushing

503191556

$5.54

64

LH Cam Adjuster

503191565

$13.54

64

RH Cam Adjuster

503191566

$13.54

66

Spring

503194624

$29.07

67

Cam Axle

503191608

$14.58

69

LH Spring Cam

503191668

$9.88

71

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$44.75

72

Ball Bearing | Package-STD

503190396

$8.18

73

Retaining Ring

415129371

$8.66

78

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$48.48

80

Link Rod

503191765

$17.13

81

Rear Arm | Includes 3000a to 3000a7

503191762

$91.01

83

Ball Bearing

503193548

$16.39

85

Black, LH Spring Square

503193158

$75.34

85

Black, RH Spring Square

503193159

$75.34

86

LH Block

503192426

$12.31

87

RH Block

503192427

$12.31

88

Rail Pivot LH

503192434

$81.31

89

Rail Pivot RH

503192435

$81.31

90

Compression Spring

503192436

$36.54

91

Rode

503192437

$5.67

92

Handle

503192438

$4.52

94

Black, Wheel Cap

503192771

$2.21

95

Tensioner

503192583

$5.67

98

Bushing

572080700

$14.81

99

Bolt M8, Short

732601197

$14.61

100

Bolt M8 X 248mm

503192440

$29.07

101

Rear Shock HPG SEAL

503193192

$231.31

102

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$48.48
