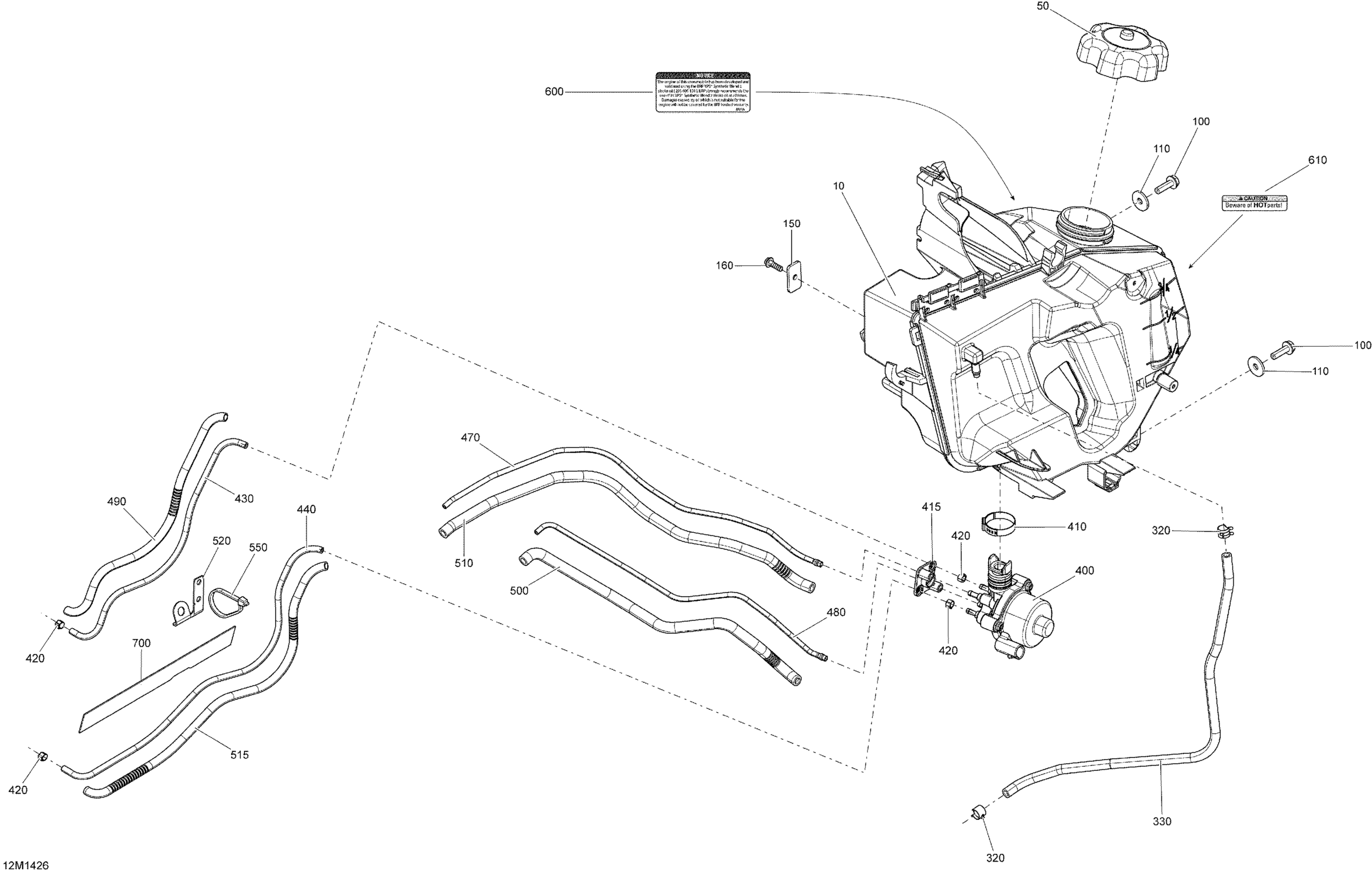

Ski-Doo TUNDRA XTREME 600HOE XU, 2014 02- Oil System Diagram

#

Description
Price

10

Oil Tank

519000311

$124.99

50

Cap

519000273

$28.99

100

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

110

Flat Washer

224061201

$1.37

150

Bracket

519000179

$10.49

160

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

320

Spring Clamp

414554800

$0.88

330

Polyurethane Hose 10000Mm Long

219704410

$56.99

400

Pump_Hydraulic This part replaces 519000323.

519000376

$204.99

410

Crimp Clamp

293650099

$4.29

415

Bracket

519000271

$8.79

420

Oetiker Clamp

293650100

$3.38

430

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

440

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

470

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

480

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

490

Tubing 6 Mm 3000Mm Long

219704425

$13.75

500

Tubing 6 Mm 3000Mm Long

219704425

$13.75

510

Tubing 6 Mm 3000Mm Long

219704425

$13.75

515

Tubing 6 Mm 3000Mm Long

219704425

$13.75

520

Bracket

519000245

$15.99

550

Tie Wrap 142 mm

293750002

$1.25

600

NOTICE DECAL, OIL - Call your local BRP dealership

516005528

Unavailable

610

Caution Decal Hot Parts

516005280

Unavailable

700

Protection Decal / Lexan

516004648

$11.49
