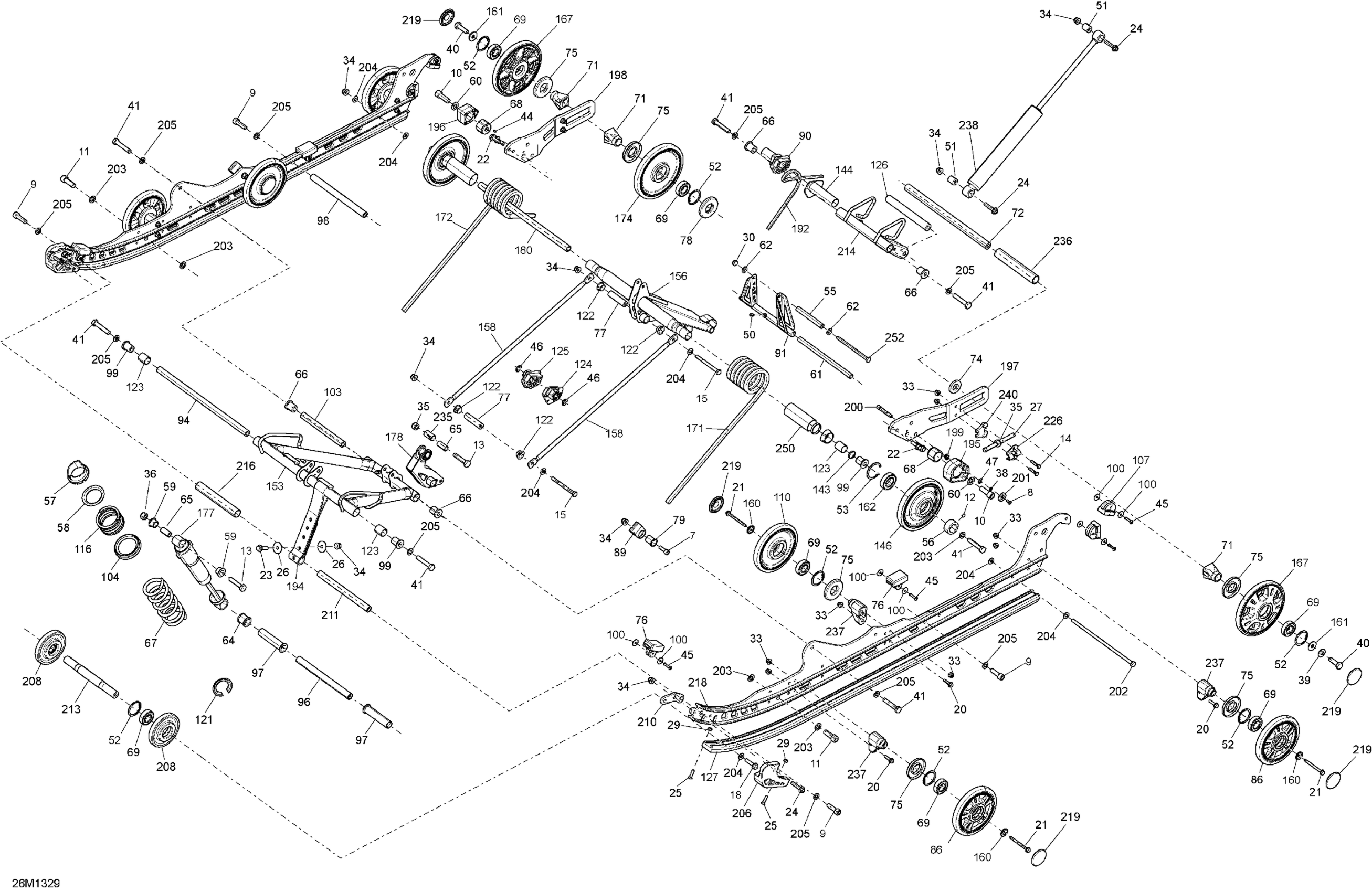

Ski-Doo TUNDRA XTREME 600HOE XP, 2013 Rear Suspension Diagram

#

Description
Price

7

Socket Screw M8 X 25

205082554

$2.00

8

Torx Screw M5 X 14

250000742

$1.37

9

Socket Head Screw M10 X 35

205503554

$7.09

10

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

11

Socket Head Screw M12 X 35

205523554

$4.15

12

Socket Set Screw M6 X 8

206260844

$1.43

13

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

14

Hex. Cap Screw M6 X 30

207063054

$5.06

15

Hex. Screw M8 X 90

207089044

$3.24

18

Hex. Flange Screw M8 X 35

250000986

$2.00

20

Hex. Flange Screw M6 X 25

207662556

$4.15

21

Hex. Flange Screw M6 X 70

207667056

$4.15

22

Hex. Flange Screw M8 X 25

207682544

$1.03

23

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

24

Hex. Flange Screw M8 X 40

207684044

$1.43

25

Phillips Screw M6 X 25

208562531

$2.00

26

Flat Washer 8 mm

250200128

$2.00

27

Hex Screw M10 x 100

230100054

$6.07

29

Elastic Stop Nut M6

232561414

$1.78

30

Hex. Elastic Stop Nut M8

232581414

$0.54

30

Hex. Elastic Stop Nut M8

232581414

$0.54

33

Hex. Flange Elastic Nut M6

233261466

$1.91

34

Elastic Flange Nut M8

233281466

$0.96

35

Elastic Locking Nut M10 X 1.5

233601416

$1.63

36

Elastic Locking Nut M10

233601466

$2.00

38

Flat Washer M5

234051410

$0.51

39

Conical Spring Washer 10 mm

234201474

$1.60

40

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.15

41

Hex. Screw S.Grip M10 X 55

250000605

$7.09

44

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

45

Pop Rivet 3/16"

293150142

$2.04

46

E-Circlip

293370013

$0.60

47

Circlip

293370068

$0.90

50

Grease Fitting

408200700

$3.21

51

Bushing

414936000

$11.21

52

Retaining Ring

415129371

$8.66

53

Retaining Ring

415129780

$13.46

55

Upper Axle, Pivot Arm

503144300

$10.84

56

Retaining Ring

503168800

$12.27

57

Adjustment Cam

505073625

$11.82

58

Spring Guide

503191872

$2.12

59

Urethane Bushing

503189117

$6.67

60

Washer | 7415/7416. 7417/7418.

503189148

$2.64

61

Pivot Arm Axle

503189156

$20.12

62

Washer

503189157

$3.10

64

Bushing

503189271

$10.15

65

Bushing | Includes 240d to 240d1

503189282

$4.06

66

Bushing

503189324

$10.84

67

Black, Spring

503192279

$64.90

68

Block Guide

503189488

$36.54

69

Ball Bearing | Package-STD

503190396

$8.18

71

Rear Wheel Spacer

503190428

$5.88

72

Rear Axle

503190429

$58.18

74

Washer

503190432

$12.15

75

Labyrinth Seal

503190434

$4.16

76

Rubber Stopper

503190576

$9.93

77

Axle Bar (Long)

503190643

$14.90

78

Labyrinth Seal

503190682

$5.67

79

Spring Support Kit

861805547

$7.90

86

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

89

Spring Support Kit

861805547

$7.90

90

RH Spring Cam

503191190

$13.37

91

Pivot Arm | Includes 3000j to 3000j3

503191209

$114.90

94

Upper Shaft

503191215

$35.04

96

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

97

Center Bushing

503191259

$8.70

98

Axle Strap

503191260

$28.33

99

Bushing

503191262

$13.19

100

Washer

503191273

$1.03

103

Lower Shaft

503191279

$26.84

104

Spring Spacer

503191281

$7.43

107

Rubber Stopper

503191291

$17.88

110

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

116

Black, Spring | Except 600 ACE

503191343

$58.18

121

Spring Stopper

503194270

$16.39

122

Swivel Bushing

503191555

$5.54

123

Extended Bushing

503191556

$5.54

124

LH Cam Adjuster

503191565

$13.54

125

RH Cam Adjuster

503191566

$13.54

126

Cam Axle

503191608

$14.58

127

Black Slider, 154"

503192618

$32.06

143

Washer

503191651

$7.27

144

LH Spring Cam

503191668

$9.88

146

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$44.75

153

Front Arm | Includes 2000a to 2000b

503191752

$344.75

156

Rear Arm | Includes 3000a to 3000a7

503191762

$91.01

158

Link Rod

503191765

$17.13

160

Wheel Cup M6

503191820

$4.52

161

Washer

503191910

$2.18

162

Ball Bearing

503193548

$16.39

167

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$48.48

171

Black, LH Spring Square

503193158

$75.34

172

Black, RH Spring Square

503193159

$75.34

174

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$48.48

177

Center Shock

503192991

$231.31

178

Rocker

503192211

$76.09

180

Upper Shaft

503191215

$35.04

192

Spring

503194624

$29.07

194

Stopper Strap

503192360

$19.37

195

LH Block

503192426

$12.31

196

RH Block

503192427

$12.31

197

Rail Pivot LH

503192434

$81.31

197

LH Rail Pivot

503193377

$81.31

198

Rail Pivot RH

503192435

$81.31

198

RH Rail Pivot

503193378

$81.31

199

Compression Spring

503192436

$36.54

200

Rode

503192437

$5.67

201

Handle

503192438

$4.52

202

Bolt M8 X 248mm

503192440

$29.07

203

Washer

503192491

$4.25

204

Washer

503192494

$3.01

205

Washer

503192496

$0.73

206

LH Protector

503192609

$26.09

206

RH Protector

503192610

$26.09

208

Black, Wheel Ass'y, 100 mm

503192611

$31.31

210

Plate

503192612

$11.10

211

Axle Strap

503192613

$33.55

213

Front Wheel Axle

503192644

$141.76

214

Runner Pivot | Includes 100c to 100c3

503192647

$50.72

216

Spacer

503196943

$7.36

218

Runner | Model-LE

503193397

$217.13

219

Black, Wheel Cap

503192771

$2.21

226

Tensioner

503192583

$5.67

235

Bushing

503193037

$14.90

236

Spacer

503193052

$14.90

237

Casted Support

503193894

$12.37

238

Rear Shock HPG SEAL

503193192

$231.31

240

Spacer

503193250

$13.54

250

Bushing

572080700

$14.81

252

Bolt M8, Short

732601197

$14.61
