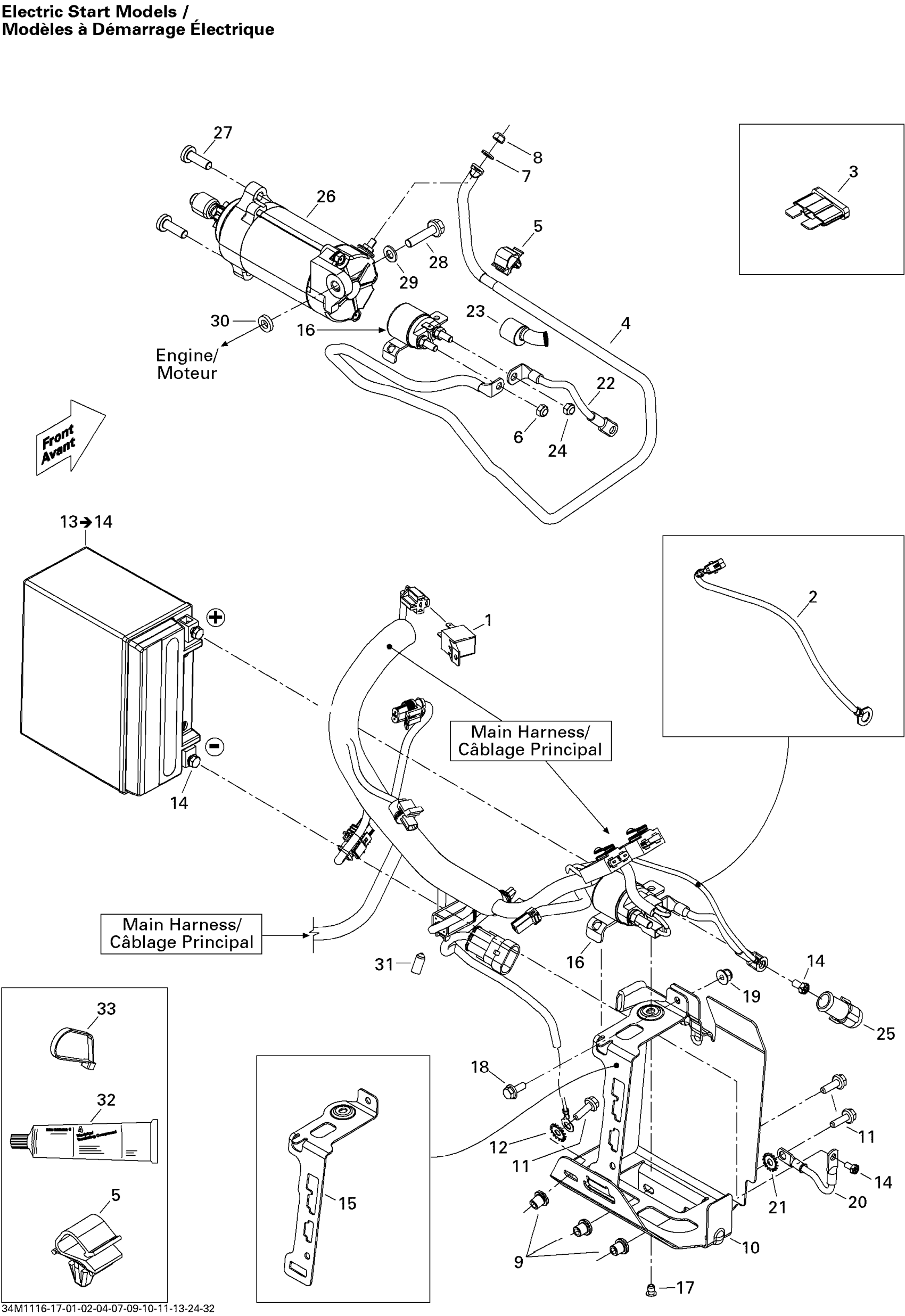

Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS, 2011 10- Battery And Starter Diagram

Relay | DS 650 X

710010053

$23.49

Fuse Battery Wire

515176744

$13.18

Fuse, 30 Amperes

410917200

$3.28

BATTERY WIRE - Call your local BRP dealership

515177067

Unavailable

Tie Rap Mount (screwable)

515176795

$5.39

Elastic Stop Nut M6

232561414

$0.55

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561414

$0.55

Insert

293450275

$12.99

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

Hex. Flange Screw M6 X 20

207662044

$2.00

Lock Washer Serrated M6

250200041

$1.15

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Not Available As Spare Parts

XXX

Unavailable

Battery Bolt Kit

250000282

$7.29

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

Starter Relay

515176501

$96.49

Pop Rivet 3/16"

390402200

$0.35

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Ground Wire

515176358

$27.99

Lock Washer Serrated M6

250200041

$1.15

BATTERY WIRE - Call your local BRP dealership

515176556

Unavailable

Protector Cap | XT

515175919

$17.99

Elastic Stop Nut M6

232561414

$0.55

Protector Cap

710000495

$10.99

Starter

515178473

$319.49

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

Flat Washer With Teflon 8 mm

250200008

$3.80

Washer

515176500

$11.12

Cap

515176141

$3.09

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04
