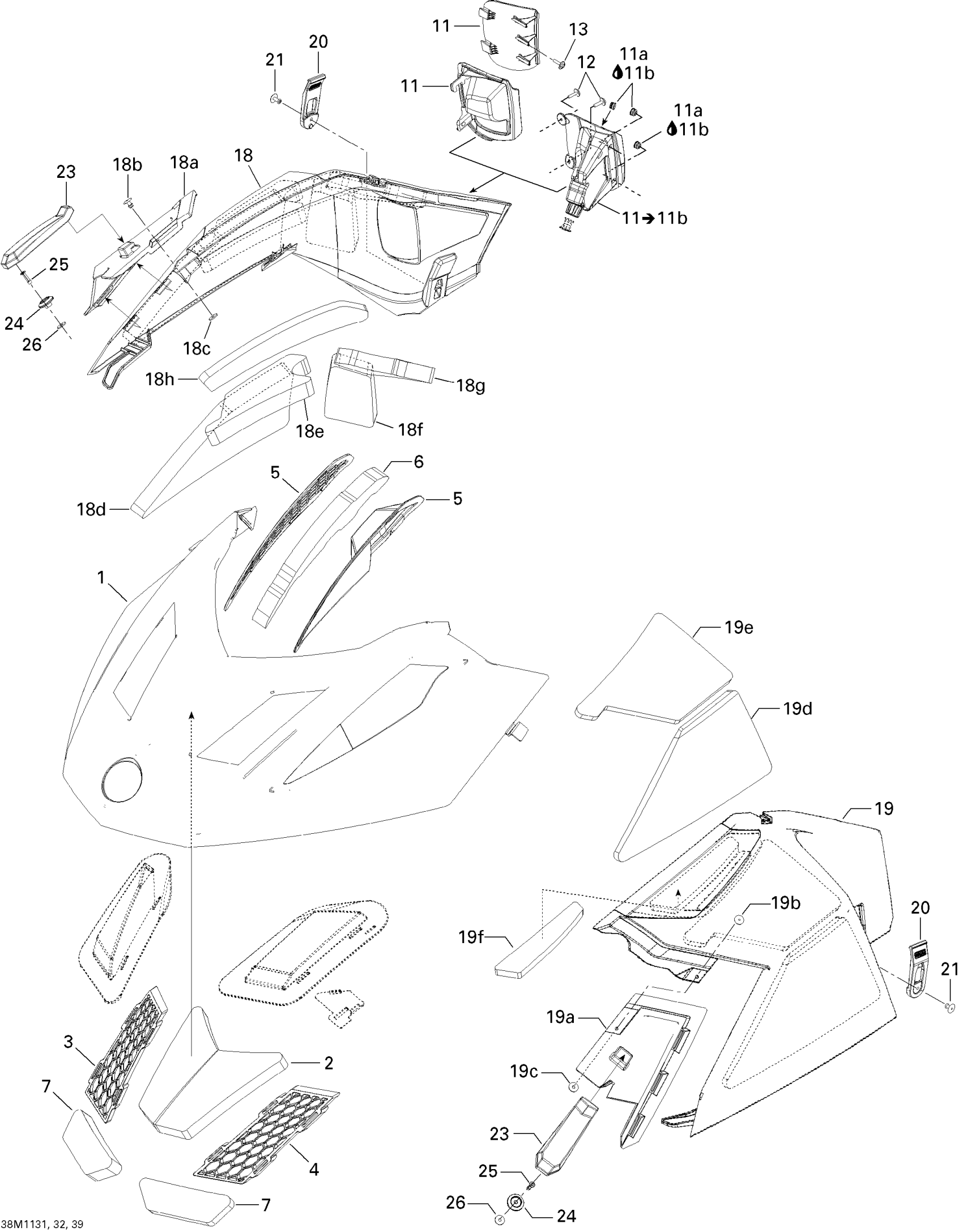

Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS, 2011 Hood Diagram

#

Description
Price

1

HOOD B-190 - Call your local BRP dealership

517304070

Unavailable

1

HOOD B-160 - Call your local BRP dealership

517304616

Unavailable

2

Foam Hood

517304877

$26.84

3

RH Hood Grille

517303805

$28.33

4

LH Hood Grille

517303804

$28.33

5

RH Lateral Hood Grille

517304279

$32.06

6

Foam Hood

517304878

$12.27

7

Foam Hood

517304879

$11.10

11

Black, RH Console

517304701

$17.13

11a

Not Available As Spare Parts

XXX

Unavailable

11b

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Screw M4 X 16

250000725

$3.30

18

PANEL_BODY RH B-190 - Call your local BRP dealership

517304071

Unavailable

18

Black RH Panel

517304617

$191.76

18a

RH Insert

517304090

$26.09

18b

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

18c

Washer

517124300

$0.18

18d

Foam

517304870

$26.84

18e

Foam

517304871

$12.31

18f

Foam

517304872

$11.10

18g

Foam

517304873

$11.10

18h

Foam

517304876

$12.31

19

PANEL_BODY LH B-160 - Call your local BRP dealership

517304618

Unavailable

19a

LH Panel Insert

517304092

$26.09

19b

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

19c

Washer

517124300

$0.18

19d

Foam

517304874

$26.84

19e

Foam

517304875

$12.31

19f

Not Available As Spare Parts

XXX

Unavailable

20

Rear Panel Latch

517304999

$16.39

21

Pop Rivet 3/16”

293150108

$1.19

23

Front Latch Panel

517305186

$20.12

24

Anchor Link

517304320

$12.24

25

Pop Rivet 3/16"

293150014

$1.00

26

Washer

517124300

$0.18
