Description

Price

1

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

415130261

$3.00

2

Module E TUNDRA Xtreme | Includes 10av to 10w

518326927

$769.99

3

RH Member

518326795

$284.99

4

LH Member

518326796

$229.99

5

Front Member

518326198

$64.99

6

Stavex Rivet

293150144

$0.82

7

Hemlock Rivet 6.5 mm

293150120

$7.41

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Monobolt Rivet, 4.8 mm

293150191

$0.99

10a

RH Front Member

518325949

$19.99

10b

LH Front Member

518325950

$19.49

11a

Avex Rivet

390909100

$0.30

11b

Monobolt Rivet 6.4

293150182

$3.09

12

Avex Rivet

390909200

$0.30

13

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

14

Hemlock Rivet, 6.5 mm

293150096

$3.27

15

Hex. Flange Screw M6 X 16

207661644

$0.74

16

Hex. Flange Screw M6 X 16

210261650

$1.67

17a

Hex. Flange Screw M6 X 20

207662044

$2.00

17b

Hex. Flange Screw M6 X 16

207661644

$0.74

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Screw M6 X 20

207662044

$2.00

20

RH Reinforcement

518324874

$27.99

21

LH Reinforcement

518324875

$27.99

22

RH Deflector, Black Polypropylene

518325782

$13.99

23

LH Deflector, Black Polypropylene

518325783

$13.99

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

26

RH Slide Bracket

518325955

$45.99

27

LH Slide Bracket

518325956

$49.99

28

Ornit Rivet 6,5 X 14.5

293150266

$2.40

29

RH Rear Base

518325973

$21.99

30

LH Rear Base | Includes 10v to 10x

518325974

$21.99

31

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

32

LH Roller | Includes 10bd to 10be

518325160

$78.99

33

Seal

518326656

$9.19

34

Front Radiator | Includes 10b to 10b2

518326485

$444.99

35

Clinch Stud M6 X 20

250300027

$2.09

36

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

37

Stavex Rivet

293150144

$0.82

38

Rear Cap

518327105

$22.49

39

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

40

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

41

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

42

Full Moon Dart 5 mm

293730042

$2.21

43

Insert M5 X 0.8

293450268

$2.09

A

Pop Rivet 3/16"

390402300

$0.75

B

Avex Rivet

390909200

$0.30

C

Avex Rivet

390909100

$0.30

D

Stavex Rivet

293150144

$0.82

E

Henrob Rivet

293150146

$2.09

F

Hemlock Rivet, 6.4 mm

293150174

$7.86

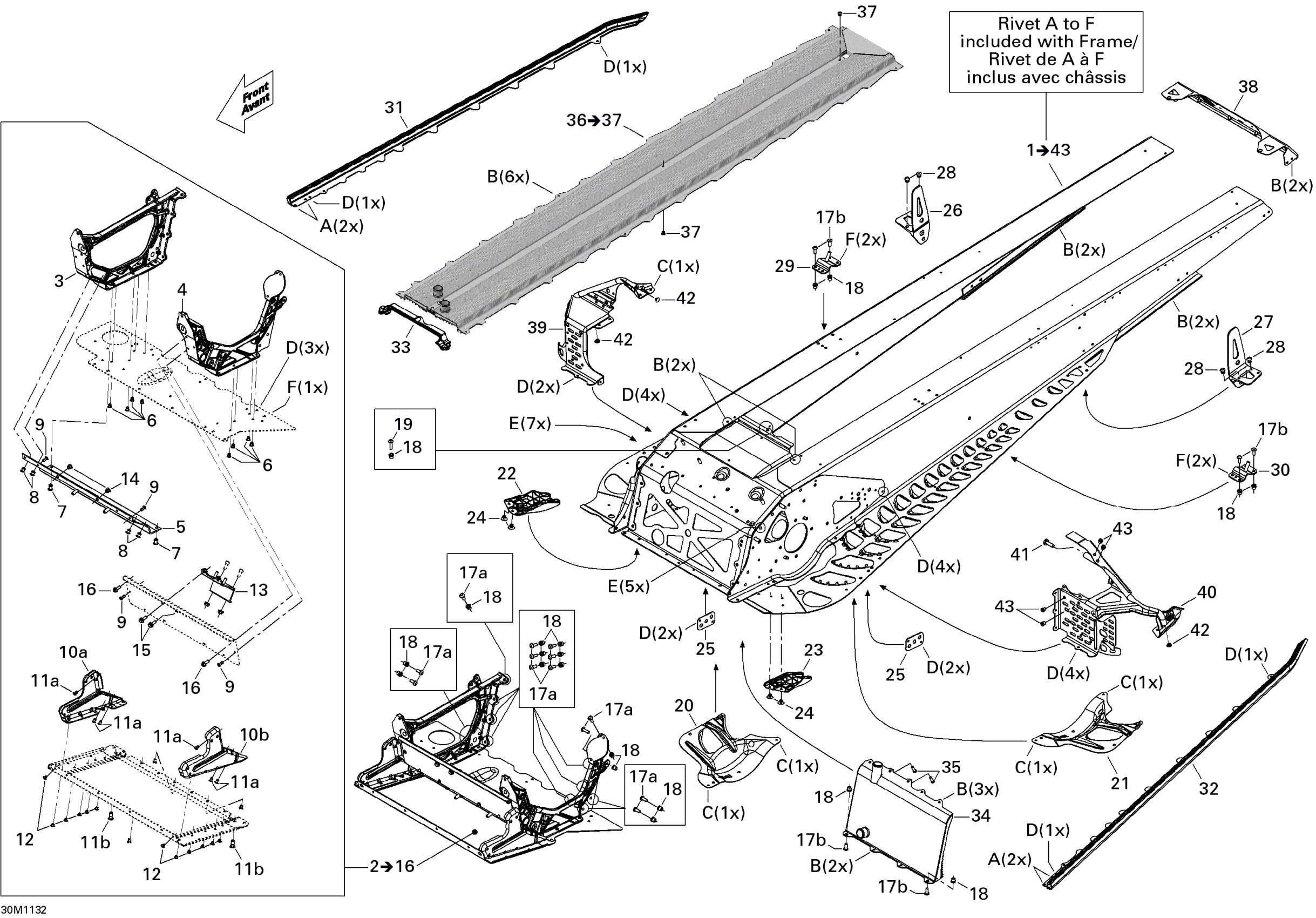

Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS, 2011 Frame Diagram

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

Module E TUNDRA Xtreme | Includes 10av to 10w

RH Member

LH Member

Front Member

Stavex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Monobolt Rivet, 4.8 mm

RH Front Member

LH Front Member

Avex Rivet

Monobolt Rivet 6.4

Avex Rivet

MAG Engine Support | Includes 10a to 10a1

Hemlock Rivet, 6.5 mm

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

RH Reinforcement

LH Reinforcement

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

REINFORCEMENT PLATE - Call your local BRP dealership

RH Slide Bracket

LH Slide Bracket

Ornit Rivet 6,5 X 14.5

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH ROLLER - Call your local BRP dealership

LH Roller | Includes 10bd to 10be

Seal

Front Radiator | Includes 10b to 10b2

Clinch Stud M6 X 20

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

Stavex Rivet

Rear Cap

RH Stirup | Includes 10aa to 10ab

LH STIRUP - Call your local BRP dealership

Torx Screw M8 X 1.25 X 25, Scotch Grip

Full Moon Dart 5 mm

Insert M5 X 0.8

Pop Rivet 3/16"

Avex Rivet

Avex Rivet

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.4 mm
