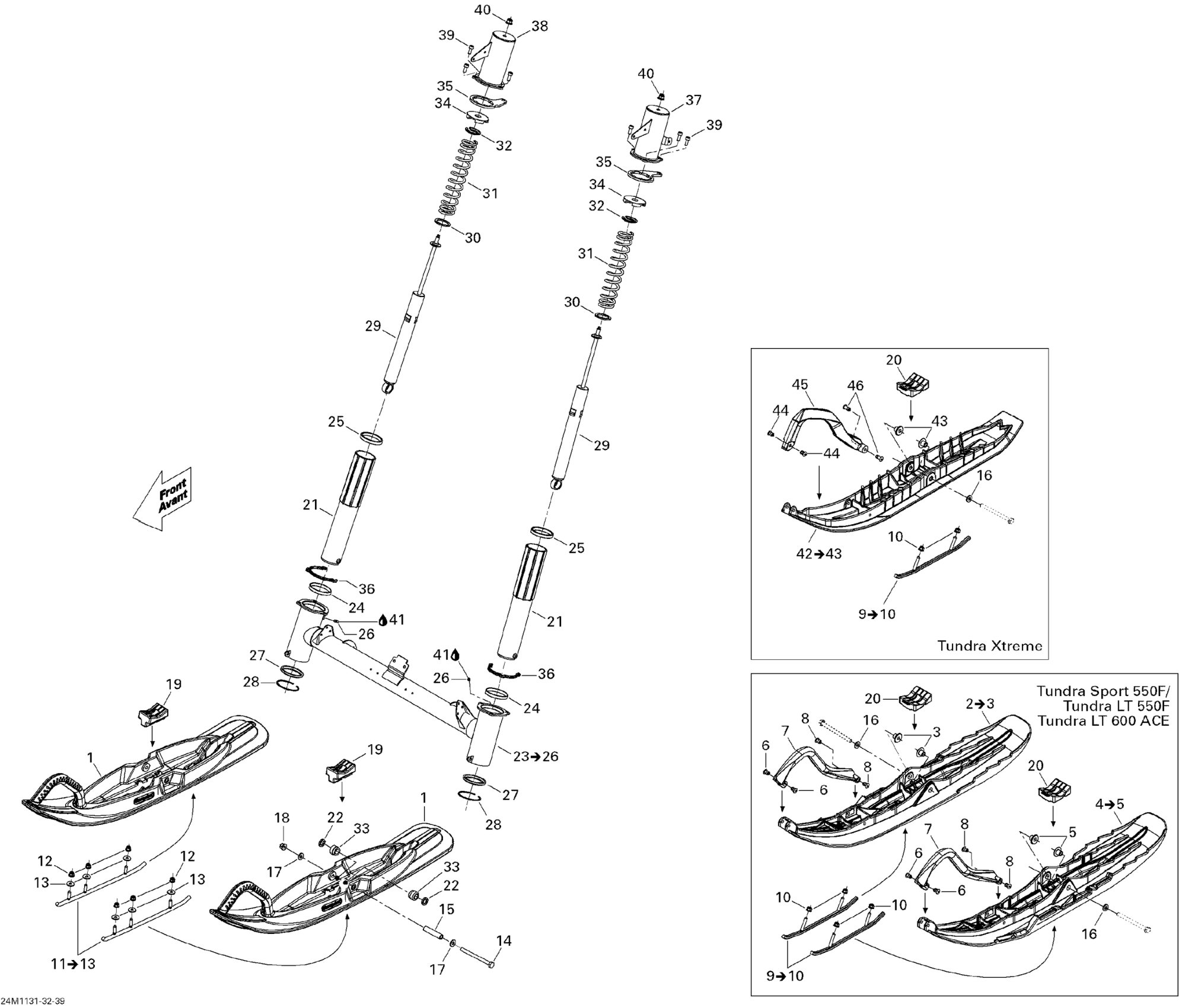

Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS, 2011 Front Suspension And Ski Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Not Available As Spare Parts

XXX

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

15

Spacer

506133300

$19.97

16

Washer

732900049

$0.57

17

Not Available As Spare Parts

XXX

Unavailable

18

Hex. Flange Elastic Nut M10

233201414

$1.26

19

Not Available As Spare Parts

XXX

Unavailable

20

Ski Stopper

505072594

$17.66

21

Ski Leg

505072778

Unavailable

22

Spacer

505072579

$7.58

23

S2 Modul, Ass'y | Includes 400 to 400c

505073497

$487.66

24

Upper Cushion

414803100

$8.42

25

Lower Cushion

414803200

$11.71

26

Grease Fitting

408200700

$2.80

27

Seal Oil

505072696

$46.12

28

Circlip

505072698

$12.89

29

Shock

505073046

$157.66

30

Washer

505072578

$12.55

31

Black, Spring

505072745

$66.89

32

Spring Stopper

505072619

$10.23

33

Cushion

572034500

$9.98

34

Stopper

570025800

$12.65

35

Steering Arm

505073171

$124.58

36

Spacer

505073983

$24.58

37

LH Suspension Cover | Includes 1320 to 1320a

505073449

$61.51

38

RH Suspension Cover | Includes 1330 to 1330a

505073450

$61.51

39

Socket Head Screw M8 X 20

205082044

$1.09

40

Hex. Flange Elastic Nut M10

233201414

$1.26

41

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

42

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$175.35

43

Ski Bushing

505071781

$15.35

44

Retainer 17mm long

505071812

$4.43

45

Black, Handle

505072976

$35.35

46

Retainer 23mm Long

505072133

$5.03
