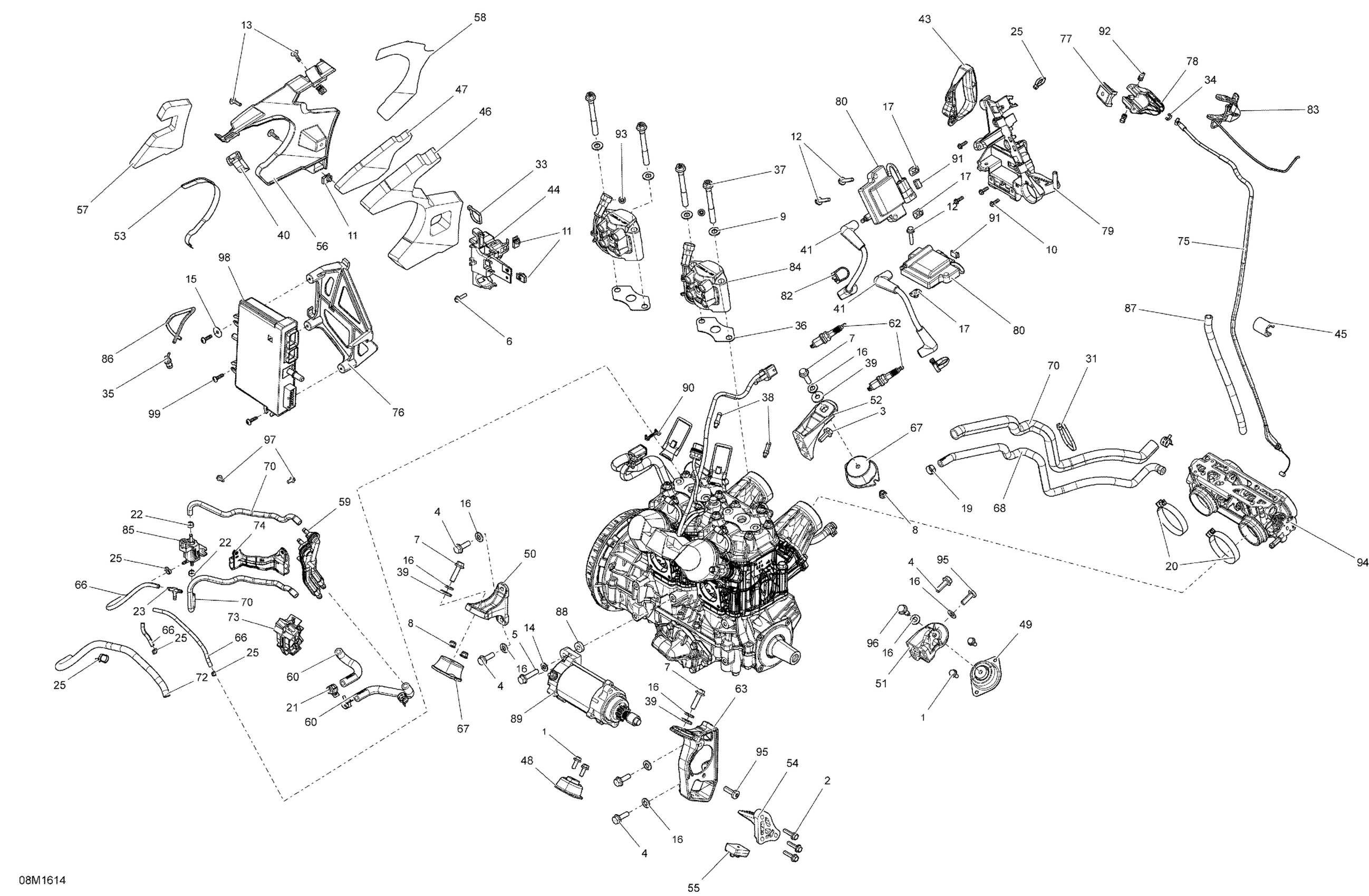

Ski-Doo TUNDRA - Xtreme, 2016 Engine Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

2

Hex. Flange Screw M6 X 25

207562544

$1.60

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

5

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.15

6

Hex.Flange Screw M5 X 20

207652044

$1.79

7

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

9

Flat Washer 10 mm

234001410

$1.12

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

11

Panel Nut M5 X 0.8

250000958

$4.00

12

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.12

13

Torx Screw M5 X 20

250000528

$2.00

14

Flat Washer With Teflon 8 mm

250200008

$3.58

15

Flat Washer

250200040

$1.76

16

Conical Spring Washer M8

250200146

$0.96

17

Nut Welded, M6

293100003

$7.25

19

Oetiker Clamp

293650046

$2.67

20

Gemi Clamp

293650158

$8.09

21

Norma Spring Clamp

293650214

$14.90

22

Crimp Clamp

293650234

$5.06

23

T-Fitting

293710068

$7.57

25

Tie Wrap 94 mm | 4X4

293750001

$0.96

31

Tie Wrap 368 mm

293750008

$0.97

33

Tie-Rap 180 mm

414115200

$0.10

34

Circlip

414274500

$0.85

35

Male Connector

414814100

$2.12

36

Gasket

420430930

$4.46

37

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

38

Hose Nipple

420924724

$14.10

39

Yellow, Washer

503183200

$2.91

40

Velcro Strip

508000599

$11.73

41

Ignition Cable, 177mm long

512061126

$26.84

43

Starter Grip

512060136

$14.10

44

Solenoid Support

512060298

$12.15

45

Protector

512060313

$9.03

46

Interior Noise Foam

512060343

$17.88

47

Upper Exterior Noise Foam

512060344

$9.03

48

Rubber Mount

512060387

$41.01

49

Rubber Mount

512060448

$41.01

50

Front Support, MAG

512060469

$30.57

51

Rear Support, PTO

512060478

$29.07

52

Rear Support, MAG

512060559

$29.07

53

Heat Shield

512060574

$7.13

54

Stopper Support

512060576

$27.58

55

Stopper

512060627

$9.03

56

Noise Shield

512060634

$17.13

57

Lower Exterior Noise Foam

512060665

$6.07

58

Heat Shield

512060666

$5.09

59

Manifold

512060692

$41.76

60

RH Formed Hose

512060694

$7.57

60

LH Formed Hose

512060695

$7.57

62

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$26.84

63

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

66

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

67

Rubber Mount

512060729

$67.88

68

Formed Hose, Output

512060740

$30.57

70

Tubing 16 Mm 1000Mm Long

219704408

$7.15

72

Was 409901700 Tubing (9 mm)

219704399

$77.58

73

Manifold Support

512060769

$10.21

74

Hose Support

512060827

$2.00

75

Throttle Cable

512060851

$72.36

76

Calibrated Module Support

512060858

$12.15

77

Upper Housing

512060859

$8.13

78

Lower Housing

512060860

$16.39

79

Ignition Coils Support

512060888

$10.21

80

Ignition Coil

512060953

$126.09

82

Clamp

512060993

$5.06

83

Handle Ass'y

512061250

$114.15

84

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$330.57

85

Solenoid Valve

270600005

$45.49

86

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

87

Was 409901700 Tubing (9 mm)

219704399

$77.58

88

Washer

515176500

$10.51

89

Starter

515178473

$319.49

90

Locker

515177770

$2.07

91

Clip

710000992

$3.88

92

Flange Screw

732601143

$3.90

93

Push Nut

732610072

$1.97

94

Throttle Body

420889201

$1,191.76

95

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

96

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.00

97

Hex Flange Screw M5 X 11

210251150

$2.00

98

Calibrated Module

512060780

$749.99

99

Torx Screw Truss Head K50X20 T20

250000760

$2.00

100

Spring | Not Shown

512060934

$79.07
