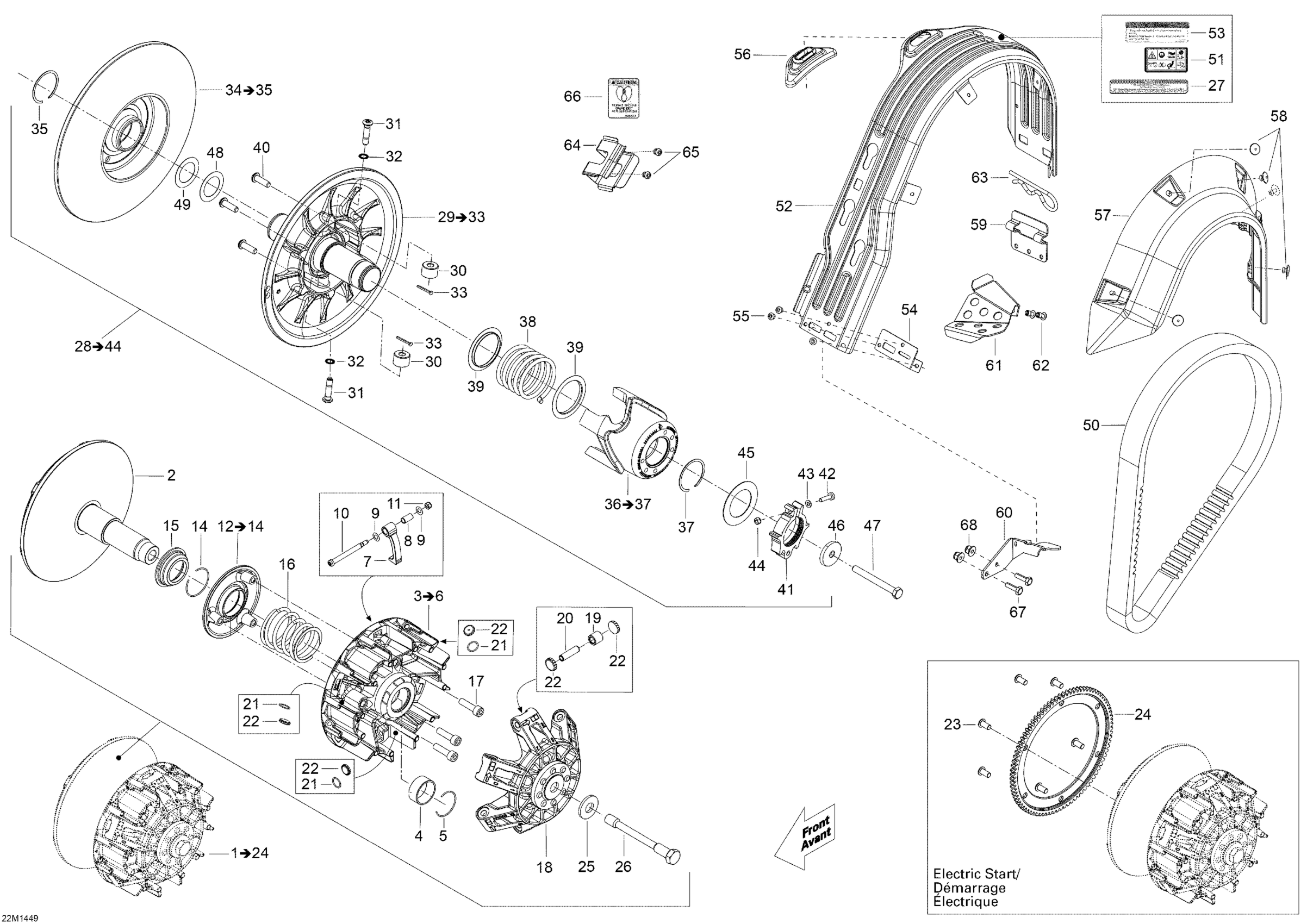

Ski-Doo TUNDRA WT 550F RER XU, 2014 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixe Flange Ass'y

417223534

$149.99

3

Slider Flange Ass'y

417223606

$144.99

4

Not Available As Spare Parts

XXX

Unavailable

5

Circlip

293370065

$0.98

7

Ramp 700 Ass'y This part replaces 417223557.

417223604

$69.99

8

Not Available As Spare Parts

XXX

Unavailable

9

Thrust Washer

417223255

$2.00

10

Ramp Axle

417223694

$11.05

11

Elastic Stop Nut M5

232551414

$0.87

12

Slider Adaptor Ass'y

417223615

$79.99

14

CIRCLIP - Call your local BRP dealership

293370063

Unavailable

15

SPRING SEAT - Call your local BRP dealership

417223155

Unavailable

16

Spring Clutch

417223315

$38.99

17

SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership

250000473

Unavailable

18

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223778

Unavailable

19

Roller

417223767

$11.59

20

Roller Axle

417223257

$6.99

21

O-Ring

293300185

$0.98

22

Slider Shoe

417223919

$6.83

23

Torx Screw M8 X 16

250000751

$6.11

24

Crown Gear Launch

417223476

$164.49

25

Conical Spring Washer M14

250200144

$4.44

26

DRIVE BOLT PULLEY - Call your local BRP dealership

417300407

Unavailable

27

Decal English

516005503

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$359.99

30

Pulley Roller

417127016

$24.49

31

Pivot Stud

417127294

$14.49

32

Lock Washer 8 mm

250200009

$2.11

33

Spring Pin M3 X 30

250400063

$2.11

34

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

35

Circlip

293370049

$4.99

36

Cam Ass'y | Includes 100c to 100c3

417127367

$148.99

37

Circlip

293370049

$4.99

38

Spring

417127061

$46.49

39

Swivel Abutment

417127116

$9.39

40

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

41

Calibration Ass'y

415129604

$21.49

42

Socket Screw M5 X 25

205052544

$1.68

43

Flat Washer M5

234051410

$0.53

44

Elastic Stop Nut M5

232551414

$0.87

45

Washer

417127155

$8.26

46

Strength Washer

517302322

$12.63

47

Hex. Cap Screw M8 X 75

207287544

$5.18

48

Spacer

417300265

$2.29

49

Shim

504112000

$8.59

50

Drive Belt

414860700

$104.99

51

Warning Decal | Europe

516003919

$8.09

52

Belt Guard

417300382

$90.99

53

Security label, Belt Guard

516004649

Unavailable

54

Reinforcement

417300380

$7.29

55

Avex Rivet

390909200

$0.30

56

Guide

417300381

$11.99

57

Side Protector

417300356

$14.76

58

Pop Rivet 3/16"

293150103

$0.55

59

Belt Guard Bracket | Except Package SWT

417300363

$14.49

60

BELT GUARD BRACKET - Call your local BRP dealership

417300451

$31.99

61

Brake Hose Cover | Except Package SWT

518325626

$29.99

62

Rivet Hucklok

293150163

$2.99

63

Hair Pin

114045200

$11.11

64

Bracket

517281905

$18.49

65

Avex Rivet

390909100

$0.30

66

Belt Decal, English

516005511

Unavailable

67

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
