Description

Price

1

Chaincase

504153181

$349.99

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

CHAINCASE COUNTER PLATE - Call your local BRP dealership | Includes 3 to 3,2

518328101

Unavailable

4

Hex. Flange Screw M6 x 20

207662056

$1.01

5

Sleeve

518327966

$7.20

6

Hex. Flange Screw M6 X 70

207667056

$4.44

7

Elastic Flange Nut M6 X 1.0

233261416

$2.11

8

Oil Seal

293200168

$14.49

9

Ball Bearing

293350115

$12.11

10

Circlip

504152576

$9.99

11

Shim

504152628

$10.99

12

Sprocket, 19 Teeth

504153783

$111.49

13

Spring Washer M10

504152784

$7.65

14

HEX. CAP SCREW M10 X 30 - Call your local BRP dealership

250000502

$1.99

15

Oil Seal

293200159

$16.25

16

Ball Bearing

293350059

$30.99

17

Circlip

504152582

$9.99

18

Kit Sprocket This part replaces 504152581.

861805539

$159.99

19

Circlip

504152572

$6.95

20

O-Ring

293300122

$2.11

21

Magnetic Cap

504152619

$23.49

22

Drive Chain, 104 Links

504152629

$179.99

23

Hex. Nut M10 X 1.5

232006414

$1.37

24

Adjustment Screw

504152602

$12.49

25

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

26

Seal Ring

293200128

Unavailable

27

Tensioner chain

504153429

$15.99

28

Slider Chain

504152739

$65.99

29

Tensioner Axle

504152841

$16.34

30

Circlip

504152282

$3.17

31

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

32

Rotation Sensor

504152896

$37.99

34

Tight Seal

293300130

$7.51

35

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.11

37

Cap

504152860

$20.49

38

Male Connector

414580700

$4.12

39

Polyurethane Hose 10000Mm Long

219704410

$56.99

40

O-Ring

293300122

$2.11

41

Magnetic Cap

504152619

$23.49

42

Circlip

504152572

$6.95

43

Bearing Housing

504153187

$29.49

44

Hex. Flange Elastic Nut M8

233281414

$1.47

45

Ball Bearing

293350074

$38.49

46

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

47

Counter Shaft

504153212

$253.99

48

Drive Axle Ass'y | Includes 48 To 51

504153240

Unavailable

49

Retaining Ring

504153886

$21.99

50

Ball Bearing

293350059

$30.99

51

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1.00

52

Not Available As Spare Part - Friction Washer

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

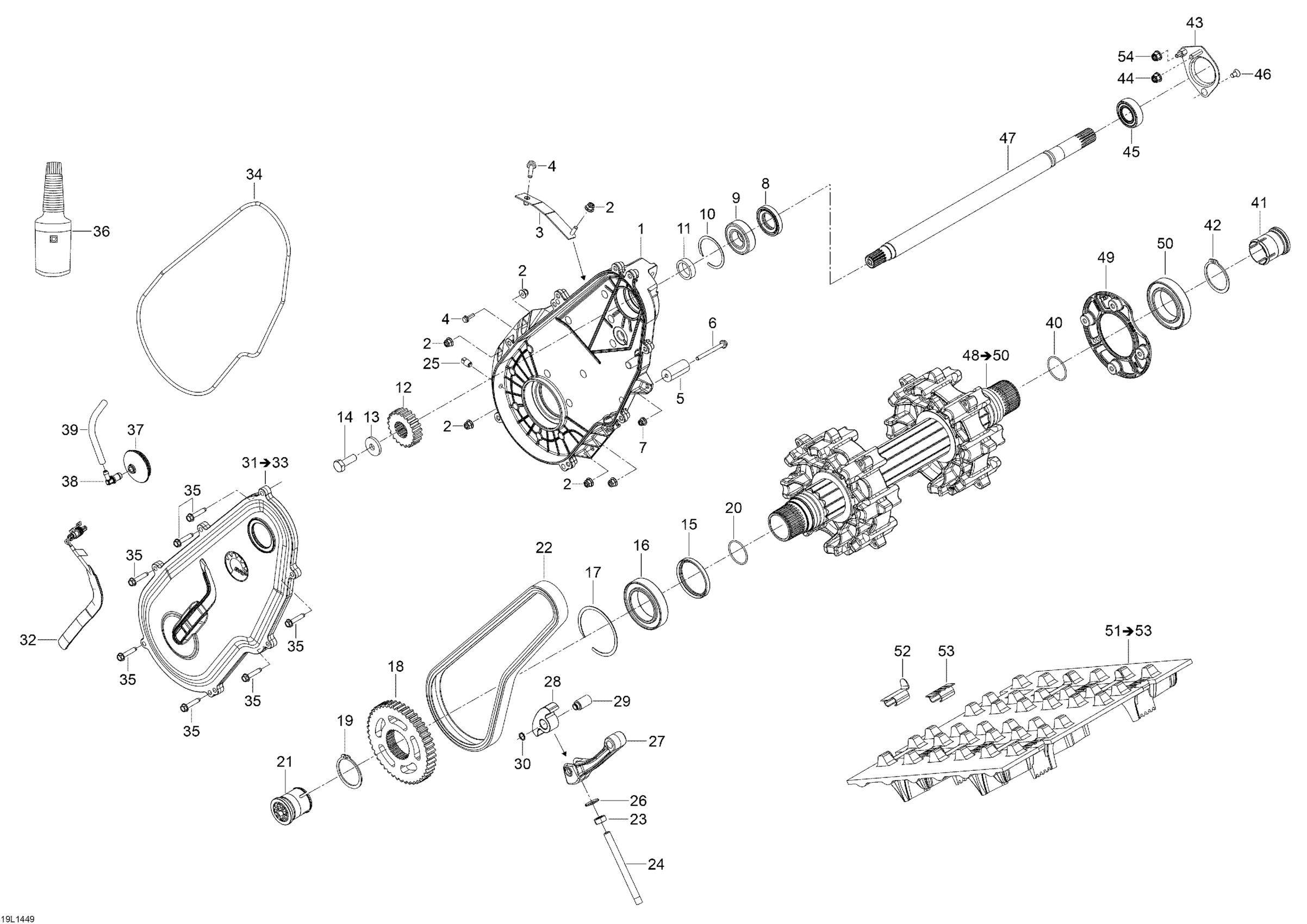

Ski-Doo TUNDRA WT 550F RER XU, 2014 05- Drive System Diagram

Chaincase

Hex. Flange Elastic Nut M6 x 1.0

CHAINCASE COUNTER PLATE - Call your local BRP dealership | Includes 3 to 3,2

Hex. Flange Screw M6 x 20

Sleeve

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket, 19 Teeth

Spring Washer M10

HEX. CAP SCREW M10 X 30 - Call your local BRP dealership

Oil Seal

Ball Bearing

Circlip

Kit Sprocket This part replaces 504152581.

Circlip

O-Ring

Magnetic Cap

Drive Chain, 104 Links

Hex. Nut M10 X 1.5

Adjustment Screw

Magnetic Plug 1/8 - 27 NPTF

Seal Ring

Tensioner chain

Slider Chain

Tensioner Axle

Circlip

Chaincase Cover Ass'y | Includes 1700 to 1700c

Rotation Sensor

Tight Seal

Hex. Flange Screw M6 X 1.0 X 30

Cap

Male Connector

Polyurethane Hose 10000Mm Long

O-Ring

Magnetic Cap

Circlip

Bearing Housing

Hex. Flange Elastic Nut M8

Ball Bearing

Torx Screw M8 X 16, Scotch Grip

Counter Shaft

Drive Axle Ass'y | Includes 48 To 51

Retaining Ring

Ball Bearing

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Hex. Flange Elastic Nut M6 x 1.0
