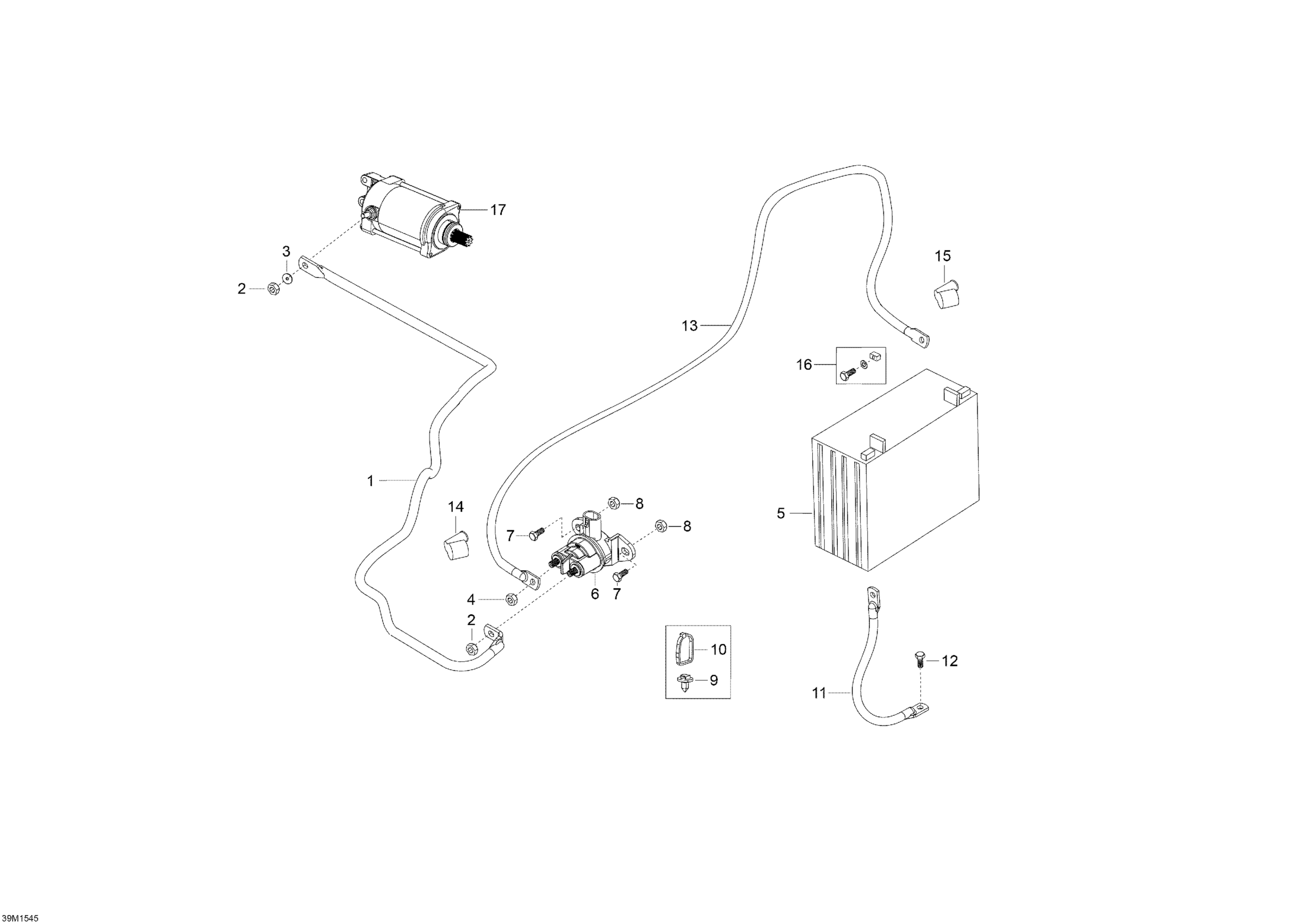

Ski-Doo Tundra WT 550 RER, 2015 Battery And Starter _39M1545 Diagram

Description

Price

Battery Wire

515177605

Unavailable

Elastic Stop Nut M6

232561434

$1.55

Flat Washer 6 mm

234061410

$1.04

Elastic Stop Nut M6

232561434

$1.55

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Starter Relay

278003012

$35.07

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Mount Dart

293730040

$0.86

Tie-Rap 180 mm

414115200

$0.09

Ground Wire

515176780

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Battery Cable

515176967

Unavailable

Protector Cap

710000495

$10.14

Protector Cap

710000495

$10.14

Battery Bolt Kit

250000282

$2.95

Starter

515178473

$319.49
