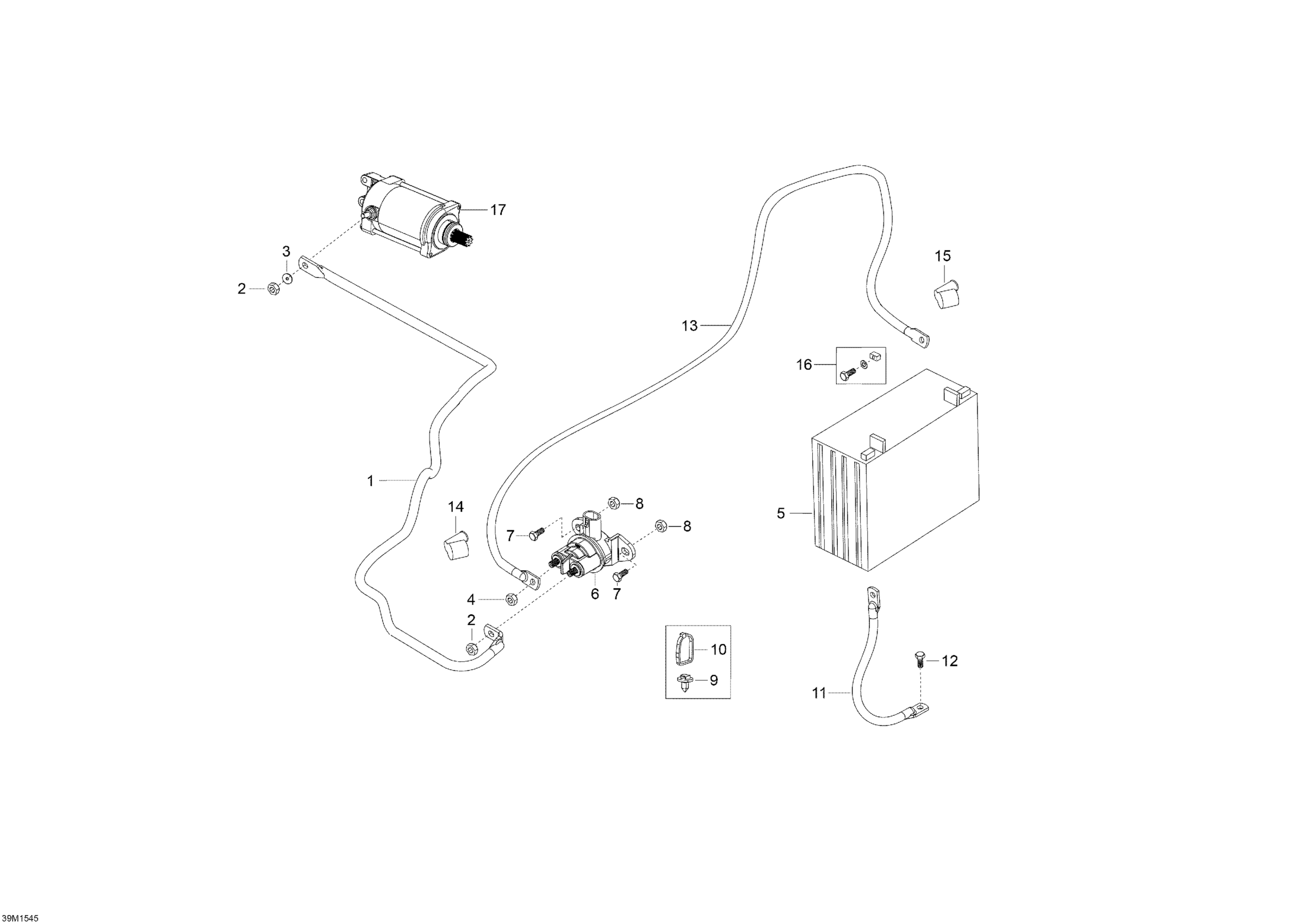

Ski-Doo Tundra WT 550 RER, 2015 Battery And Starter _39M1545 Diagram

#

Description
Price

1

Battery Wire

515177605

$28.99

2

Elastic Stop Nut M6

232561434

$1.99

3

Flat Washer 6 mm

234061410

$1.36

4

Elastic Stop Nut M6

232561434

$1.99

5

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

6

Starter Relay

278003012

$42.49

7

Hex. Flange Screw M6 X 16

207661644

$0.74

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Mount Dart

293730040

$1.04

10

Tie-Rap 180 mm

414115200

$0.11

11

Ground Wire

515176780

Unavailable

12

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

13

Battery Cable

515176967

$83.49

14

Protector Cap

710000495

$10.99

15

Protector Cap

710000495

$10.99

16

Battery Bolt Kit

250000282

$7.29

17

Starter

515178473

$319.49
