Description

Price

1

FRAME XU 552 FC SC-5 RER - Call your local BRP dealership | Includes 1 To 31

518328209

$4.00

2

MODULE E - Call your local BRP dealership | Includes 2 To 11

518328189

Unavailable

3

RH Member

518326795

$284.99

4

LH Member

518325558

$249.99

5

Front Member | Includes 10as to 10at

518325818

$58.99

6

Clinch Nut Hexsert M8

605636002

$7.51

7

Avex Rivet

390909100

$0.30

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Muffler Support

518327219

Unavailable

11

Rivet Hucklok

293150163

$2.99

12

Fastening rail

518326107

$18.49

13

FOOTREST LH - Call your local BRP dealership

518326895

Unavailable

13

FOOTREST RH - Call your local BRP dealership

518326896

Unavailable

14

Fastening Bracket

605355235

$56.99

15

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$78.99

17

Seat Box Bracket

518327457

$31.99

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

19

Clinch Nut plate

518326430

$44.49

20

LH Frame Corner

518325524

$56.99

20

RH Frame Corner

518328024

$52.99

21

Adhesive Patch

518325560

$4.69

22

RH Support

518326520

$15.49

23

Chain Case Support

518327877

$15.49

24

Rear Profile

518328748

$234.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

26

Hemlock Rivet, 6.4 mm

293150174

$7.86

27

Avex Rivet

390909100

$0.30

28

Avex Rivet

390909200

$0.30

29

Hemlock Rivet, 6.5 mm

293150119

$4.29

30

Rivet

293150183

$2.11

31

Hemlock Rivet, 6.5 mm

293150096

$3.27

32

Chain Case Counter Plate Front

518328028

$17.49

33

Chain Case Counter Plate Rear

518328029

$18.49

34

Pop Rivet 3/16"

390402200

$0.35

35

Engine Support

518326719

$43.49

36

Rivet Hucklok

293150163

$2.99

37

Avex Rivet

390909200

$0.30

38

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

39

LH Footboard Support Tube

518326963

$139.99

39

RH Footboard Support Tube

518326964

$139.99

40

Avex Rivet

390909100

$0.30

41

Hex. Flange Screw M6 x 20

207662056

$1.01

42

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

42

Toe Hook RH

518328103

Unavailable

43

Avex Rivet

390909200

$0.30

44

Clinch Nut M6 Hexsert

605636003

$4.23

45

Black, Dart

414644300

$0.98

46

Fastening Bracket

518327878

$27.99

47

Hex. Flange Screw M6 x 20

207662056

$1.01

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

49

Torx Screw M6 X 16

250000223

$2.11

50

Spring Bracket

514054846

$4.69

51

Avex Rivet

390909200

$0.30

52

S Module | Includes 300 to 300a

518326213

$839.99

53

Avex Rivet

390909200

$0.30

54

Hex. Flange Screw M6 X 25

207662544

$0.64

55

Hex. Flange Screw M6 X 25

207662544

$0.64

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

57

Avex Rivet

390909100

$0.30

58

Avex Rivet

390909200

$0.30

59

Pulley Support

518328434

$144.99

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

61

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

62

Front Member Ass'y | Includes 700 to 700d

518327004

$539.99

63

LH Bumper Fastener

502007077

$54.99

63

RH Bumper Fastener

502007078

$54.99

64

Avex Rivet

390909200

$0.30

65

Hex. Flange Screw M6 X 20

207662044

$2.00

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

67

Flat Washer

224061201

$1.37

68

Hex. Flange Screw M6 X 20

207662044

$2.00

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

70

Hex. Flange Screw M6 X 20

207662044

$2.00

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Avex Rivet

390909200

$0.30

73

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

$199.99

74

Hex. Flange Screw M6 x 20

207662056

$1.01

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Hex. Flange Screw M6 X 25

207662556

$4.44

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

78

Upper Lateral Column Support

518325114

$22.49

79

Hex. Flange Screw M6 x 20

207662056

$1.01

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

81

Upper Column

518327876

$28.99

82

Hex. Flange Screw M6 X 25

207662556

$4.44

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

84

Adhesive Patch

518325560

$4.69

85

Hex. Flange Screw M6 X 20

207662044

$2.00

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

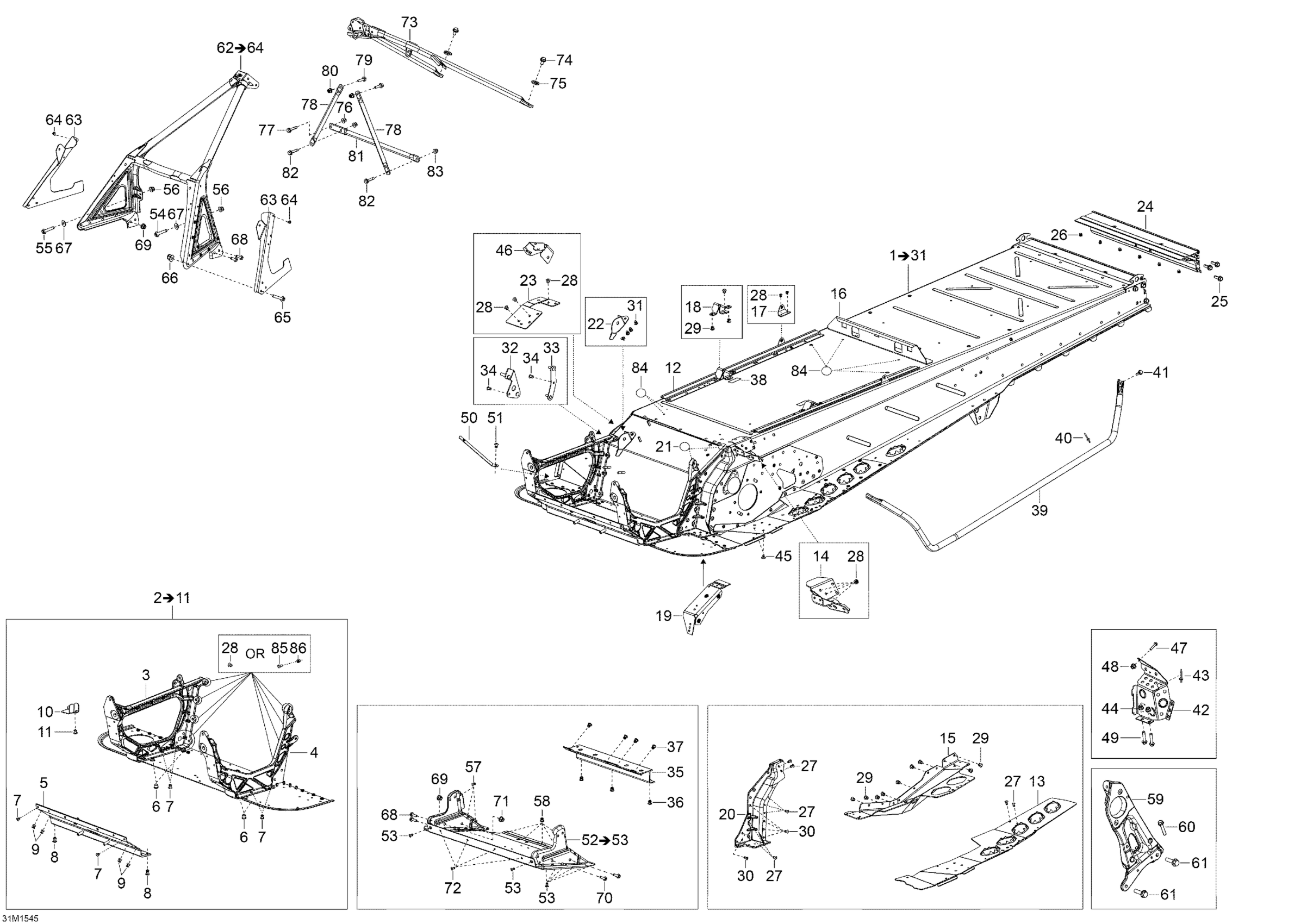

Ski-Doo Tundra WT 550 RER, 2015 09- Frame _31M1545 Diagram

FRAME XU 552 FC SC-5 RER - Call your local BRP dealership | Includes 1 To 31

MODULE E - Call your local BRP dealership | Includes 2 To 11

RH Member

LH Member

Front Member | Includes 10as to 10at

Clinch Nut Hexsert M8

Avex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Muffler Support

Rivet Hucklok

Fastening rail

FOOTREST LH - Call your local BRP dealership

FOOTREST RH - Call your local BRP dealership

Fastening Bracket

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

BATTERY SUPPORT PLATE - Call your local BRP dealership

Seat Box Bracket

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

Clinch Nut plate

LH Frame Corner

RH Frame Corner

Adhesive Patch

RH Support

Chain Case Support

Rear Profile

Hex. Flange Screw M8 X 25, Scotch Grip

Hemlock Rivet, 6.4 mm

Avex Rivet

Avex Rivet

Hemlock Rivet, 6.5 mm

Rivet

Hemlock Rivet, 6.5 mm

Chain Case Counter Plate Front

Chain Case Counter Plate Rear

Pop Rivet 3/16"

Engine Support

Rivet Hucklok

Avex Rivet

RUBBER COVER - Call your local BRP dealership

LH Footboard Support Tube

RH Footboard Support Tube

Avex Rivet

Hex. Flange Screw M6 x 20

TOE HOOK LH - Call your local BRP dealership

Toe Hook RH

Avex Rivet

Clinch Nut M6 Hexsert

Black, Dart

Fastening Bracket

Hex. Flange Screw M6 x 20

Hex. Flange Elastic Nut M6 x 1.0

Torx Screw M6 X 16

Spring Bracket

Avex Rivet

S Module | Includes 300 to 300a

Avex Rivet

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Avex Rivet

Avex Rivet

Pulley Support

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 30, Scotch Grip

Front Member Ass'y | Includes 700 to 700d

LH Bumper Fastener

RH Bumper Fastener

Avex Rivet

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Avex Rivet
