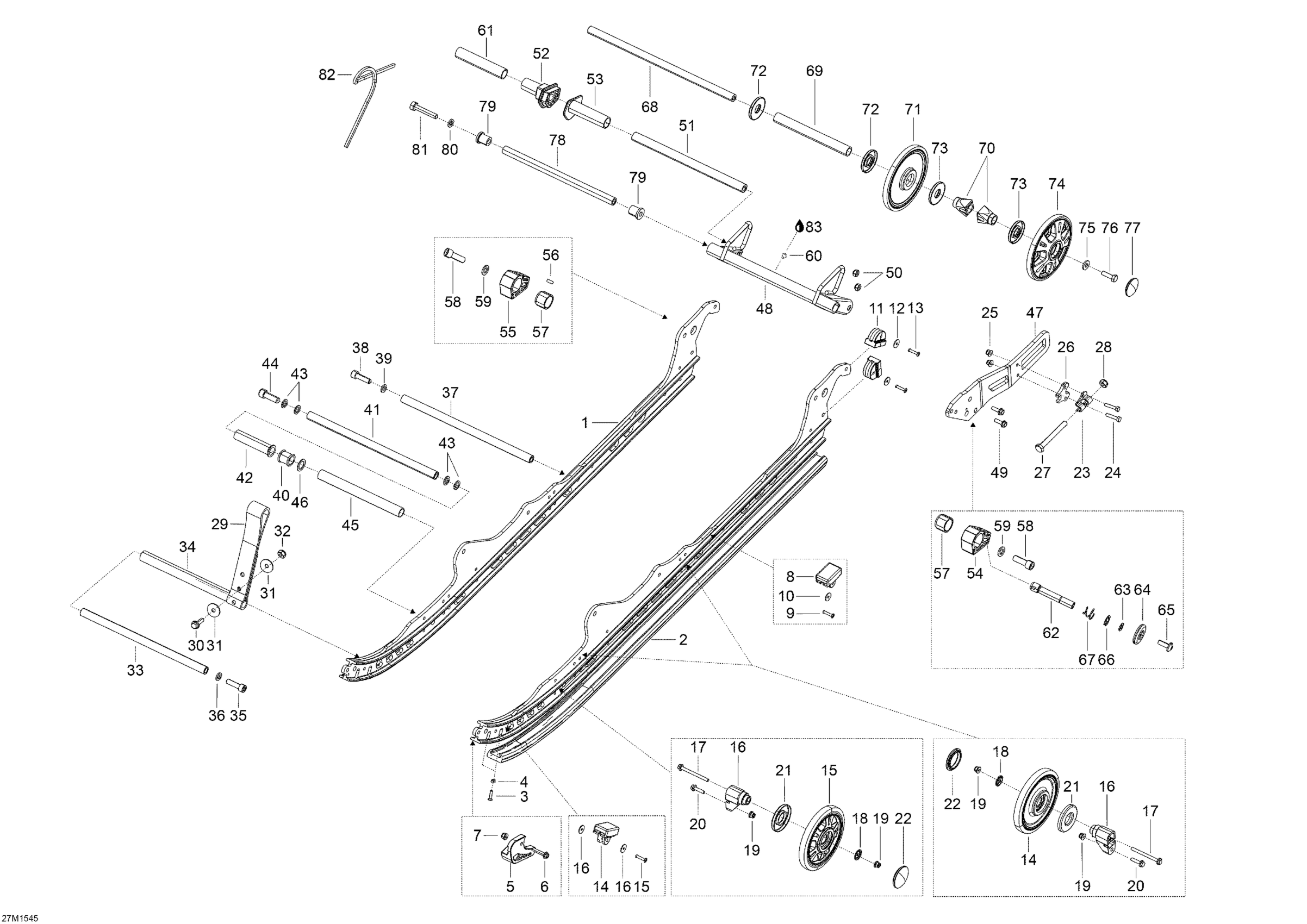

Ski-Doo Tundra WT 550 RER, 2015 Rear Suspension A _27M1545 Diagram

#

Description
Price

1

Runner | Model-LE

503193397

$217.13

2

Slider 137

503191619

$32.06

3

Phillips Screw M6 X 25

208562531

$2.00

4

Elastic Stop Nut M6

232561434

$1.78

5

Runner Protector

503192299

$23.10

6

Hex. Flange Screw M5 X 25

207652544

$0.48

7

Flange Elastic Nut M5

233251434

$1.91

8

Rubber Stopper

503190576

$9.93

9

Pop Rivet 3/16"

293150142

$2.04

10

Washer

503191273

$1.03

11

Rubber Stopper

503191291

$17.88

12

Pop Rivet 3/16"

293150142

$2.04

13

Washer

503191273

$1.03

14

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

15

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

16

Casted Support

503193894

$12.37

17

Hex. Flange Screw M6 X 70

207667056

$4.15

18

Wheel Cup M6

503191820

$4.52

19

Hex. Flange Elastic Nut M6

233261466

$1.91

20

Hex. Flange Screw M6 X 25

207662556

$4.15

21

Labyrinth Seal

503190434

$4.16

22

Black, Wheel Cap

503192771

$2.21

23

Tensioner

503192583

$5.67

24

Hex. Cap Screw M6 X 30

207063054

$5.06

25

Hex. Flange Elastic Nut M6

233261466

$1.91

26

Spacer

503193250

$13.54

27

Hex Screw M10 x 100

230100054

$6.07

28

Elastic Locking Nut M10

233601466

$2.00

29

Stopper Strap

503192360

$19.37

30

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

31

Flat Washer

224081301

$0.84

32

Hex. Flange Elastic Nut M8

233281414

$1.31

33

Axle Strap

503191418

$53.70

34

Spacer

503191419

$2.21

35

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

36

Washer

503189564

$0.70

37

Axle Strap

503191418

$53.70

38

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

39

Washer

503189564

$0.70

40

Bushing

503189271

$10.15

41

Shaft

503193967

$124.60

42

Center Bushing

503191259

$8.70

43

Washer

503189276

$3.10

44

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

45

Spacer

503191421

$44.75

46

Washer

503189273

$3.10

47

Rail Pivot RH

503192435

$81.31

47

Rail Pivot LH

503192434

$81.31

48

Welded Pivot | Includes 100c to 100c3

503191414

$93.25

49

Hex. Flange Screw M8 X 25

207682534

$1.03

50

Hex. Elastic Stop Nut M8

232581414

$0.54

51

Cam Axle

503191711

$26.09

52

RH Spring Cam

503191190

$13.37

53

LH Spring Cam

503191668

$9.88

54

LH Block

503192426

$12.31

55

RH Block

503192427

$12.31

56

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

57

Block Guide

503189488

$36.54

58

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

59

Washer | 7415/7416. 7417/7418.

503189148

$2.64

60

Grease Fitting

408200700

$3.21

61

Spacer

503191713

$9.93

62

Rode

503192437

$5.67

63

Flat Washer M5

234051410

$0.51

64

Handle

503192438

$4.52

65

Torx Screw M5 X 14

250000742

$1.37

66

Circlip

293370068

$0.90

67

Compression Spring

503192436

$36.54

68

Rear Axle

503191408

$65.64

69

Spacer

503196316

$26.09

70

Rear Wheel Spacer

503190428

$5.88

71

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$48.48

72

Labyrinth Seal

503190682

$5.67

73

Labyrinth Seal

503190434

$4.16

74

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$48.48

75

Washer

503190439

$5.64

76

Hex. Screw With Nylon

250000019

$1.63

77

Black, Wheel Cap

503192771

$2.21

78

Lower Shaft

503191390

$26.84

79

Bushing

503189324

$10.84

80

Washer

503192496

$0.73

81

Hex. Screw S.Grip M10 X 55

250000605

$7.09

82

Spring

503194624

$29.07

83

Not Available As Spare Part - Friction Washer

Unavailable
