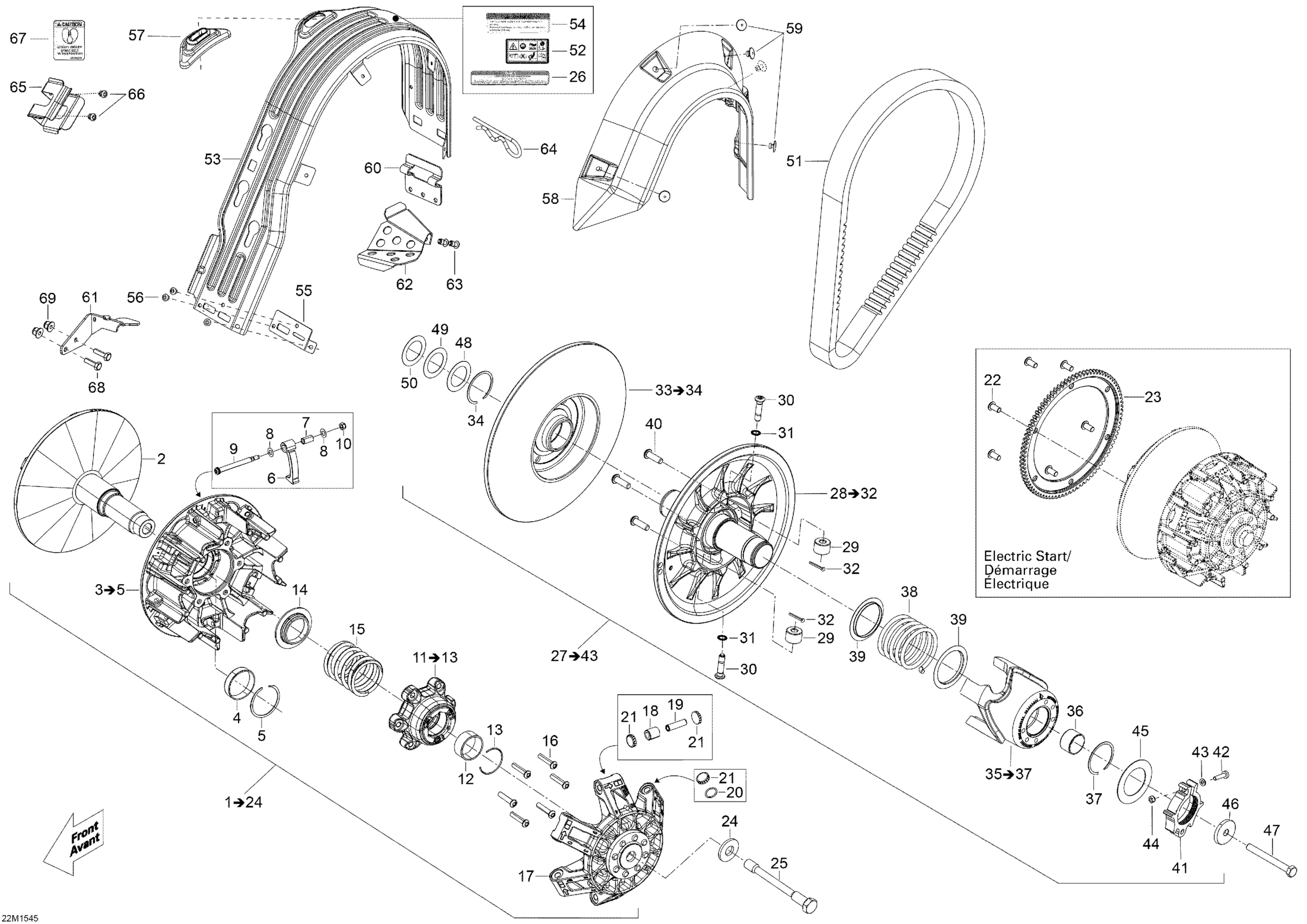

Ski-Doo Tundra WT 550 RER, 2015 Pulley System _22M1545 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIX FLANGE ASS'Y - Call your local BRP dealership This part replaces 417223870.

417223870

Unavailable

3

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$198.43

4

Bushing

417222758

$20.74

5

Circlip

293370037

$3.02

6

Ramp 700 Ass'y This part replaces 417223557.

417223604

$32.28

7

Not Available As Spare Parts

XXX

Unavailable

8

Thrust Washer

417223255

$1.97

9

Ramp Axle

417223694

$4.60

10

Elastic Stop Nut M5

232551414

$0.72

11

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$39.97

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Circlip

293370065

$0.95

14

Seat Spring

417223752

$13.43

15

Spring Clutch

417223748

$14.75

16

Torx Screw M6 X 30

250000580

$5.02

17

Governor Cup Ass'y

417223865

$179.97

18

Roller

417223767

$7.37

19

Roller Axle

417223257

$7.74

20

O-Ring

293300185

$0.95

21

Slider Shoe

417223919

$3.68

22

Torx Button Head Screw M8 X 16

250000706

$1.97

23

Crown Gear Launch

417223476

$161.51

24

Conical Spring Washer M14

250200144

$3.63

25

Pulley Drive Bolt

417300432

$42.99

26

Decal English

516005503

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$336.89

29

Pulley Roller

417127016

$23.05

30

Pivot Stud

417127294

$13.58

31

Lock Washer 8 mm

250200009

$2.06

32

Spring Pin M3 X 30

250400063

$1.74

33

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

34

Circlip

293370049

$4.71

35

Cam Ass'y | Includes 100c to 100c3

417127367

$153.05

36

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

37

Circlip

293370049

$4.71

38

Spring

417127061

$45.35

39

Swivel Abutment

417127116

$8.06

40

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

41

Calibration Ass'y

415129604

$22.49

42

Socket Screw M5 X 25

205052544

$1.34

43

Flat Washer M5

234051410

$0.44

44

Elastic Stop Nut M5

232551414

$0.72

45

Washer

417127155

$8.03

46

Strength Washer

517302322

$11.09

47

Hex. Cap Screw M8 X 75

207287544

$4.24

48

Spacer

417300252

$5.17

49

Spacer

417300265

$2.12

50

Shim

504112000

$6.05

51

Drive Belt

414860700

$154.58

52

Warning Decal | Europe

516003919

$7.65

53

Belt Guard

417300382

$85.35

54

Security Label, Belt Guard

516006900

Unavailable

55

Reinforcement

417300380

$5.17

56

Avex Rivet

390909200

$0.29

57

Guide

417300381

$9.23

58

Side Protector

417300356

$13.25

59

Pop Rivet 3/16"

293150103

$0.54

60

Belt Guard Bracket | Except Package SWT

417300363

$12.20

61

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

62

Brake Hose Cover | Except Package SWT

518325626

$28.43

63

Rivet Hucklok

293150163

$2.82

64

Hair Pin

114045200

$10.69

65

Bracket

517281905

$15.35

66

Avex Rivet

390909100

$0.29

67

Belt Decal, English

516005511

Unavailable

68

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
