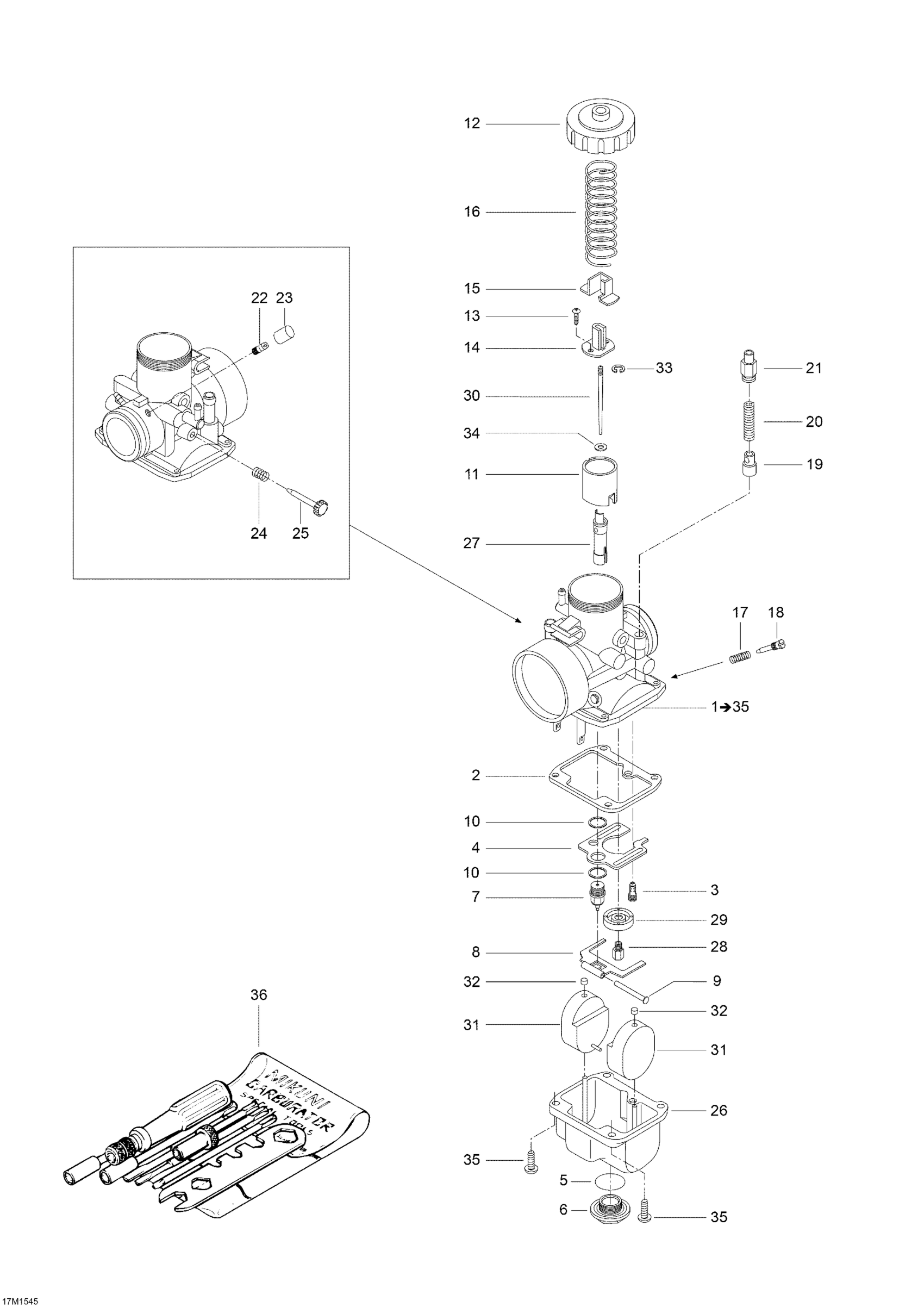

Ski-Doo Tundra WT 550 RER, 2015 Carburetor _17M1545 Diagram

#

Description
Price

1

Carburetor VM30-219, PTO

403138814

$312.49

1

Carburetor VM30-218, MAG

403138813

$322.49

2

Gasket | Includes 1900a to 1900am

404104200

$6.38

3

Pilot Jet 35

404102700

$5.21

4

Not Available As Spare Part - Friction Washer

Unavailable

5

O-Ring

404107300

$9.06

6

Drain Plug Screw

404107400

$22.99

7

Needle Valve 1.2

404147500

$42.49

8

Float Lever

404107600

$22.99

9

Lever Pin

404103300

$6.27

10

Seat Washer

404101600

$3.29

11

Piston Valve 2.5

404128400

$127.49

12

Cover

404103700

$31.99

13

Screw With Washer

404121300

$4.14

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Cover

404122100

$19.49

16

Spring

404154800

$23.99

17

Spring

404101800

$4.25

18

Air Screw

404102300

$14.35

19

Plunger Ass'y

404162130

$31.99

19

Plunger Ass'y

404162130

$31.99

20

Spring

404162131

$16.86

20

Spring

404162131

$16.86

21

Guide Holder

404162132

$34.99

21

Guide Holder

404162138

$41.49

22

Nipple

404153400

$12.16

23

Cap

404156600

$17.08

24

Spring

404101700

$4.14

25

Idle Speed Screw

404109700

$19.49

26

FLOAT BODY - Call your local BRP dealership

404162133

$67.99

26

FLOAT BODY - Call your local BRP dealership

404162133

$67.99

27

Needle Jet

404162124

$41.49

28

Main Jet MJ 200

404112300

$5.21

28

Main Jet 190

404119000

$5.21

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Needle, J8-6BFY46

404162113

$31.99

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Cap

404105800

$6.38

33

E-Ring

404152400

$7.27

34

Packing

404117000

$3.29

35

Screw With Lock Washer

404102000

$3.18

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
