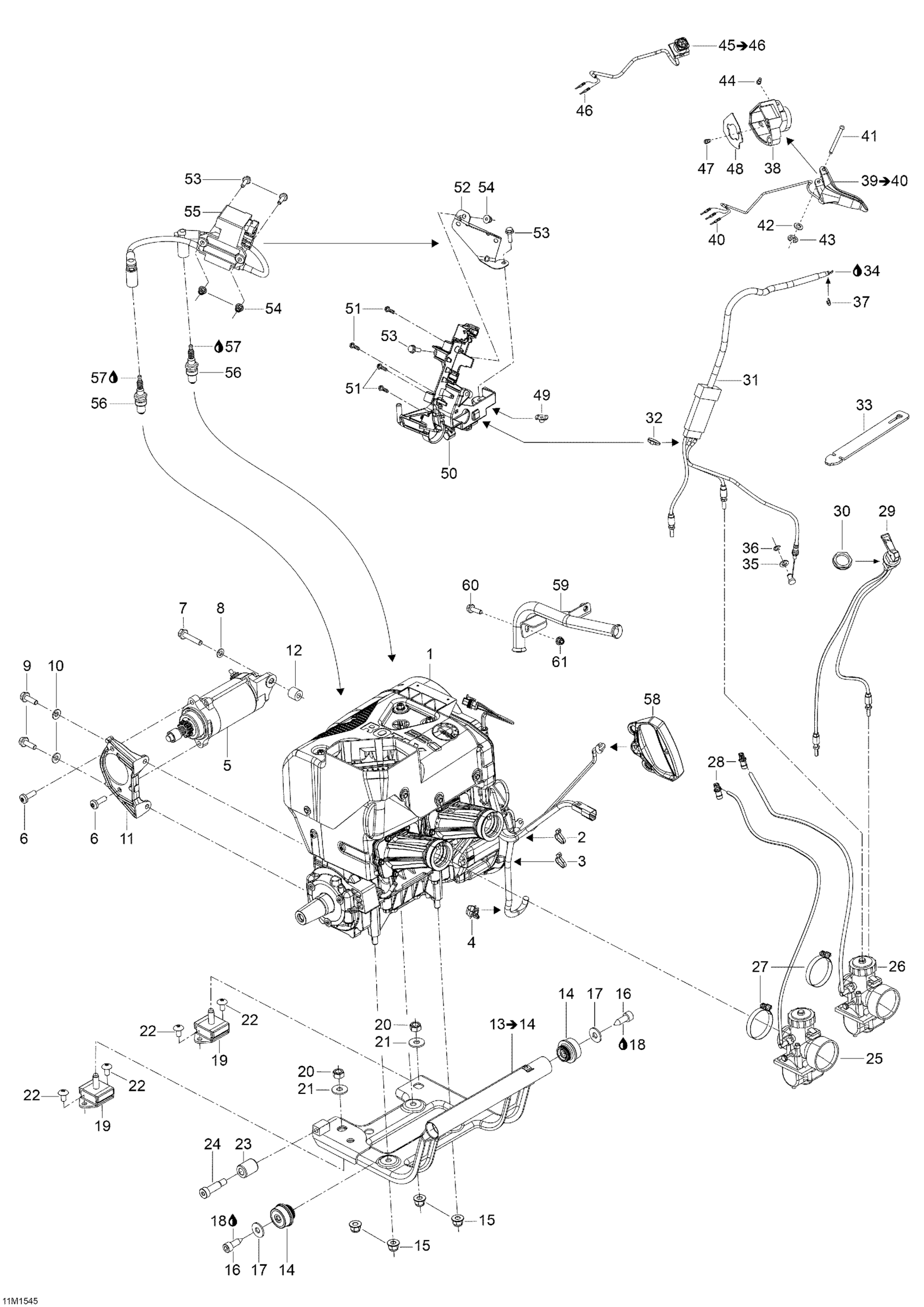

Ski-Doo Tundra WT 550 RER, 2015 Engine _11M1545 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Tie-Rap 180 mm

414115200

$0.10

3

Tie-Rap 180 mm

414115200

$0.10

4

Tie Rap Mount (screwable)

515176795

$4.96

5

Starter

515178473

$319.49

6

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

7

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$6.85

8

Flat Washer With Teflon 8 mm

250200008

$3.58

9

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

10

Conical Spring Washer M8

234281474

$1.43

11

Support

512060656

$55.19

12

Spacer

515176597

$13.18

13

Engine Support Ass'y | Includes 1000 to 1000a

512060637

$189.99

14

Rubber Mount

512059691

$43.25

15

Hex. Flange Elastic Nut M10

233201414

$1.45

16

Screw M10 X 30

250000094

$22.36

17

Flat Washer M10 | 4X4

250200014

$1.34

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Rubber Mount

512060564

$38.78

20

Elastic Stop Nut M10

232500416

$1.79

21

Flat Washer M10 | 4X4

250200014

$1.34

22

Torx Truss Screw M8 X 16

250000746

$3.19

23

Stopper

512060395

$17.13

24

Socket Head Screw, Scotch Grip

250000463

$7.09

25

Carburetor VM30-219, PTO

403138814

$290.27

26

Carburetor VM30-218, MAG

403138813

$322.49

27

Gemi Clamp | Not Shown

512059834

$10.21

28

Male Connector

414814100

$2.12

29

Choke Cable

512060676

$90.27

30

Plastic Nut

512060671

$0.96

31

Throttle Cable

512060885

$73.85

32

Tie-Rap 180 mm

414115200

$0.10

33

Rubber Strap

293850117

$7.13

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Flat Washer 8 mm, Nylon

234081100

$1.15

36

Circlip

414753500

$0.67

37

Circlip

414274500

$0.85

38

Throttle Housing

512060603

$10.25

39

Handle Ass'y | Includes 3820 to 3820a

512061251

$87.28

40

Male Terminal

515175232

$1.45

41

Lever Pin

414438700

$10.81

42

Flat Washer M5, Stainless

234051600

$0.73

43

Circlip

293370050

$0.45

44

Socket Set Screw M8 X 10

414440800

$3.88

45

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

46

Male Terminal

515175232

$1.45

47

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

48

Plate

512060390

$9.03

49

Nut Welded, M6

293100003

$7.25

50

Coils Support

512060924

$9.03

51

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

52

Coils Support

512060460

$17.88

53

Hex. Flange Screw M6 X 20

207662044

$1.91

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

55

Calibrated Module

512060324

$569.99

56

Spark Plug NGK BR9ECS-5

512059552

$11.13

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Starter Grip

512060136

$14.10

59

Guide Tube RER

512060920

$44.75

60

Hex. Flange Screw M6 X 25

207662556

$4.15

61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
