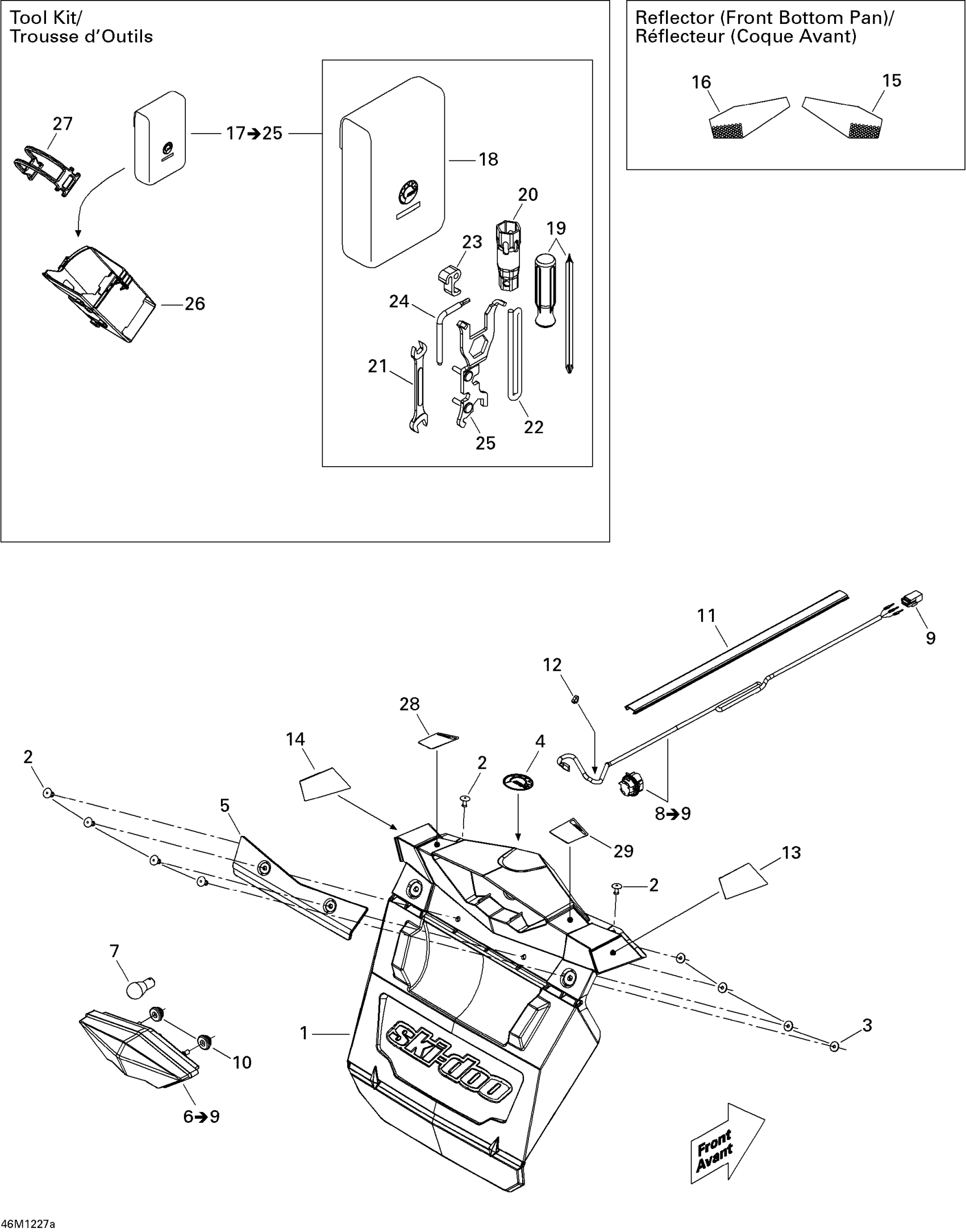

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2012 09- Utilities STD Diagram

#

Description
Price

1

Snow Guard

520000702

$63.99

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.19

4

BRP Logo 48 mm

219903305

$19.99

5

Reinforcement

520000751

$20.99

6

Rear Light Ass'y

520000679

$105.99

7

Bulb

520000758

$9.10

8

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

9

Male Housing, 3 Circuits

515175494

$16.18

10

Stopper Rubber

705014429

$5.95

11

Radiator Trim

520000829

$21.99

12

Tie Wrap 142 mm

293750002

$1.25

13

Red, RH Rear Reflector

520001162

$20.99

14

Red, LH Rear Reflector

520001161

$41.99

15

Yellow, RH Front Reflector

520000891

$16.99

16

Yellow, LH Front Reflector

520000892

$16.99

17

Tool Kit | Includes 20 To 28

529000065

$55.99

18

Not Available As Spare Part - Friction Washer

Unavailable

19

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

22

Was 412500100 Rope-Starter

219704403

$158.99

23

Starter Grip

529000060

$14.15

24

Spacing Tool

520001142

$10.52

25

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

26

Tool Kit Rack

520000894

$14.99

27

Latch

520000528

$7.69

28

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

29

Warning Decal, Safety

516005058

Unavailable
