Description

Price

1

Snow Guard

520000949

$81.49

2

Pop Rivet 3/16"

293150100

$1.09

3

Washer

517124300

$0.19

4

BRP Logo 48 mm

219903305

$19.99

5

Radiator Trim

520000829

$21.99

6

Red, RH Rear Reflector

520000881

$16.99

6

Yellow, RH Rear Reflector

520000883

$16.99

7

Red, LH Rear Reflector

520000880

$16.99

7

Yellow, LH Rear Reflector

520000882

$16.99

8

Yellow, RH Front Reflector

520000891

$16.99

9

Yellow, LH Front Reflector

520000892

$16.99

10

Amber, Reflector

520000271

$19.99

11

White, Reflector

415037900

$22.99

12

Tool Kit | Includes 20 To 28

529000065

$55.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

17

Was 412500100 Rope-Starter

219704403

$158.99

18

Starter Grip

529000060

$14.15

19

Spacing Tool

520001142

$10.52

20

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

21

Tool Kit Rack

520000894

$14.99

22

Latch

520000528

$7.69

23

LH WARNING DECAL, SECURITY - Call your local BRP dealership

516005043

Unavailable

24

RH Warning Decal, Security

516005044

Unavailable

25

Deep Black, Reflector Support

520000871

$5.79

26

Tie Rap 371 mm

293750018

$0.56

27

Support

511000768

$31.99

28

Hitch Plate Welded

511000521

$16.33

29

Lock Pin

511001451

$9.49

30

Cotter Pin

371800200

$0.53

31

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

32

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

33

Hex. Flange Elastic Nut M8

233281414

$1.47

34

Support

511000554

$19.49

35

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

36

Lock Pin

511001451

$9.49

37

Cotter Pin

371800200

$0.53

38

Hair Pin

114045200

$11.11

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Pop Rivet 5/32” | Model Europe

390404300

$0.35

41

Pin

511000555

$19.49

42

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

43

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

44

Hex. Flange Elastic Nut M8

233281414

$1.47

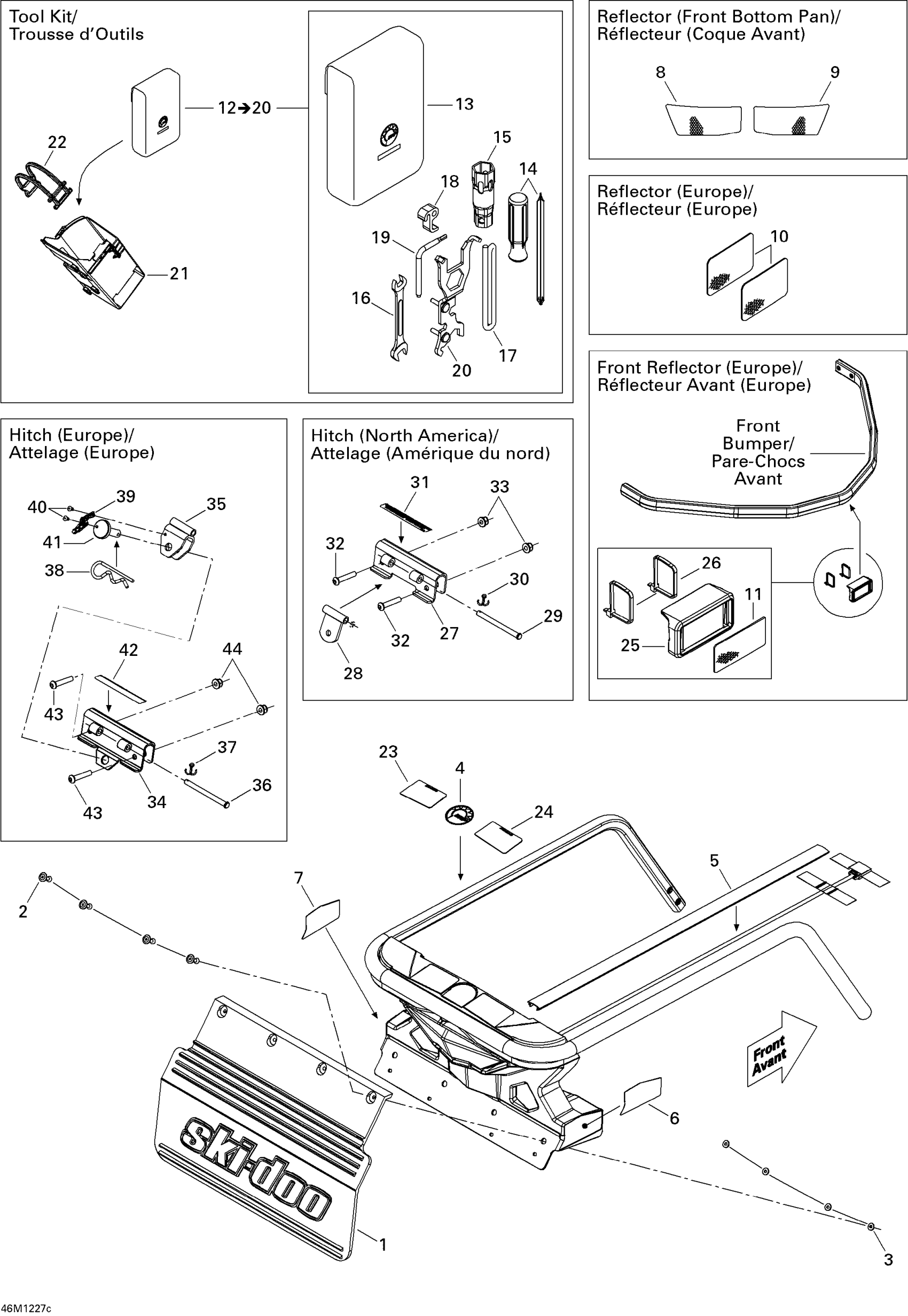

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2012 09- Utilities LT Diagram

Snow Guard

Pop Rivet 3/16"

Washer

BRP Logo 48 mm

Radiator Trim

Red, RH Rear Reflector

Yellow, RH Rear Reflector

Red, LH Rear Reflector

Yellow, LH Rear Reflector

Yellow, RH Front Reflector

Yellow, LH Front Reflector

Amber, Reflector

White, Reflector

Tool Kit | Includes 20 To 28

Not Available As Spare Part - Friction Washer

SCREW DRIVER - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

FORK WRENCH, 10/13 MM - Call your local BRP dealership

Was 412500100 Rope-Starter

Starter Grip

Spacing Tool

WRENCH SUSPENSION - Call your local BRP dealership

Tool Kit Rack

Latch

LH WARNING DECAL, SECURITY - Call your local BRP dealership

RH Warning Decal, Security

Deep Black, Reflector Support

Tie Rap 371 mm

Support

Hitch Plate Welded

Lock Pin

Cotter Pin

WARNING DECAL, SECURITY - Call your local BRP dealership

Socket Head Screw M8 X 45 | Traxter XT.

Hex. Flange Elastic Nut M8

Support

HITCH PLATE - Call your local BRP dealership

Lock Pin

Cotter Pin

Hair Pin

Not Available As Spare Part - Friction Washer

Pop Rivet 5/32” | Model Europe

Pin

WARNING DECAL, SECURITY - Call your local BRP dealership

Socket Head Screw M8 X 45 | Traxter XT.

Hex. Flange Elastic Nut M8
