Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

2

Elastic Stop Nut M6

232561414

$0.55

3

Hex. Flange Nut M6

233061414

$1.68

4

Panel Nut M5 X 0.8

250000958

$4.23

5

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

6

Tork Screw M6 X 16

250000534

$2.11

7

Torx Screw M8 X 55

250000535

$3.17

8

Tork Screw M6 X 18

250000536

$2.11

10

Flat Washer

250200039

$0.74

15

Hemlock Rivet, 6.5 mm

293150096

$3.27

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

32

Ornit Rivet 6,5 X 14.5

293150266

$2.40

36

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Hemlock Rivet, 6.4 mm

293150174

$7.86

42

Interlock Rivet 3/16''

293150194

$1.04

44

Full Moon Dart 5 mm

293730042

$2.21

45

Black, Plug

293730052

$9.19

46

Pop Rivet 3/16"

390402300

$0.75

67

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

67

LH Roller | Includes 10bd to 10be

518325160

$78.99

69

RH Reinforcement

518324874

$27.99

69

LH Reinforcement

518324875

$27.99

71

RH Slide Bracket

518325955

$45.99

71

LH Slide Bracket

518325956

$49.99

72

Clear Rear Bumper

518325579

$111.49

73

Rear Cap

518327105

$22.49

75

RH Engine Support

518325559

$19.49

79

RH Deflector, Black Polypropylene

518325782

$13.99

79

LH Deflector, Black Polypropylene

518325783

$13.99

83

Not Available As Spare Part - Friction Washer

Unavailable

85

RH Rear Base

518325973

$21.99

85

LH Rear Base | Includes 10v to 10x

518325974

$21.99

88

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

95

Reinforcement Plate

518326647

$4.69

96

Pulley Support

518328346

$129.99

97

Seal

518326656

$9.19

99

LH Stirup

518326820

$37.99

102

Support

518326960

$12.99

103

U-Attach

518326961

$10.99

106

Attach | Includes 10n to 10p

518326986

$12.99

108a

Full Moon RH Cap

520000711

$8.79

108b

Full Moon LH Cap

520000712

$9.19

5a

Flat Washer

224061201

$1.37

A

FRAME TUNDRA LT - Call your local BRP dealership | LT

415130259

Unavailable

C

Avex Rivet

390909200

$0.30

D

Avex Rivet

390909100

$0.30

E

Stavex Rivet

293150144

$0.82

F

Henrob Rivet

293150146

$2.09

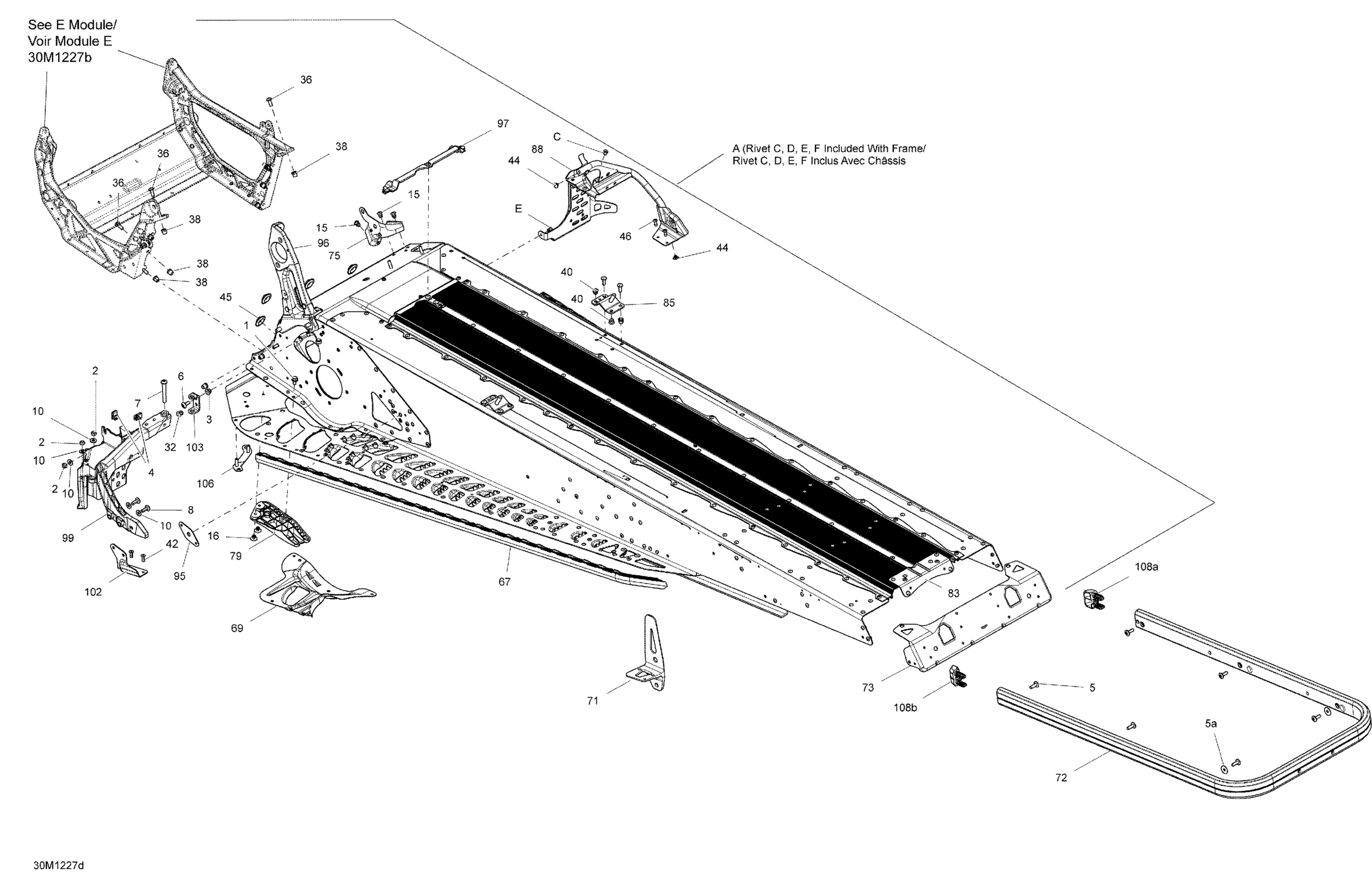

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2012 09- Frame LT 154" Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

Elastic Stop Nut M6

Hex. Flange Nut M6

Panel Nut M5 X 0.8

Torx Screw M6 X 1.0 X 18, Scotch Grip

Tork Screw M6 X 16

Torx Screw M8 X 55

Tork Screw M6 X 18

Flat Washer

Hemlock Rivet, 6.5 mm

Pop Rivet 3/16" | DS 650 X

Ornit Rivet 6,5 X 14.5

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hemlock Rivet, 6.4 mm

Interlock Rivet 3/16''

Full Moon Dart 5 mm

Black, Plug

Pop Rivet 3/16"

RH ROLLER - Call your local BRP dealership

LH Roller | Includes 10bd to 10be

RH Reinforcement

LH Reinforcement

RH Slide Bracket

LH Slide Bracket

Clear Rear Bumper

Rear Cap

RH Engine Support

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Not Available As Spare Part - Friction Washer

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH Stirup | Includes 10aa to 10ab

Reinforcement Plate

Pulley Support

Seal

LH Stirup

Support

U-Attach

Attach | Includes 10n to 10p

Full Moon RH Cap

Full Moon LH Cap

Flat Washer

FRAME TUNDRA LT - Call your local BRP dealership | LT

Avex Rivet

Avex Rivet

Stavex Rivet

Henrob Rivet
