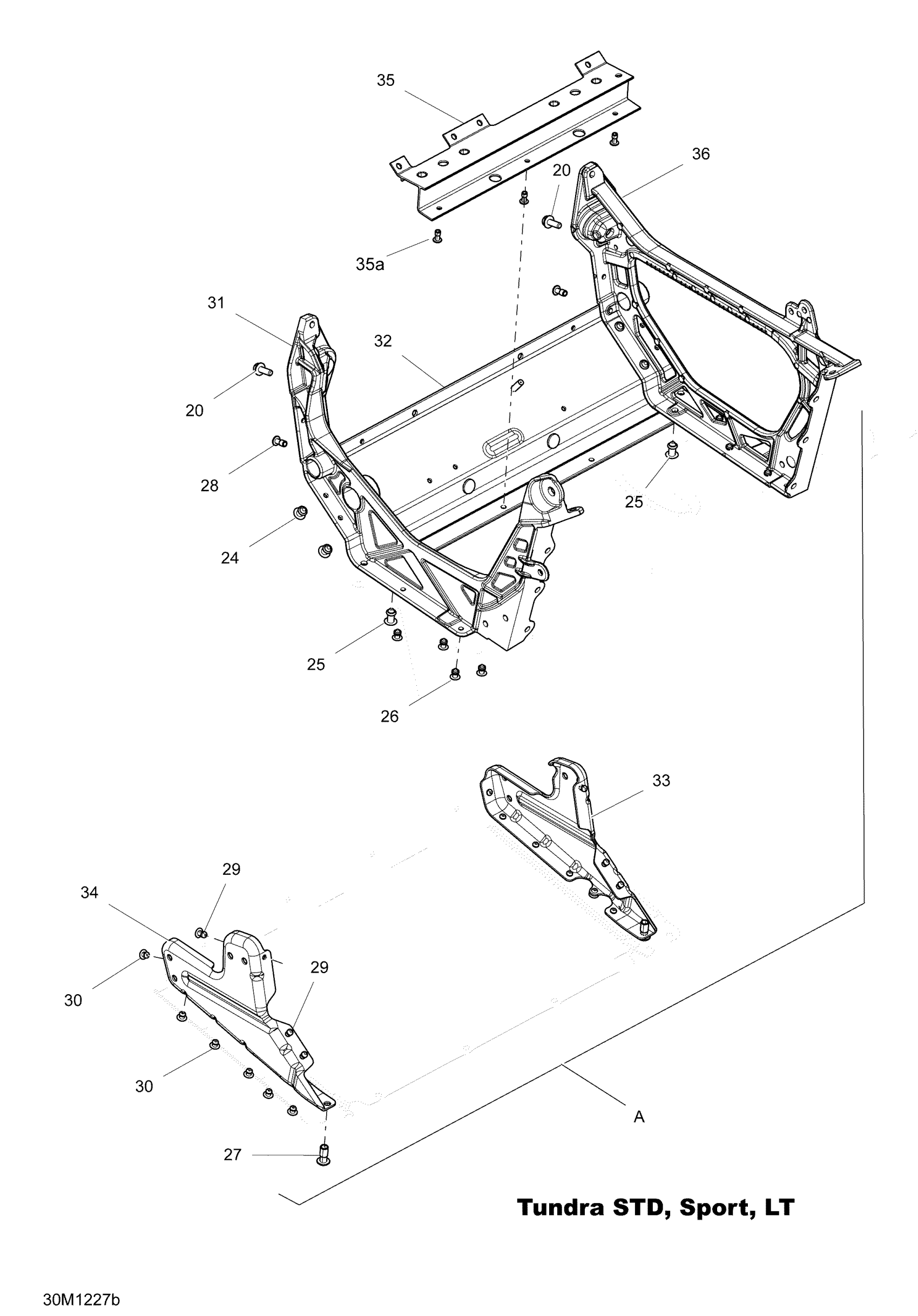

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2012 Frame E Module Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 16

210261650

$1.22

24

Hemlock Rivet, 6.5 mm

293150119

$4.00

25

Hemlock Rivet 6.5 mm

293150120

$7.23

26

Stavex Rivet

293150144

$0.77

27

Monobolt Rivet 6.4

293150182

$2.91

28

Monobolt Rivet, 4.8 mm

293150191

$0.95

29

Avex Rivet

390909100

$0.29

30

Avex Rivet

390909200

$0.29

31

LH Member

518325558

$230.74

32

Front Member | Includes 10as to 10at

518325818

$54.58

33

RH Front Member

518325949

$18.43

34

LH Front Member

518325950

$17.66

35

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

36

RH Member

518326795

$259.97

35a

Monobolt Rivet, 4.8 mm

293150191

$0.95

A

Module E Tundra | Includes 10av to 10bm

518326926

$477.66
