Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

2

Elastic Stop Nut M6

232561414

$0.55

3

Hex. Flange Nut M6

233061414

$1.68

4

Panel Nut M5 X 0.8

250000958

$4.23

5

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

6

Tork Screw M6 X 16

250000534

$2.11

7

Torx Screw M8 X 55

250000535

$3.17

8

Tork Screw M6 X 18

250000536

$2.11

10

Flat Washer

250200039

$0.74

15

Hemlock Rivet, 6.5 mm

293150096

$3.27

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

32

Ornit Rivet 6,5 X 14.5

293150266

$2.40

36

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Hemlock Rivet, 6.4 mm

293150174

$7.86

42

Interlock Rivet 3/16''

293150194

$1.04

44

Full Moon Dart 5 mm

293730042

$2.21

45

Black, Plug

293730052

$9.19

46

Pop Rivet 3/16"

390402300

$0.75

67

RH ROLLER - Call your local BRP dealership

518325377

$69.99

67

LH Roller

518325378

$76.99

69

RH Reinforcement

518324874

$27.99

69

LH Reinforcement

518324875

$27.99

71

RH Bracket | Sport

518328787

$79.99

71

LH Bracket | Sport

518328788

$79.99

72

Clear Rear Bumper

518324980

$99.49

72

Clear Rear Bumper | Sport

518325577

$111.49

73

Rear Cap

518327105

$22.49

75

RH Engine Support

518325559

$19.49

79

RH Deflector, Black Polypropylene

518325782

$13.99

79

LH Deflector, Black Polypropylene

518325783

$13.99

83

Not Available As Spare Part - Friction Washer

Unavailable

85

RH Rear Base

518325973

$21.99

85

LH Rear Base | Includes 10v to 10x

518325974

$21.99

88

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

95

Reinforcement Plate

518326647

$4.69

96

Pulley Support

518328346

$129.99

97

Seal

518326656

$9.19

99

LH Stirup

518326820

$37.99

102

Support

518326960

$12.99

103

U-Attach

518326961

$10.99

106

Attach | Includes 10n to 10p

518326986

$12.99

108

Full Moon Cap

520000567

$10.99

108a

Full Moon RH Cap

520000711

$8.79

108b

Full Moon LH Cap

520000712

$9.19

5a

Flat Washer

224061201

$1.37

A

FRAME TUNDRA 137 - Call your local BRP dealership | Sport

415130258

$3.00

C

Avex Rivet

390909200

$0.30

D

Avex Rivet

390909100

$0.30

E

Stavex Rivet

293150144

$0.82

F

Henrob Rivet

293150146

$2.09

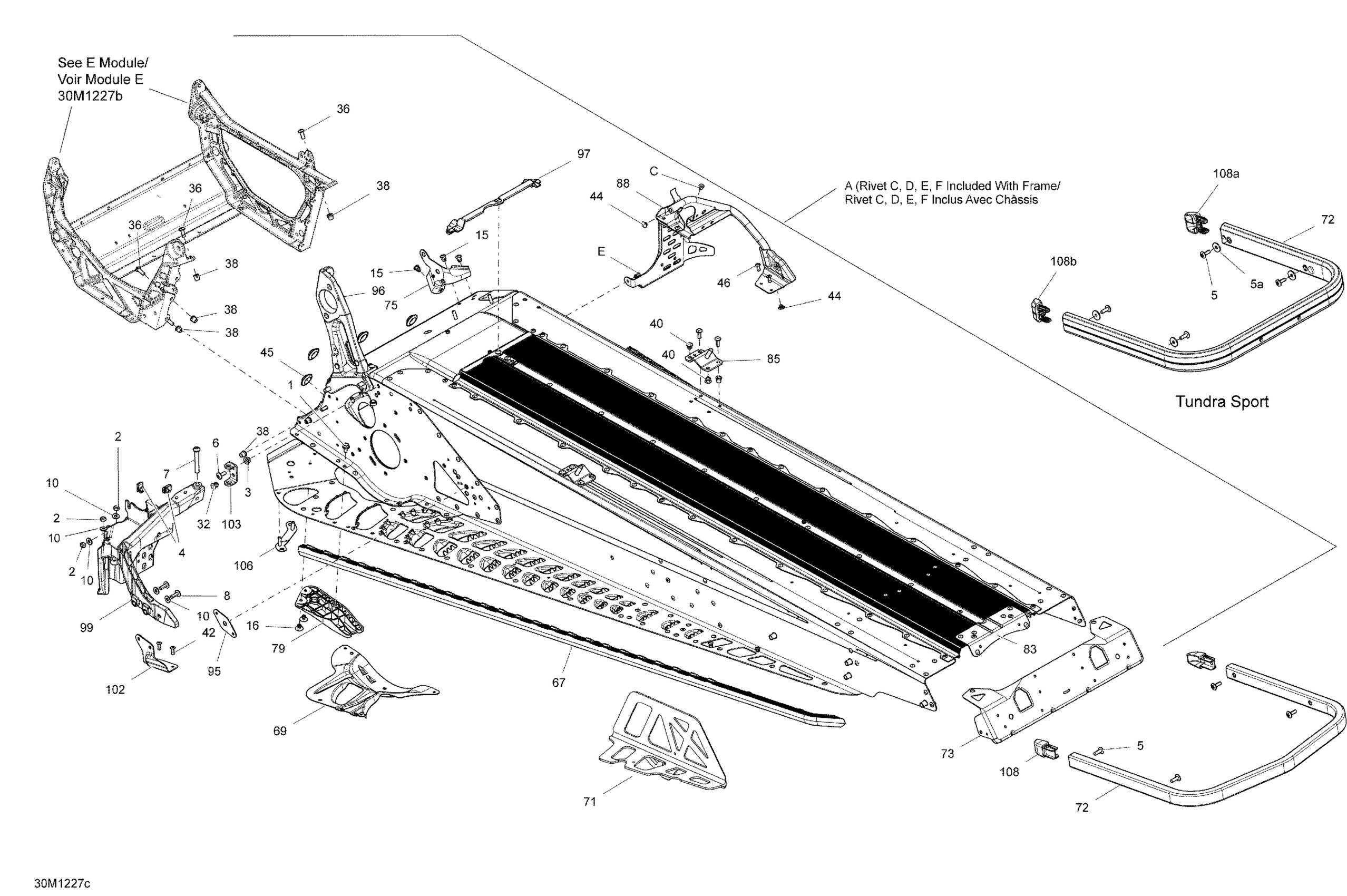

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2012 09- Frame 137" (STD, Sport) Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

Elastic Stop Nut M6

Hex. Flange Nut M6

Panel Nut M5 X 0.8

Torx Screw M6 X 1.0 X 18, Scotch Grip

Tork Screw M6 X 16

Torx Screw M8 X 55

Tork Screw M6 X 18

Flat Washer

Hemlock Rivet, 6.5 mm

Pop Rivet 3/16" | DS 650 X

Ornit Rivet 6,5 X 14.5

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hemlock Rivet, 6.4 mm

Interlock Rivet 3/16''

Full Moon Dart 5 mm

Black, Plug

Pop Rivet 3/16"

RH ROLLER - Call your local BRP dealership

LH Roller

RH Reinforcement

LH Reinforcement

RH Bracket | Sport

LH Bracket | Sport

Clear Rear Bumper

Clear Rear Bumper | Sport

Rear Cap

RH Engine Support

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Not Available As Spare Part - Friction Washer

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH Stirup | Includes 10aa to 10ab

Reinforcement Plate

Pulley Support

Seal

LH Stirup

Support

U-Attach

Attach | Includes 10n to 10p

Full Moon Cap

Full Moon RH Cap

Full Moon LH Cap

Flat Washer

FRAME TUNDRA 137 - Call your local BRP dealership | Sport

Avex Rivet

Avex Rivet

Stavex Rivet

Henrob Rivet
