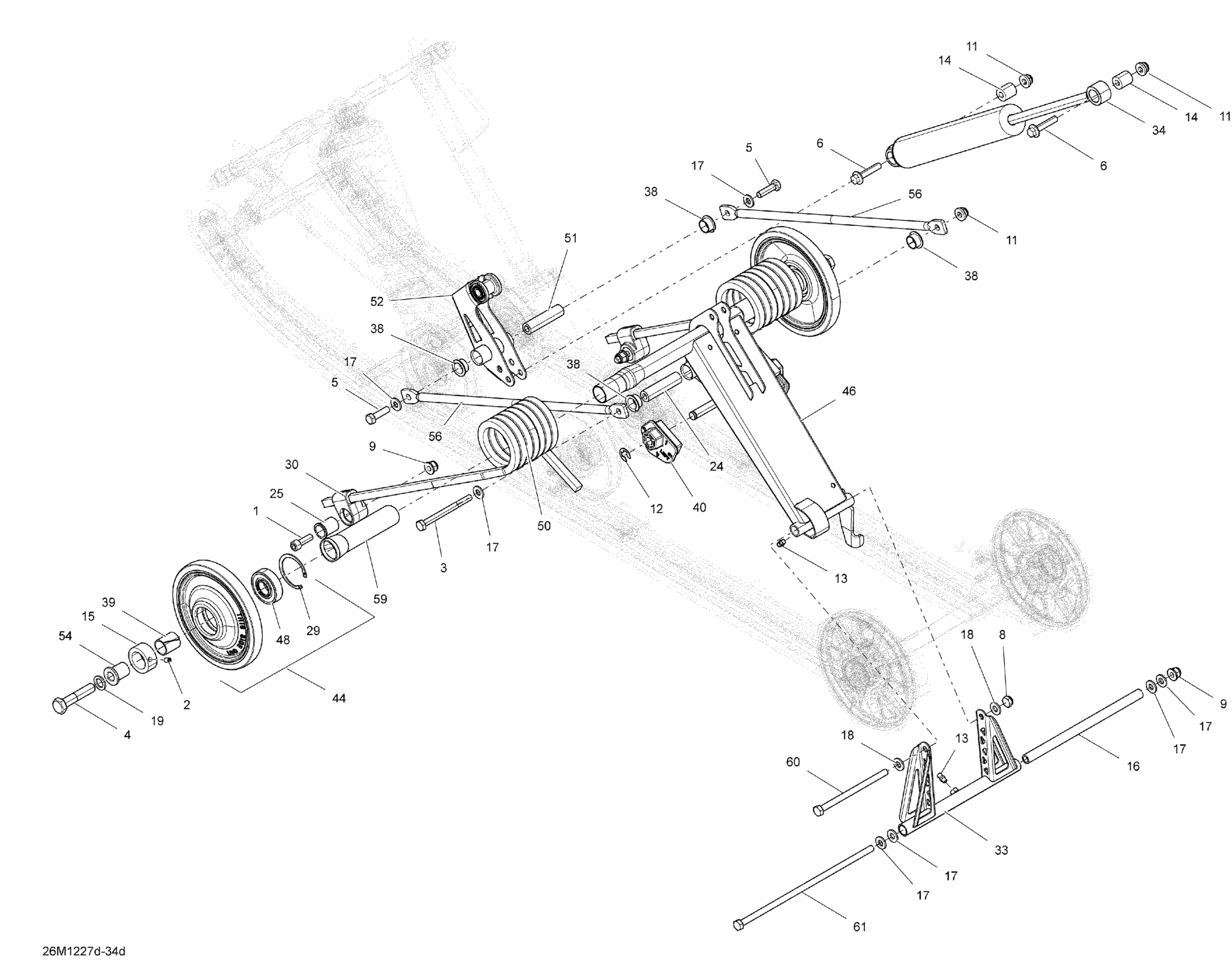

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2012 Rear Suspension Rear Arm(STD,Sport) Diagram

#

Description
Price

1

Socket Head Screw M8 X 25

205082544

$0.92

2

Socket Set Screw M6 X 8

206260844

$1.25

3

Hex. Screw M8 X 90

207089044

$2.82

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

6

Hex. Flange Screw M8 X 40

207684044

$1.25

8

Hex. Elastic Stop Nut M8

232581414

$0.47

9

Elastic Flange Nut M8

250100131

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

E-Circlip

293370013

$0.62

13

Grease Fitting

408200700

$2.80

14

Bushing

414936000

$11.55

15

Retaining Ring

503168800

$12.65

16

Pivot Arm Axle

503189156

$20.74

17

Washer

503192494

$3.11

18

Washer

503189157

$3.20

19

Washer

503189276

$3.20

24

Axle Bar (Long)

503190643

$15.35

25

Spring Support Kit

861805547

$8.14

29

Retaining Ring

415129371

$8.92

30

Spring Support Kit

861805547

$8.14

33

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

34

Rear Shock Seal HPG

503193187

$238.43

38

Swivel Bushing

503191555

$5.71

39

Extended Bushing

503191556

$5.71

40

LH Cam Adjuster

503191565

$13.95

40

RH Cam Adjuster

503191566

$13.95

44

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

46

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$96.89

48

Ball Bearing

503193548

$16.89

50

LH Spring

503192081

$66.89

50

RH Spring

503192080

$66.89

51

BAR AXLE - Call your local BRP dealership

503192139

Unavailable

52

Rocker

503192211

$78.43

54

BUSHING - Call your local BRP dealership

503192223

Unavailable

56

Linkage Rod

503192255

$41.51

59

Bushing

572080700

$15.26

60

Bolt M8, Short

732601197

$15.06

61

Bolt M8 X 248mm

503192440

$29.97
