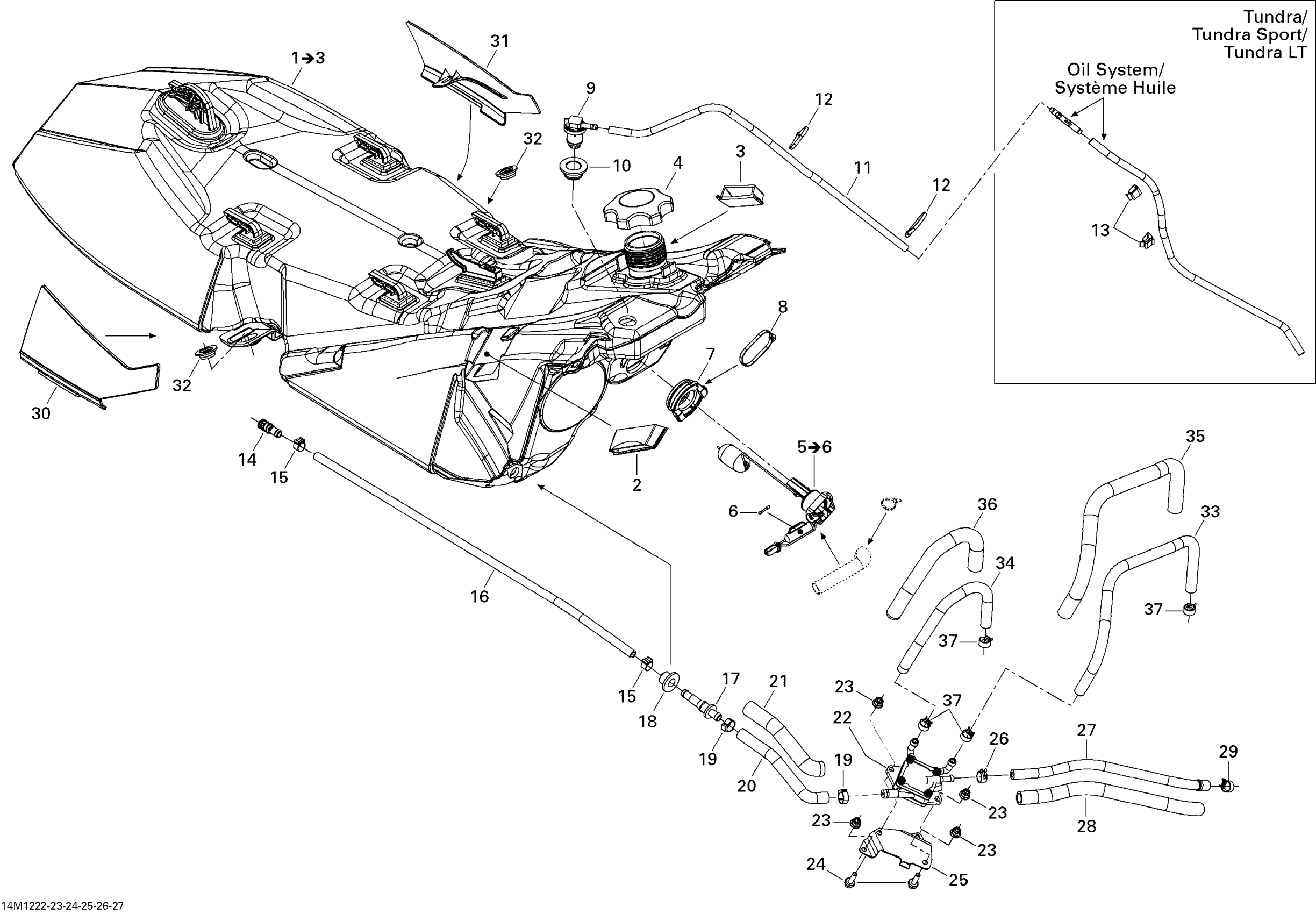

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2012 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033695

$304.45

2

RH Panel Clip

513033471

$5.36

3

LH Panel Clip

513033472

$5.36

4

Fuel Tank Cap

513033025

$22.36

5

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

6

Fuse, 0.5 Ampère

710001995

$7.25

7

Grommet

513033606

$17.88

8

Tie Wrap 368 mm

293750008

$0.97

9

Check Valve

513033842

$32.81

10

Grommet

513033596

$17.88

11

Polyurethane Hose 10000Mm Long

219704410

$52.96

12

Tie-Rap 180 mm

414115200

$0.10

13

Clip

414227300

$1.40

14

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

15

Norma Spring Clamp

513033010

$8.42

16

Polyurethane Hose 1000Mm Long

219704391

Unavailable

17

Male Connector

414872700

Unavailable

18

Grommet

513033435

$4.28

19

Crimp Clamp

293650053

$2.78

20

Formed Hose

513033499

$28.33

21

Tubing 16 Mm 1000Mm Long

219704408

$7.15

22

Fuel Pump

403901813

$84.99

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

24

Hex. Flange Screw M6 X 20

207662044

$1.91

25

Pump Bracket

513033543

$17.88

26

Spring Clamp

414415200

$0.81

27

Formed Hose

513033553

$23.10

28

Tubing 16 Mm 1000Mm Long

219704408

$7.15

29

Universal Spring Clamp

513033029

$4.96

30

RH Cap

513033418

$12.24

31

LH Cap

513033419

$12.24

32

Shoulder Bushing

513033326

$12.24

33

Hose 3000Mm Long

219704612

$77.58

34

Hose 3000Mm Long

219704612

$77.58

35

Tubing 16 Mm 1000Mm Long

219704408

$7.15

36

Tubing 16 Mm 1000Mm Long

219704408

$7.15

37

Universal Spring Clamp

513033029

$4.96
