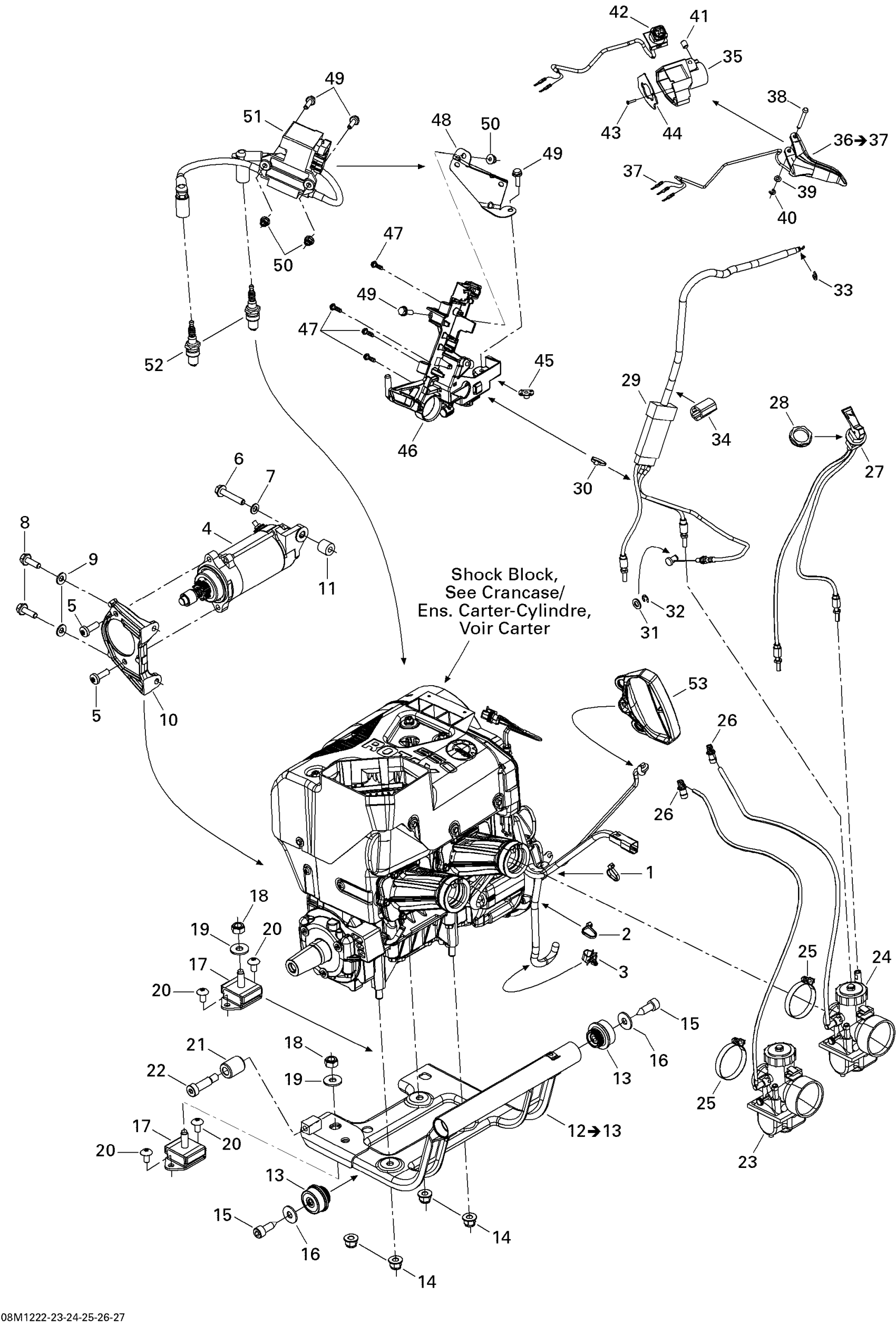

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2012 Engine Sport, LT Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

2

Tie-Rap 180 mm

414115200

$0.11

3

Tie Rap Mount (screwable)

515176795

$5.39

4

Starter

515178473

$319.49

5

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

6

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

7

Flat Washer With Teflon 8 mm

250200008

$3.80

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

9

Conical Spring Washer M8

234281474

$1.48

10

Support

512060656

$58.49

11

Spacer

515176597

$15.28

12

Engine Support Ass'y | Includes 1000 to 1000a

512060637

$182.99

13

Rubber Mount

512059691

$47.99

14

Hex. Flange Elastic Nut M10

233201414

$1.58

15

Screw M10 X 30

250000094

$24.49

16

Flat Washer M10 | 4X4

250200014

$1.49

17

Rubber Mount

512060564

$42.99

18

Elastic Stop Nut M10

232500416

$1.90

19

Flat Washer M10 | 4X4

250200014

$1.49

20

Torx Truss Screw M8 X 16

250000746

$3.38

21

Stopper

512060395

$18.49

22

Socket Head Screw, Scotch Grip

250000463

$7.51

23

Carburetor VM30-219, PTO

403138814

$312.49

24

Carburetor VM30-218, MAG

403138813

$322.49

25

Gemi Clamp | Not Shown

512059834

$11.60

26

Male Connector

414814100

$2.22

27

Choke Cable

512060676

$95.49

28

Plastic Nut

512060671

$1.01

29

Throttle Cable

512060885

$78.49

30

Tie Wrap 142 mm

293750002

$1.25

31

Flat Washer 8 mm, Nylon

234081100

$1.39

32

Circlip

414753500

$0.71

33

Circlip

414274500

$0.90

34

Protector

512060313

$10.33

35

Throttle Housing

512060603

$12.49

36

Handle Ass'y | Includes 3820 to 3820a

512061251

$95.99

37

Male Terminal

515175232

$1.58

38

Lever Pin

414438700

$11.64

39

Flat Washer M5, Stainless

234051600

$0.77

40

Circlip

293370050

$0.46

41

Socket Set Screw M8 X 10

414440800

$4.12

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

43

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

44

Plate

512060390

$10.33

45

Nut Welded, M6

293100003

$9.12

46

Coils Support

512060924

$10.33

47

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

48

Coils Support

512060460

$19.49

49

Hex. Flange Screw M6 X 20

207662044

$2.00

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

51

Calibrated Module

512060324

$569.99

52

Spark Plug NGK BR9ECS-5

512059552

$10.59

53

Starter Grip

512060136

$14.83
