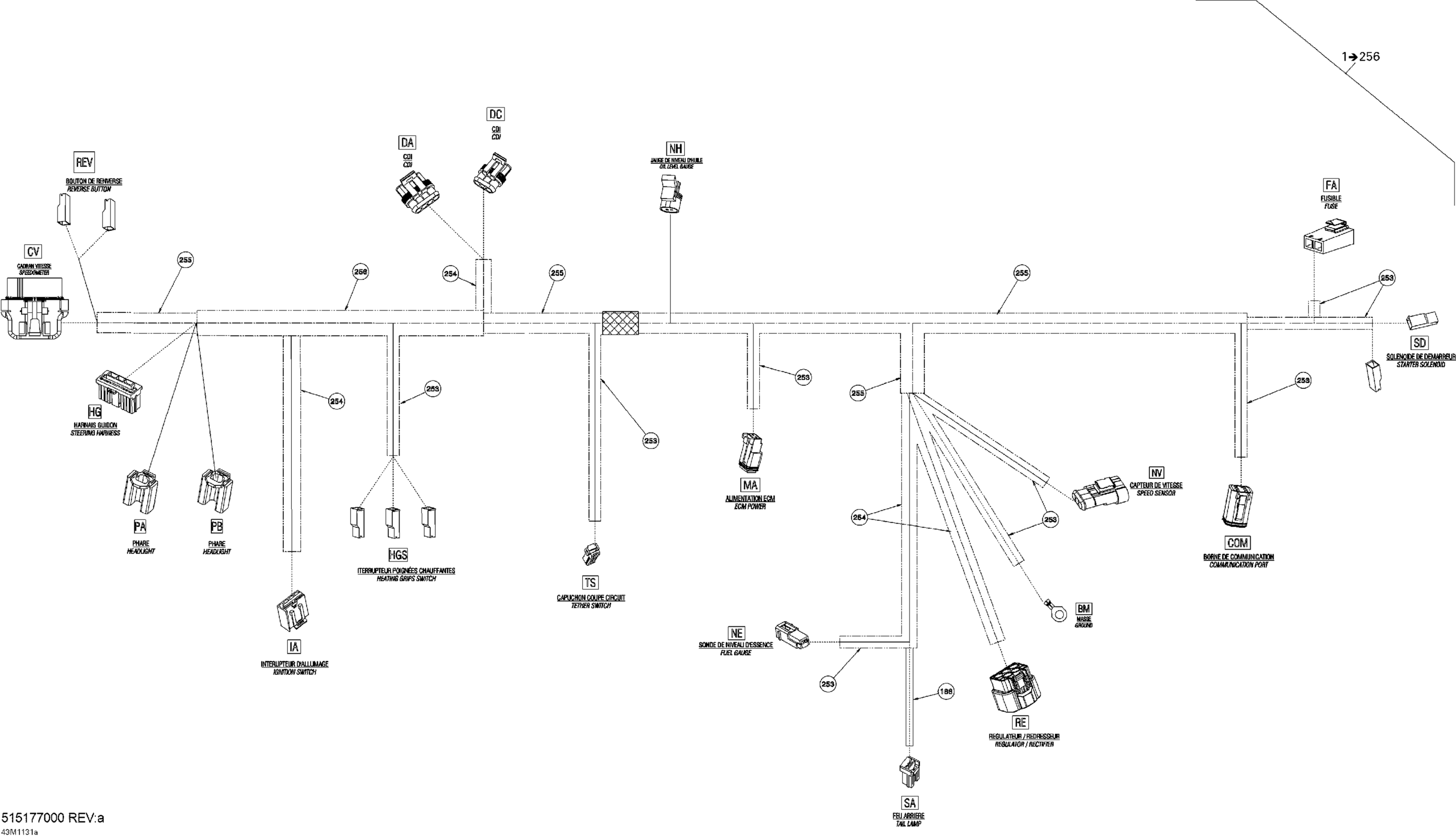

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 Electrical Harness STD Diagram

#

Description
Price

1

MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 256

515177000

Unavailable

BM

Open Barrel

278000992

$2.06

COM

Male Housing, 6 Circuits

515175673

$12.66

COM

Male Wedge, 6 Circuits

515175678

$4.96

COM

Sealing Cap

293000052

$2.93

COM

Female Terminal

278000632

$1.94

CV

Female Housing, 24 Circuits

515175801

$8.73

CV

Retainer Block

515175802

$10.34

CV

Plug

515175812

$1.96

CV

Female Housing

710000399

$13.60

CV

Wire Seal

515175803

$2.76

CV

Female Terminal

515175806

$0.93

CV

Female Terminal

710001131

$6.79

DA

Female Housing, 4 Circuits

409209700

$14.90

DA

Wire Seal

515176621

$6.79

DA

Female Terminal

710001340

$4.96

DC

Female Housing, 3 Circuits

409209600

$34.30

DC

Wire Seal

278001013

$3.12

DC

Female Terminal

278001014

$3.12

FA

Clip

710000992

$3.88

FA

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

FA

Fuse Holder

409004000

$6.79

FA

Female Terminal

409004200

$4.28

HG

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

HG

Female Terminal

515175282

$6.24

HG

Female Terminal

515175231

$4.00

HGS

Female Terminal Housing, 1 Circuit

409010400

$7.25

HGS

Female Terminal

409010100

$5.30

IA

Female Terminal Housing, 4 Circuits

710000272

$9.84

IA

Lock, 4 Circuits

710000273

$8.72

IA

Female Terminal

710000274

$8.72

MA

Female Terminal Housing, 2 Circuits

515175670

$7.61

MA

Female Lock, 2 Circuits

515175675

$4.28

MA

Female Terminal

278000632

$1.94

NE

Male Terminal Housing, 2 Circuits

515175654

$7.25

NE

Male Terminal

515175232

$1.45

NH

Male Connector, 2 Circuits

278001113

$14.52

NH

Female Terminal

710001119

$4.96

NV

Clip

710000992

$3.88

NV

Housing

710000568

$10.51

NV

Wire Seal

515176621

$6.79

NV

Male Terminal

515176164

$6.24

PA

Female Housing

515176908

$11.69

PA

Terminal

515176909

$2.06

PB

Female Housing

515176908

$11.69

PB

Terminal

515176909

$2.06

RE

Connector

515176530

$29.07

RE

Seal

515176594

$6.24

RE

Terminal

515176531

$10.99

REV

Female Terminal Housing, 1 Circuit

409010400

$7.25

REV

Female Terminal

409010100

$5.30

SA

Female Housing, 3 Circuits

515175495

$14.90

SA

Female Terminal

515175231

$4.00

SD

Female Terminal Housing, 1 Circuit

409010400

$7.25

SD

Female Terminal

409010100

$5.30

TS

Female Terminal Housing, 2 Circuits

515176296

$4.96

TS

Female Terminal

515175231

$4.00

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$12.75

254

Was 409901700 Tubing (9 mm)

219704399

$77.58

255

Was 409901800 Tubing (13 mm)

219704400

$10.79

256

Tubing 16 Mm 1000Mm Long

219704408

$7.15
