Partiron

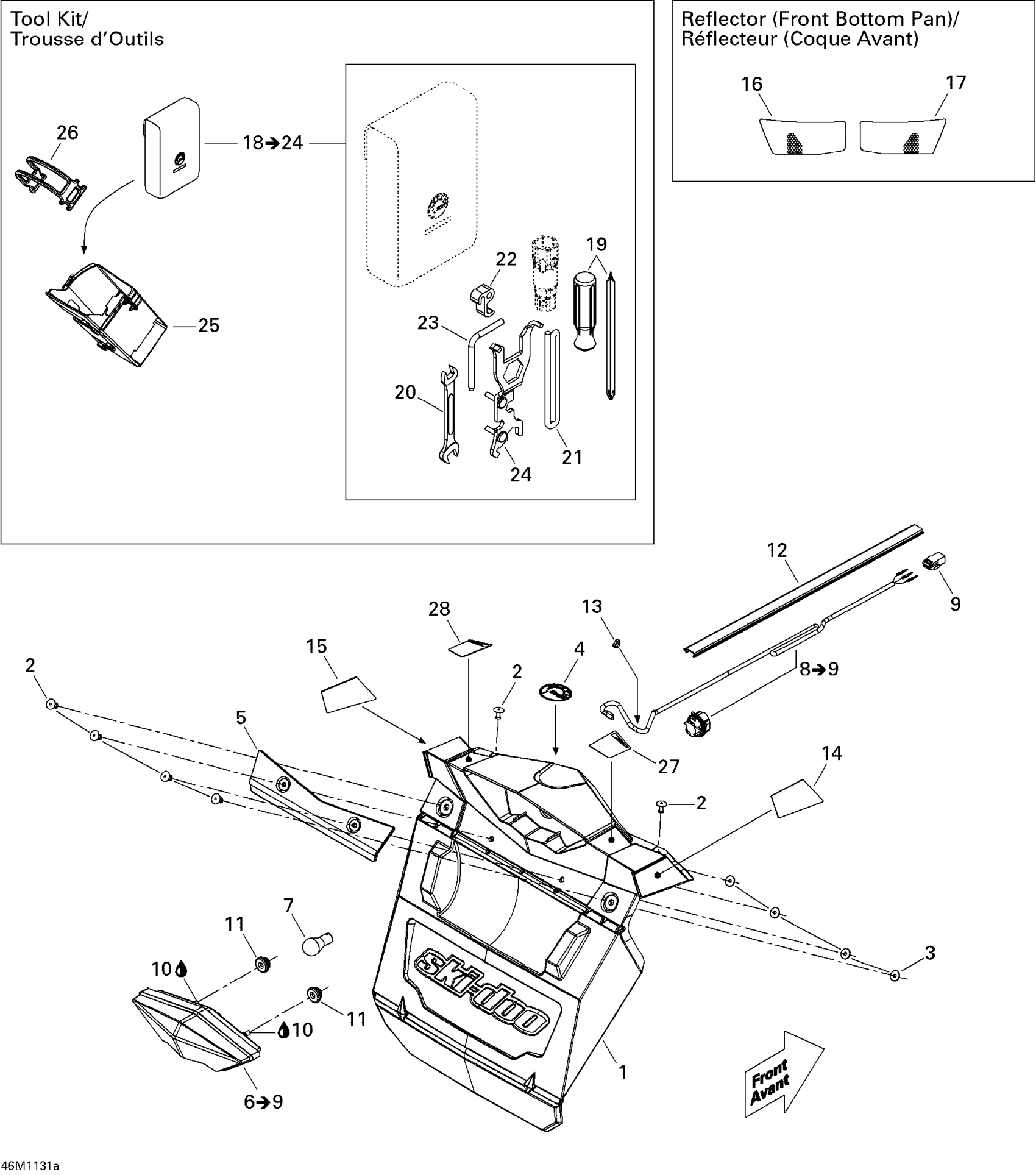

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 Utilities STD Diagram

#

Description
Price

1

Snow Guard

520000702

$63.99

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.19

4

BRP Logo 48 mm

219903305

$19.99

5

Reinforcement

520000751

$20.99

6

Rear Light Ass'y

520000679

$105.99

7

Bulb

520000758

$9.10

8

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

9

Male Housing, 3 Circuits

515175494

$16.18

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Stopper Rubber

705014429

$5.95

12

Radiator Trim

520000829

$21.99

13

Tie Wrap 142 mm

293750002

$1.25

14

Red RH Rear Reflector | North America

520000716

Unavailable

15

Red LH Rear Reflector | North America

520000717

Unavailable

16

Yellow, RH Front Reflector

520000891

$16.99

17

Yellow, LH Front Reflector

520000892

$16.99

18

Tool Kit | Includes 20 To 28

529000065

$55.99

19

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

20

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

21

Was 412500100 Rope-Starter

219704403

$158.99

22

Starter Grip

529000060

$14.15

23

SPACING TOOL - Call your local BRP dealership

520001028

Unavailable

24

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

25

Tool Kit Rack

520000894

$14.99

26

Latch

520000528

$7.69

27

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

28

Warning Decal, Safety

516005058

Unavailable
