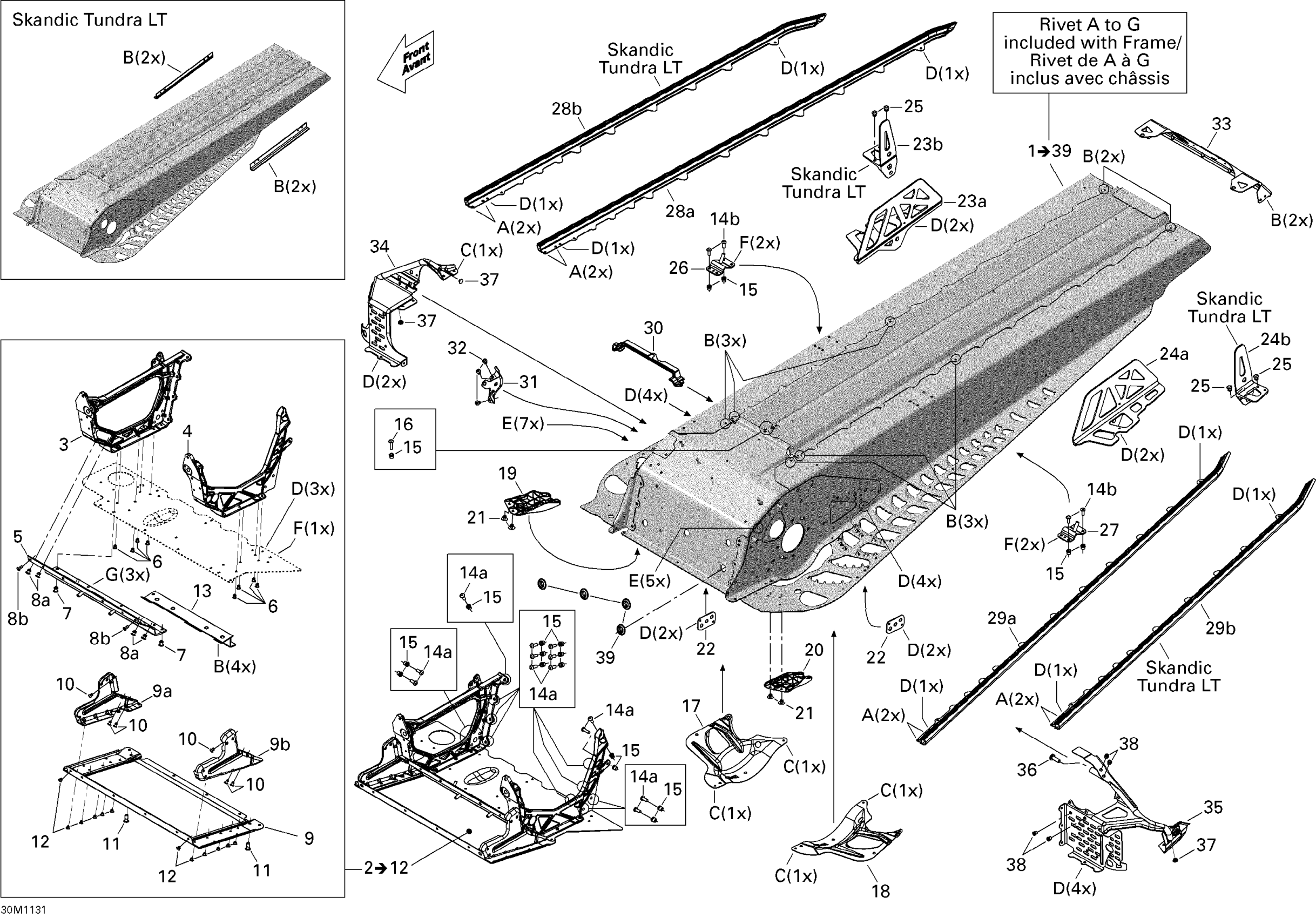

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 Frame LT Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

1

FRAME TUNDRA LT - Call your local BRP dealership | LT

415130259

Unavailable

2

Module E Tundra | Includes 10av to 10bm

518326926

$463.40

3

RH Member

518326795

$252.21

4

LH Member

518325558

$223.85

5

Front Member | Includes 10as to 10at

518325818

$52.96

6

Stavex Rivet

293150144

$0.75

7

Hemlock Rivet 6.5 mm

293150120

$7.01

8a

Hemlock Rivet, 6.5 mm

293150119

$3.88

8b

Monobolt Rivet, 4.8 mm

293150191

$0.93

9

Front Bottom Plate

518325951

$29.07

9a

RH Front Member

518325949

$17.88

9b

LH Front Member

518325950

$17.13

10

Avex Rivet

390909100

$0.28

11

Monobolt Rivet 6.4

293150182

$2.82

12

Avex Rivet

390909200

$0.28

13

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

14a

Hex. Flange Screw M6 X 20

207662044

$1.91

14b

Hex. Flange Screw M6 X 16

207661644

$0.70

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

16

Hex. Flange Screw M6 X 20

207662044

$1.91

17

RH Reinforcement

518324874

$24.60

18

LH Reinforcement

518324875

$24.60

19

RH Deflector, Black Polypropylene

518325782

$11.42

20

LH Deflector, Black Polypropylene

518325783

$11.42

21

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

22

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

23a

Not Available As Spare Parts

XXX

Unavailable

23b

RH Slide Bracket

518325955

Unavailable

24a

Not Available As Spare Parts

XXX

Unavailable

24b

LH Slide Bracket

518325956

$44.75

25

Ornit Rivet 6,5 X 14.5

293150266

$1.88

26

RH Rear Base

518325973

$17.88

27

LH Rear Base | Includes 10v to 10x

518325974

$17.88

28a

Not Available As Spare Parts

XXX

Unavailable

28b

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

29a

Not Available As Spare Parts

XXX

Unavailable

29b

LH Roller | Includes 10bd to 10be

518325160

$76.09

30

Seal

518326656

$8.18

31

RH Engine Support

518325559

$17.88

32

Hemlock Rivet, 6.5 mm

293150096

$3.07

33

Rear Cap

518327105

$20.12

34

RH Stirup | Includes 10aa to 10ab

518328938

$155.94

35

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

36

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

37

Full Moon Dart 5 mm

293730042

$2.06

38

Insert M5 X 0.8

293450268

$1.90

39

Black, Plug

293730052

$6.18

A

Pop Rivet 3/16"

390402300

$0.73

B

Not Available As Spare Parts

XXX

Unavailable

B

Avex Rivet

390909200

$0.28

C

Avex Rivet

390909100

$0.28

D

Not Available As Spare Parts

XXX

Unavailable

D

Stavex Rivet

293150144

$0.75

E

Henrob Rivet

293150146

$1.87

F

Hemlock Rivet, 6.4 mm

293150174

$6.24

G

Monobolt Rivet, 4.8 mm

293150191

$0.93
