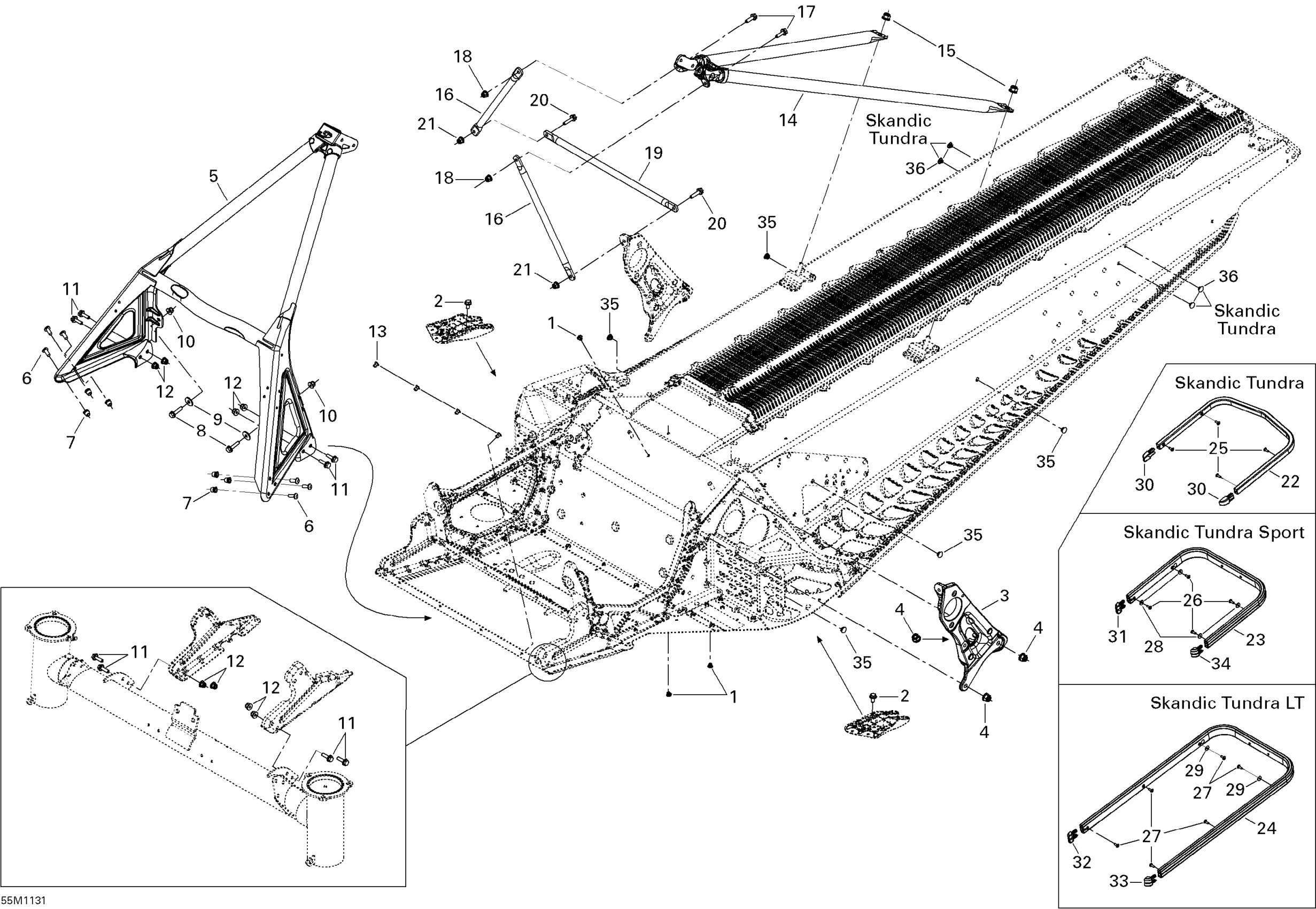

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 09- Frame and Components LT Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402400

$0.35

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

3

Pulley Support

518328346

$129.99

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Front Member, S Module

518326557

$369.99

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Hex. Flange Screw M6 X 25

207662544

$0.64

9

Flat Washer

224061201

$1.37

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Pop Rivet 3/16"

390402200

$0.35

14

Rear Member

518326559

$264.99

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Upper Lateral Column Support

518325114

$22.49

17

Hex. Flange Screw M6 X 20

207662044

$2.00

18

Elastic Flange Nut M6 X 1.0

233261416

$2.11

19

Center Column Support

518325115

$22.49

20

Hex. Flange Screw M6 X 25

207662544

$0.64

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Clear Rear Bumper

518325579

$111.49

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

28

Not Available As Spare Parts

XXX

Unavailable

29

Flat Washer

224061201

$1.37

30

Not Available As Spare Parts

XXX

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Full Moon RH Cap

520000711

$8.79

33

Full Moon LH Cap

520000712

$9.19

34

Not Available As Spare Parts

XXX

Unavailable

35

Full Moon Dart 8 mm

293730041

$2.21

36

Not Available As Spare Parts

XXX

Unavailable
