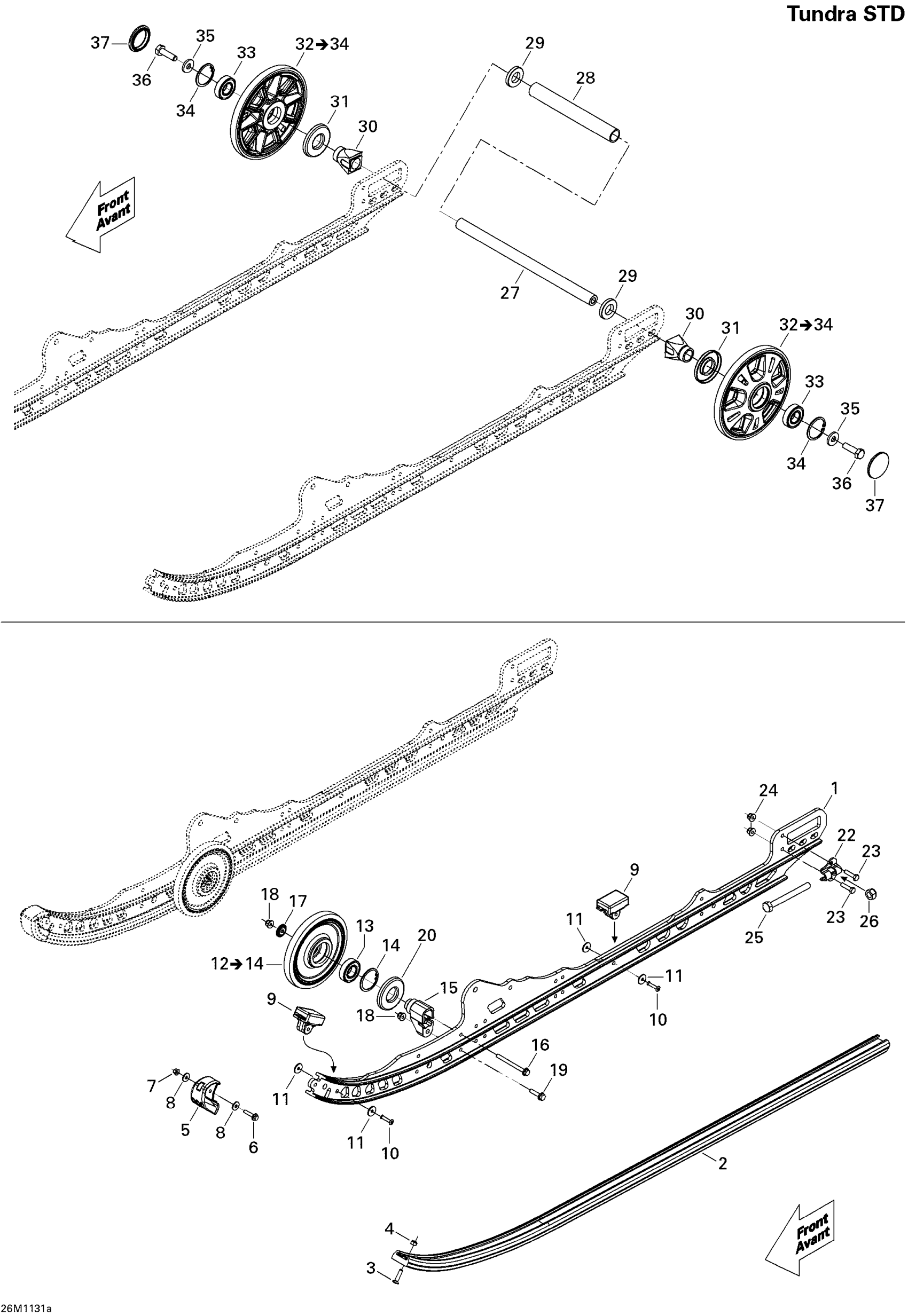

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 08- Rear Suspension STD 137" Diagram

#

Description
Price

1

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192902

Unavailable

2

Slider 137

503191619

$34.99

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

13

Ball Bearing | Package-STD

503190396

$14.30

14

Retaining Ring

415129371

$12.01

15

Casted Support

503193894

$16.49

16

Hex. Flange Screw M6 X 70

250001027

$2.11

17

Wheel Cup M6

503191820

$4.99

18

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

19

Hex. Flange Screw M6 X 25

207662556

$4.44

20

Labyrinth Seal

503190434

$6.09

22

Tensioner

503192583

$8.29

23

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

250000479

Unavailable

24

Elastic Flange Nut M6 X 1.0

233261416

$2.11

25

HEX. SCREW CAP FULL THREAD M10 X 100 - Call your local BRP dealership

250000481

Unavailable

26

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

27

Rear Axle

503190429

$59.99

28

Spacer

503191108

$19.99

29

Washer

503190432

$14.22

30

Rear Wheel Spacer

503190428

$8.14

31

Labyrinth Seal

503190434

$6.09

32

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

33

Ball Bearing | Package-STD

503190396

$14.30

34

Retaining Ring

415129371

$12.01

35

Washer

503190439

$5.93

36

Hex. Screw With Nylon

250000019

$1.69

37

Wheel Cap

570063600

$3.49
