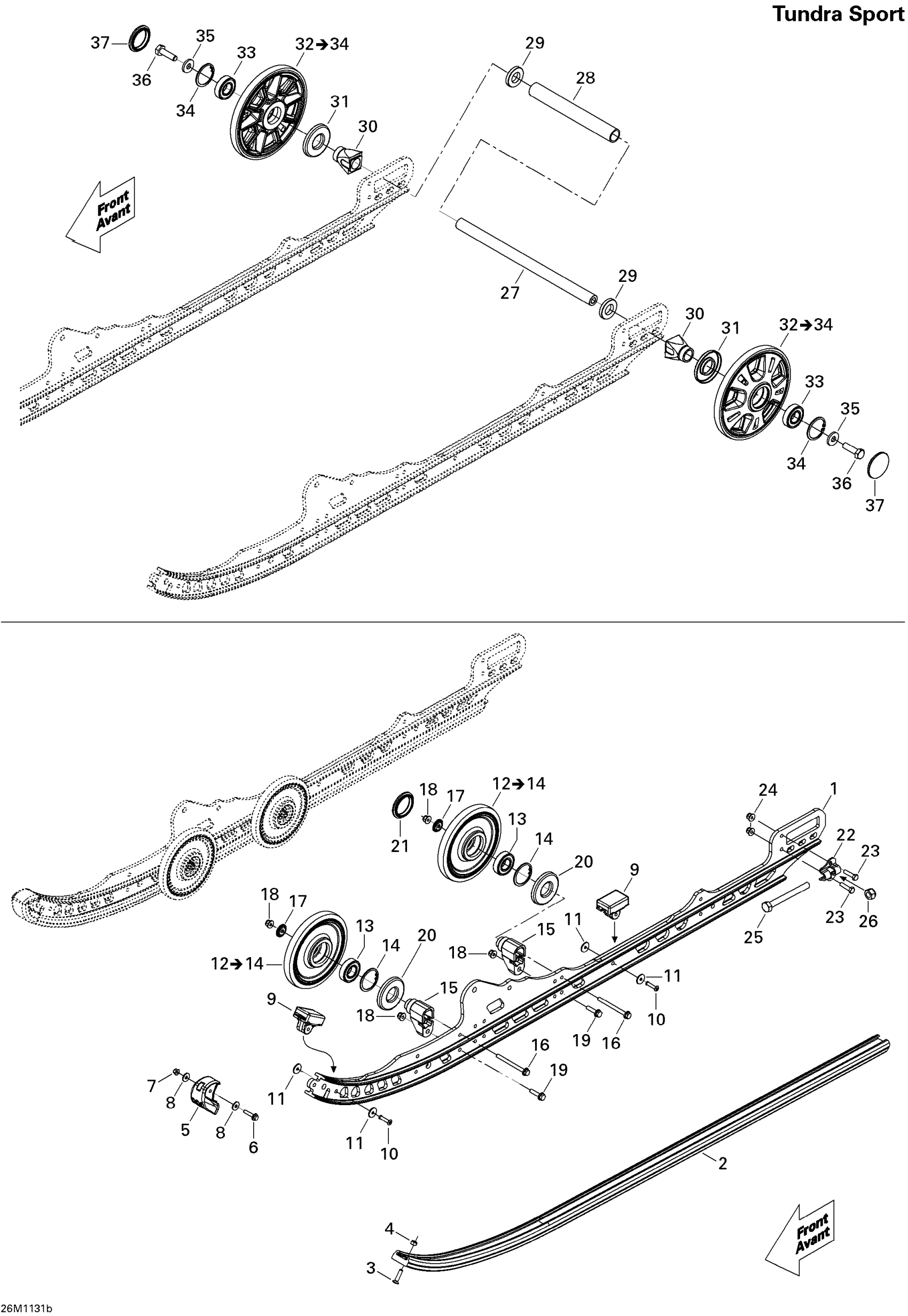

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 Rear Suspension Sport 137" Diagram

#

Description
Price

1

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192902

Unavailable

2

Slider 137

503191619

$32.06

3

Phillips Screw M6 X 25

208562531

$2.00

4

Elastic Stop Nut M6

232561414

$1.78

5

Runner Protector

503191137

$9.90

6

Hex. Flange Screw M5 X 25

207652544

$0.48

7

Hex. Flange Elastic Nut M5

233251414

$1.91

8

Washer | DS 650 X

391301600

$0.46

9

Rubber Stopper

503190576

$9.93

10

Pop Rivet 3/16"

293150142

$2.04

11

Washer

503191273

$1.03

12

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

13

Ball Bearing | Package-STD

503190396

$8.18

14

Retaining Ring

415129371

$8.66

15

Casted Support

503193894

$12.37

16

Hex. Flange Screw M6 X 70

250001027

$2.00

17

Wheel Cup M6

503191820

$4.52

18

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

19

Hex. Flange Screw M6 X 25

207662556

$4.15

20

Labyrinth Seal

503190434

$4.16

21

Wheel Cap

570063600

$3.18

22

Tensioner

503192583

$5.67

23

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

250000479

Unavailable

24

Elastic Flange Nut M6 X 1.0

233261416

$2.00

25

HEX. SCREW CAP FULL THREAD M10 X 100 - Call your local BRP dealership

250000481

Unavailable

26

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

27

Rear Axle

503190429

$58.18

28

Spacer

503191108

$14.90

29

Washer

503190432

$12.15

30

Rear Wheel Spacer

503190428

$5.88

31

Labyrinth Seal

503190434

$4.16

32

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$48.48

33

Ball Bearing | Package-STD

503190396

$8.18

34

Retaining Ring

415129371

$8.66

35

Washer

503190439

$5.64

36

Hex. Screw With Nylon

250000019

$1.63

37

Wheel Cap

570063600

$3.18
